MAIN COMPONENTS
DESCRIPTION
The FCL cassette type fan coil is a
terminal for conditioning air in a
room. The FCL concentrates high
technological and functional features
that make it the ideal means for air
conditioning for all environments. The
supply of conditioned air is distributed
throughout the room; FCL generates
heat if included in a heating system
with boiler or heat pump but may
also be used in the summer as an air
conditioner if the heating system has a
water chiller.
The fan coils are designed for 2 and 4
pipe systems (in the versions with hot
water coil).
The unit is mounted in a suspended-
ceiling with the possibility of sending
conditioned air to adjacent rooms and
introducing external air independently
from unit ventilation.
The FCL units are available in two
fundamental dimensions, which will
be called:
"Module 600" for units that can be
integrated in the standard 600x600mm
suspended ceiling panelling.
"Module 840" for more powerful
versions, dimensioned to be housed
in a compartment measuring
840x840mm.
BASE
The support base is in deep-drawn
galvanised sheet steel,. The following
are fixed to the base: fixing brackets,
coils, motor and fan, condensate
draining pump, attachment plates,
terminal board unit and condensate
drip tray. Using the relevant flange
(accessory) it allows to connect the
ducts to the sides for fresh air to the
room and/or for flow to an adjacent
room.
The units with "Module 600" are built
with a reinforced support structure
with lateral strip in galvanised sheet
steel and heat insulated with internal

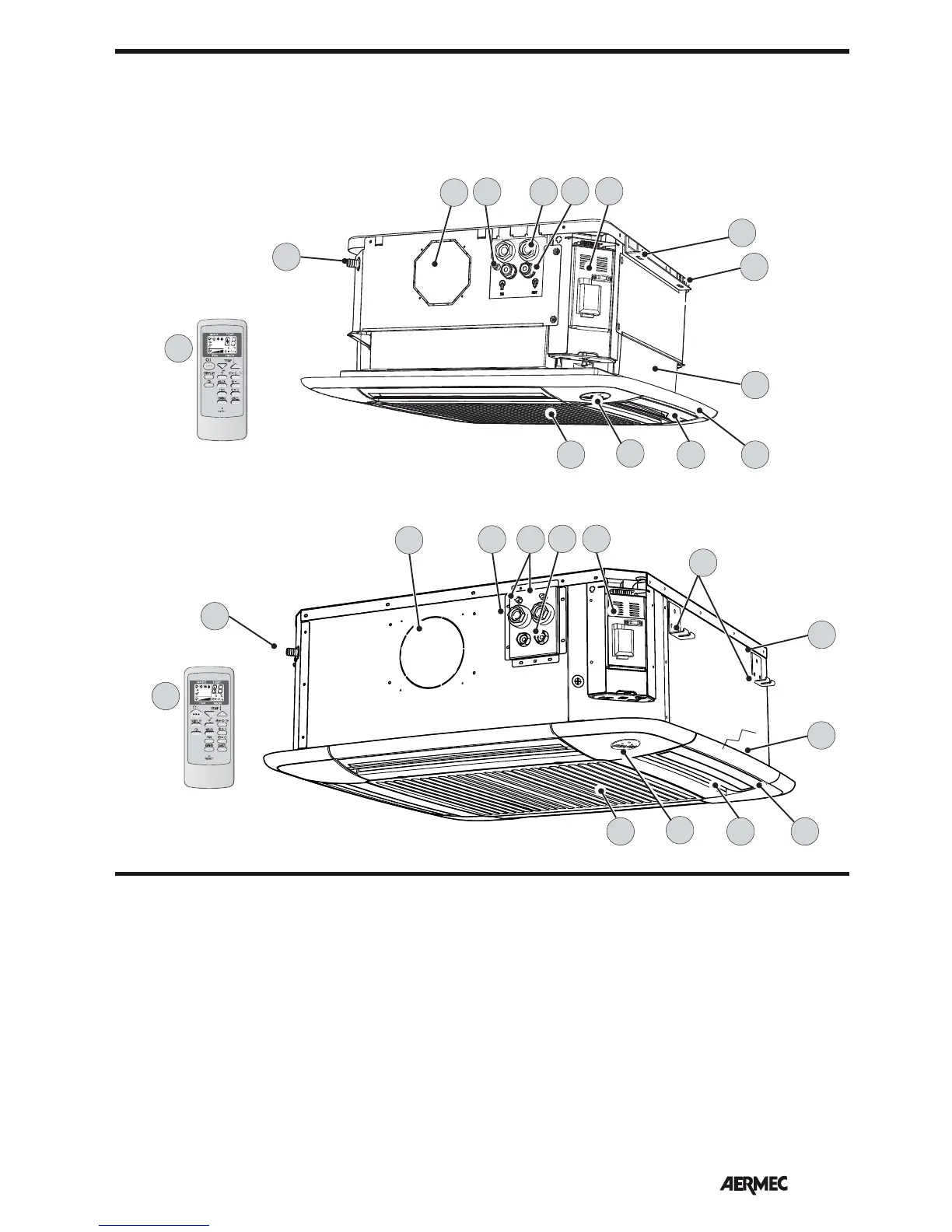

1 Grid with air filter
2 Receiver (GLL_M; GLL_R)
3 Air flow deflector
4 Grid frame
5 Tray
6 Base
7 Fixing brackets
8 Electric box
9 Hydraulic attachments (for 4 pipes only)
10 Hydraulic attachments (2 pipes)
11 Air vent valve
12 Semi-sliced, fitting for air flow to an
adjacent room
13 Condensate drain
14 Remote control (GLL_M; GLL_R)
FCL (Module 600)
GLL 10M
GLL 10R
31 4
5
6
8
11 10
7
13
14
2
12
9
FCL (Module 840)
GLL 20R
31 4
8
10 11
13
14
2
12
9
7
6
5
