5 INTERFACE USE

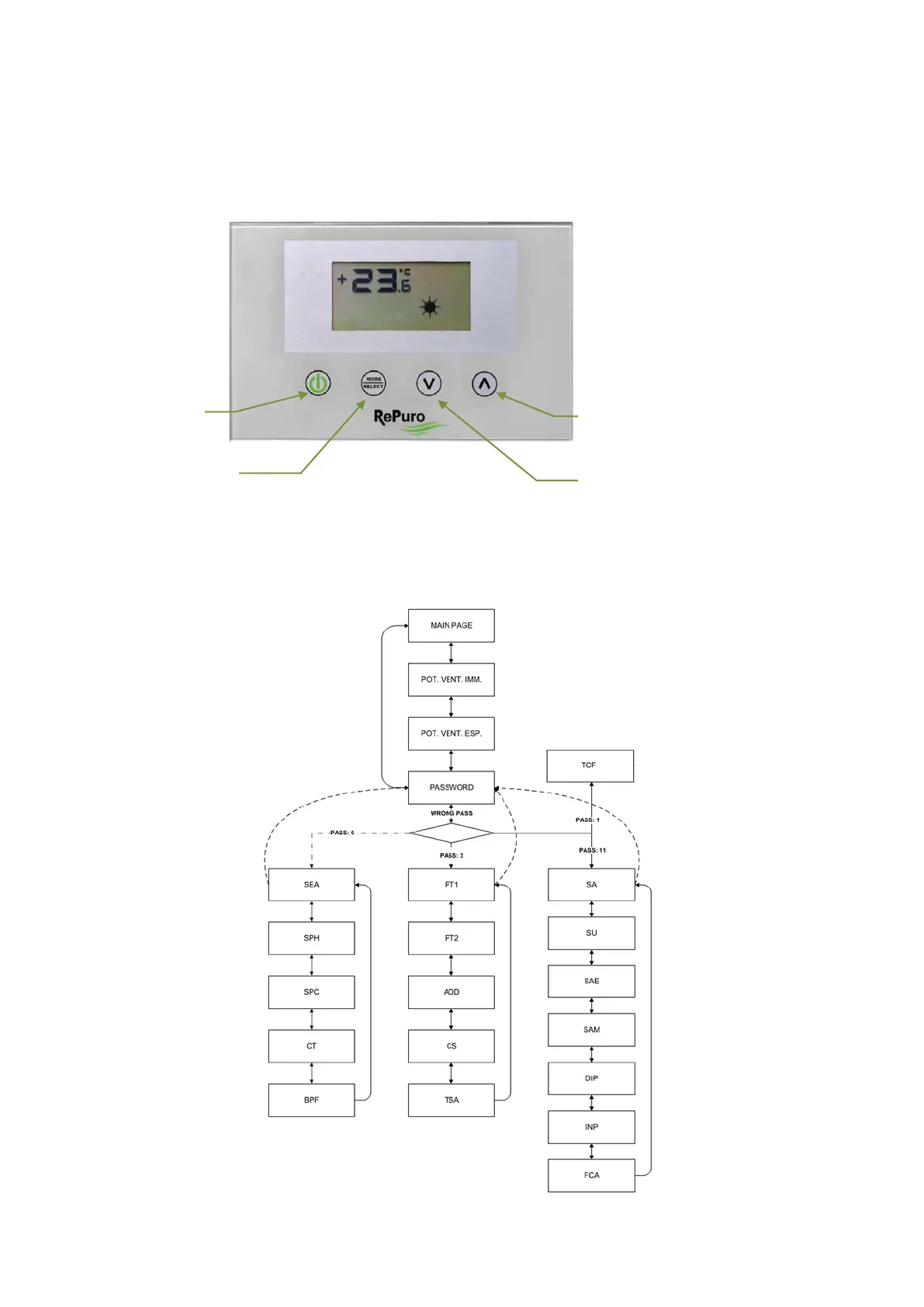

5.1 HARDWARE STRUCTURE

The user interface has a monochromatic display and 4 capacitive keys. From this interface one can:

— Set the functioning mode

— Set the functioning parameters

— View the reading of all the installed probes

— Activate the manual forcing of the electric loads to simplify any troubleshooting

On / Off of the recuperator

Change way

Enable data modification

Confirm data modification

Change page UP

Increment given

Change page DOWN

Decrease given

5.2 SOFTWARE STRUCTURE
