5.3 MAIN PAGE

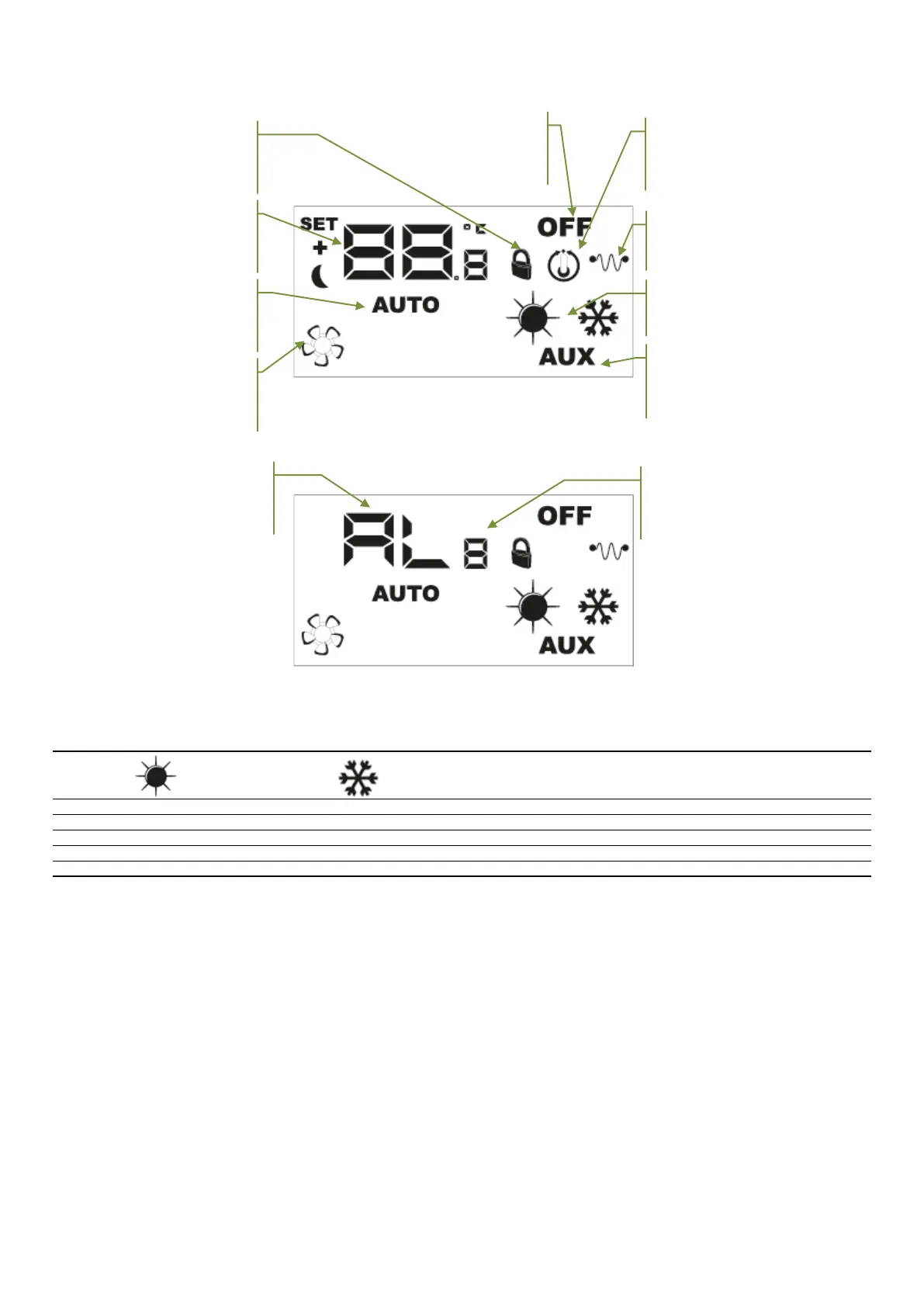

The main page of the user interface provides essential information on the recovery unit functioning. The following images show all the possible displays on the main page.
Temperature detected
by the probe on the interface
Indication of recuperator
off by ON / OFF key
If the icon is on, it means that
we are in the presence of a
supervision system
Icon indicating the
operating season
Icon active when a resistive
electrical load is on
Icon active during manual
operation with enabling of
auxiliary loads
Icon active during room
cleaning operation
Icon that indicates the activation
of the operation of at least one fan
String that identifies the
presence of an alarm in
the system
Existing alarm code
Possible views of the Main Page in the presence of an alarm
VSL valve active indication
(post treatment coil valve)
Possible views of the Main Page
The list of alarms reported by the user interface is indicated in the “Alarms signal” section. Below is a table that identies other possible signals that may appear during normal
functioning:
Meaning of the indication
Fixed No present Winter function
Flashing No present Anti-freeze
Fixed Flashing Winter function + open freecooling bypass
No present Fixed Summer function
No present Flashing Summer function + open freecooling bypass
