AERMEC NRB 2000 - Minimum Technical Spaces

12

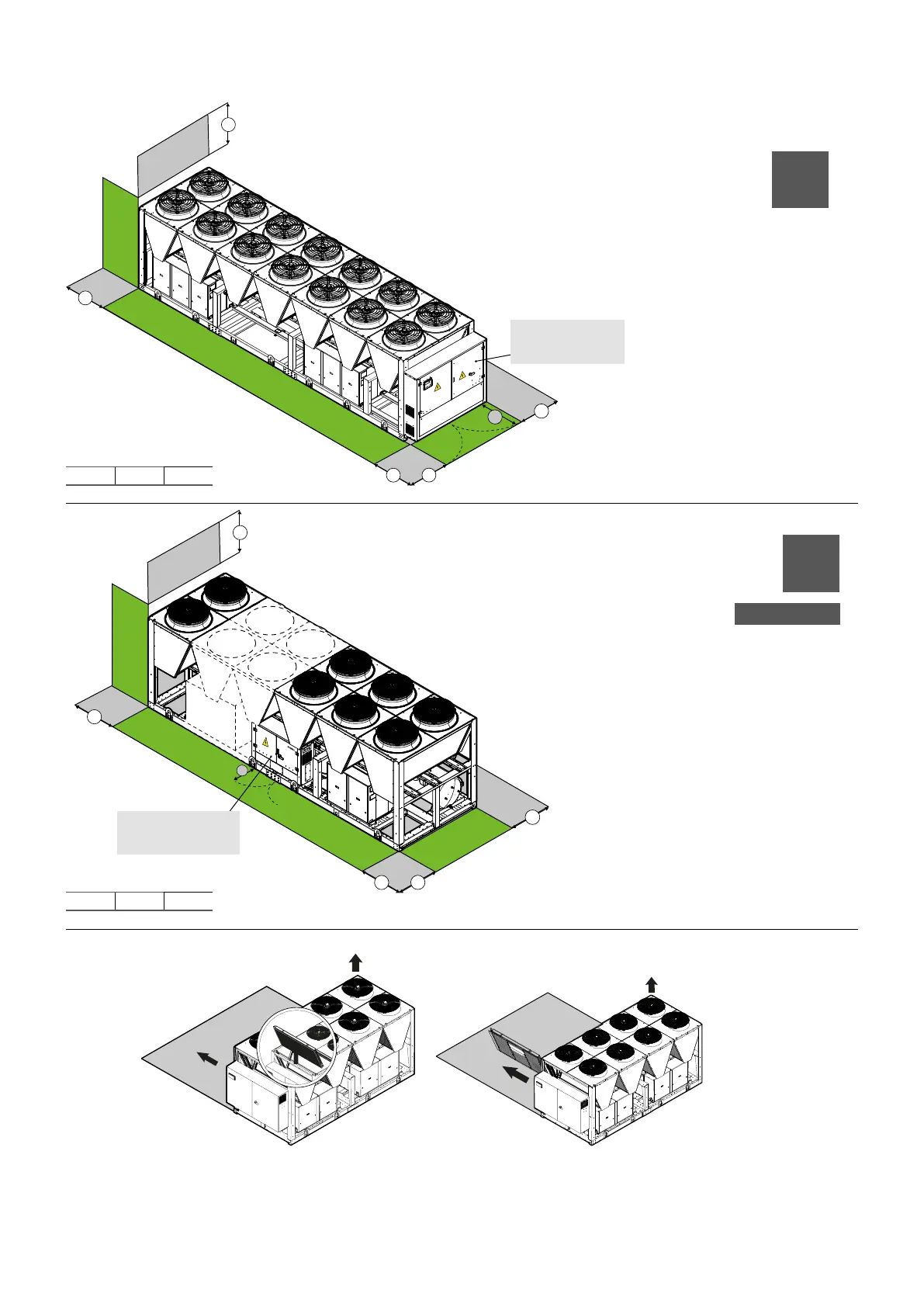

MINIMUM TECHNICAL SPACES
D
B
C
A
E
F
L
E
F
A
B C
D
* Minimum technical space, to be ensured in order for the chiller to work properly and for possible maintenance.
ATTENTION with this space, the condenser coil can only be pulled out from above; to pull it out from the side you must
leave at least 91 in.
2
1
Panel type
F in 41,8
F in 39
Electric power
board
NRB 3000 N
1000 / 1150 mm
3000 mm
2300 mm
3000 mm
118 in
118 in
91 in
39/45 in
Electric power
board
