KEY
1 Evaporator (plate-type exchangers)
2 Expansion tank
3 Accumulator
4 Pumps
5 Filter
NB
In addition to the filter, victaulic and
welded pipes are provided
The drawings are only examples of the
machine hydraulic circuit
Circuit 1°
Circuit 2°
1
1
2
2
3
3
4
4
5
5
The drawings are only examples of the
machine hydraulic circuit

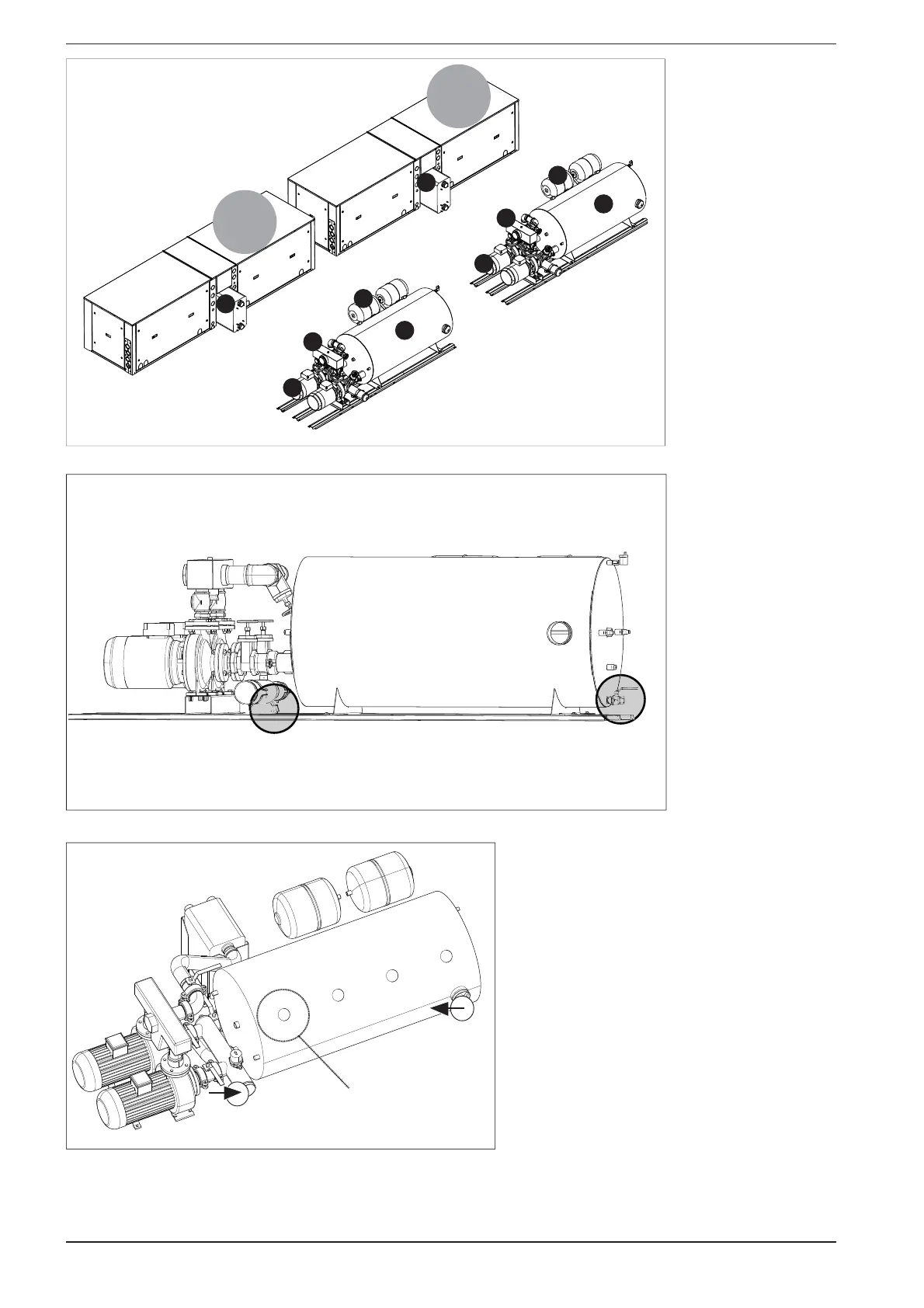

CHILLER HYDRAULIC CIRCUIT DRAIN TAP
(VERSIONS WITH ACCUMULATOR)
fig 2
NB:
for all sizes, with the pre-installation of
the additional resistance, the water
flow will be reversed according to
the standard version.
The tank is then set downstream of
the heat exchanger (see fig.)
OUT
IN
Foro per resistenze
integrative
42
INRLPY. 02.10 4086916_01
