AERMEC NXP 0700 - Hydraulic Circuit Diagrams

1721.05 - 6068956_00
NXP 0500 - 1650 2-PIPE SYSTEM / 4-PIPE SYSTEM
EN


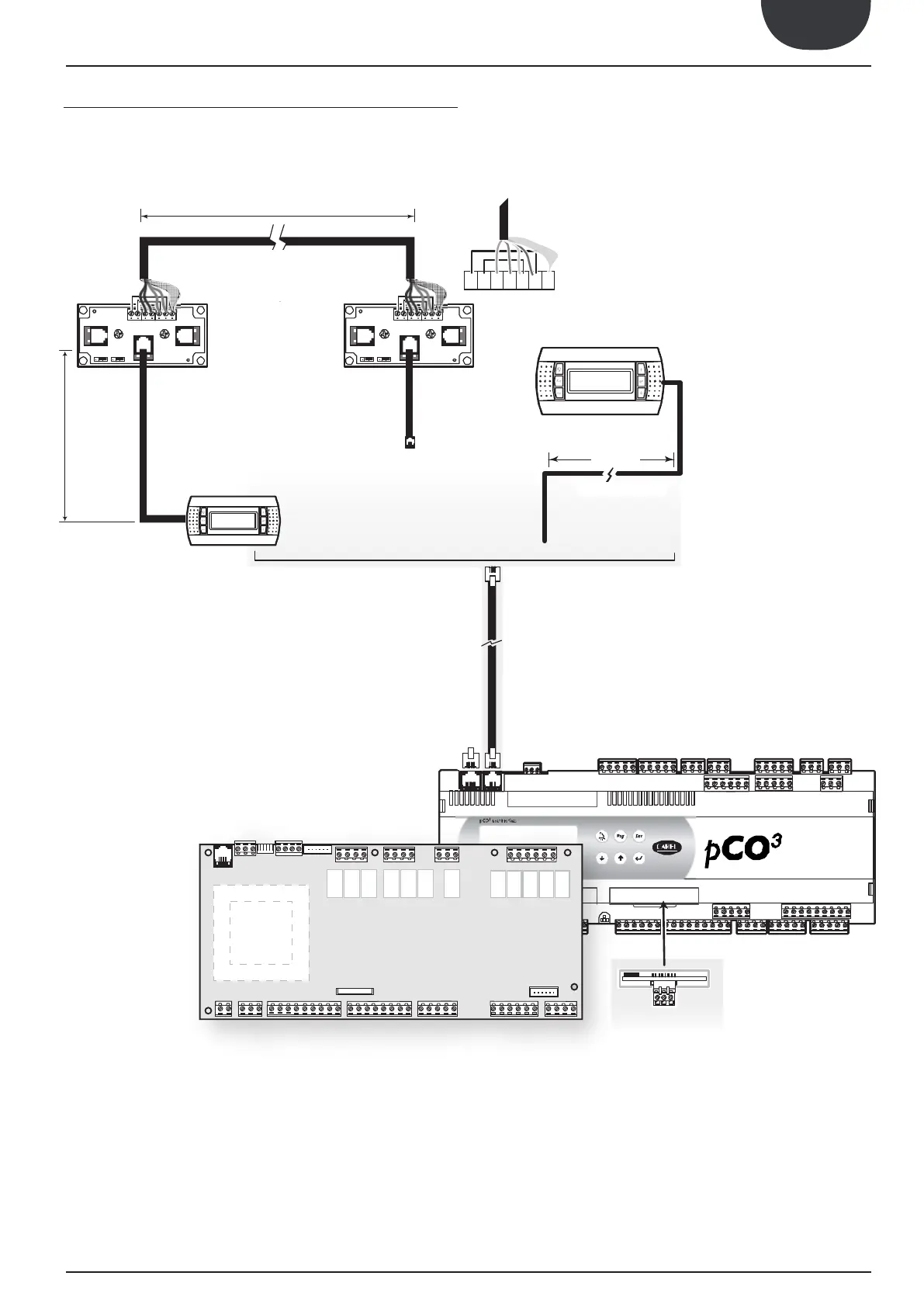

AUXILIARY CONNECTIONS
For Standard Version)
S90CONN*:
cavo di collegame n to
BMS
Field-Bus
on/oalar m enter
I/ O set prog.
max 50 m
cavo telefonico
0,8 m
200 m
S90CONN
Cavo schermato
AWG24
2 twisted pair
6543 2 1 0 6 5 4 3 210
on/oalar m enter
I/ O set prog.
6 5 4 3 2 1 0
C4 NO8 NO9 NO10 NO11 NO12
RX-/TX- RX+/TX+ GND Vout
C1 NO1 NO2 NO3 C2 NO4 NO5 NO6 NO7 C3 NC7
G
G0
B1 B2 B3 B4 B5 B6 B7
GND
+Vdc +Vdc
GND
+5 Vref
GND
Y1 Y2 Y3 Y4
DI1 DI2 DI3 DI4 DI5 DI6 DI7
DIC1
B9 B8
B10 B11 B12
GND
ID8 ID9
ID10
IDC2
J2 - probe supply J3 - analog input J4 - digital input J5 - analog output J18 - analog input J17 - valve 2 J16 - digital input
J6
J7
J8
J9
J10
J11
J12 - group 1 J13 - group 1 J14 - group 2
J15 - group 3
J1 - power supply
RX-/TX- RX+/TX+ GND
μPc
200 m
Shielded cable
AWG24
2 twisted pair
Telephone cable
Telephone cable
RS485P1 serial
board
(ACCESSORY)
PGD1 KIT
(ACCESSORY)
