Having selected the desired icon, you enter the chosen menu, allowing you to view or modify the parameters making it up.


Index Icon Menu Menu function
A
P1
P1
IN/OUT
Contains the information
(temperature, pressure, etc.)
of the system components.
B
P1
P1
ON/OFF
Switches the unit on and off and
sets its functioning mode (sum-
mer/winter) and eventual time
periods.
2-PIPE VERSION
C
P1
P1
SYSTEM
Management of the chiller
parameters, standard/energy
saving work set-point.
D
P1
P1
RECOVERY
DHW management parame-
ters(set-point, consent, tem-
perature, time periods, etc...).

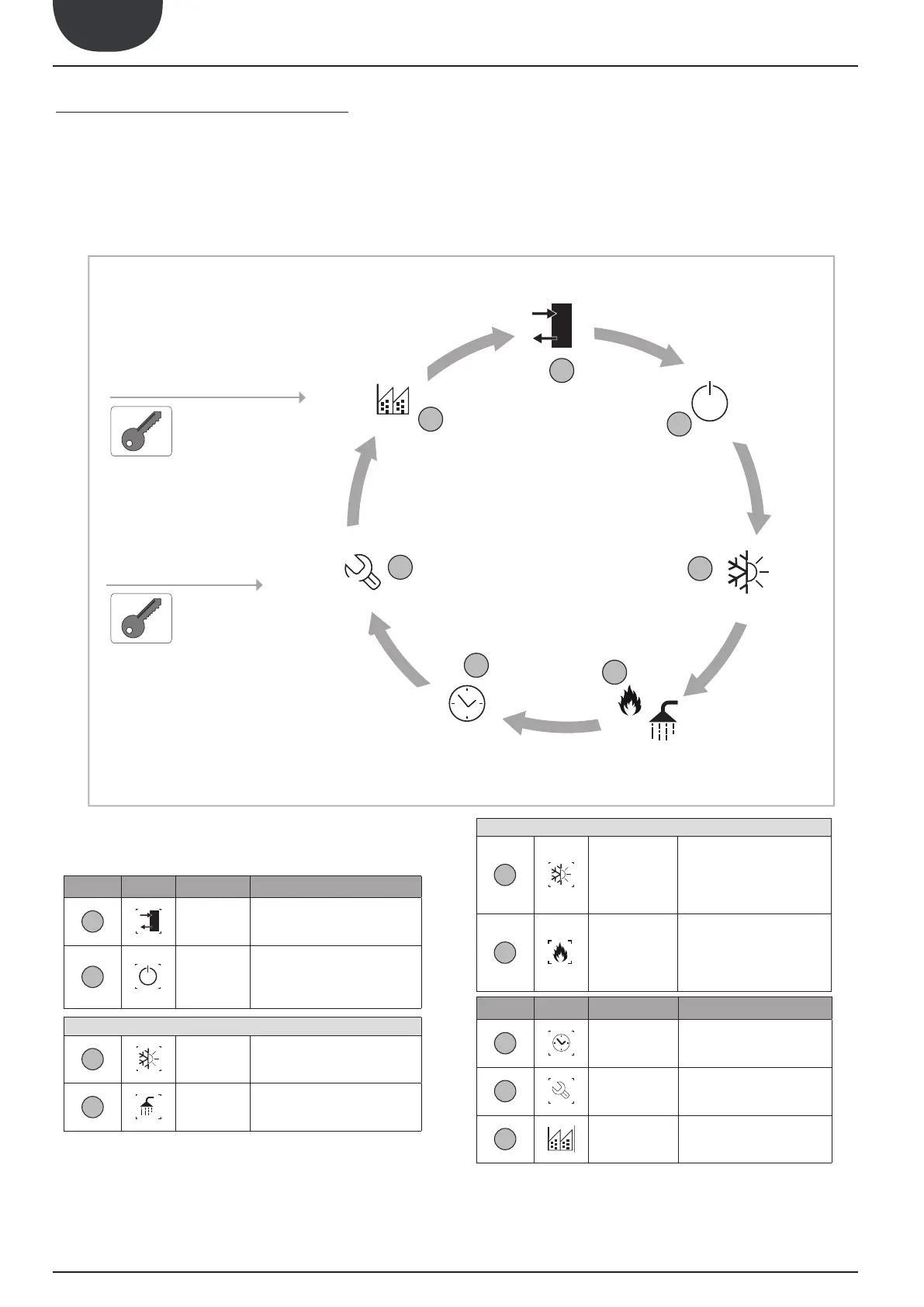

MAIN SCREEN VISIBLE FOR USER
A
B
C
D
E
F
G
Manufacturer Menu
protected by password
Assistance Menu
protected by password
MAIN SCREEN
VISIBLE FOR USER
Index Icon Menu Menu function
E
P1
P1
CLOCK
Manages all parameters
linked to the system time
(hour, date, etc....).
F
P1
P1
AFTER-SALES
ASSISTANCE
Protects the after-sales assis-
tance menu with password
request.
G
E - C
R - E
E V C N
R E
1 2
1 2
F
F
LT
HT
MANUFACTURER
Protects the manufactur-
er menu with password
request.
4-PIPE VERSION
C
P1
P1
COLD
Management of the chill-
er parameters, standard/
energy saving work set-
point when functioning in
cooling mode.
D
HOT
Management of the chill-
er parameters, standard/
energy saving work set-
point when functioning in
heating mode.
