PRELIMINARY OPERATIONS
Set up the systems fr power supply and connection with the wired control panel.
Set up a suitable condensate draining system.

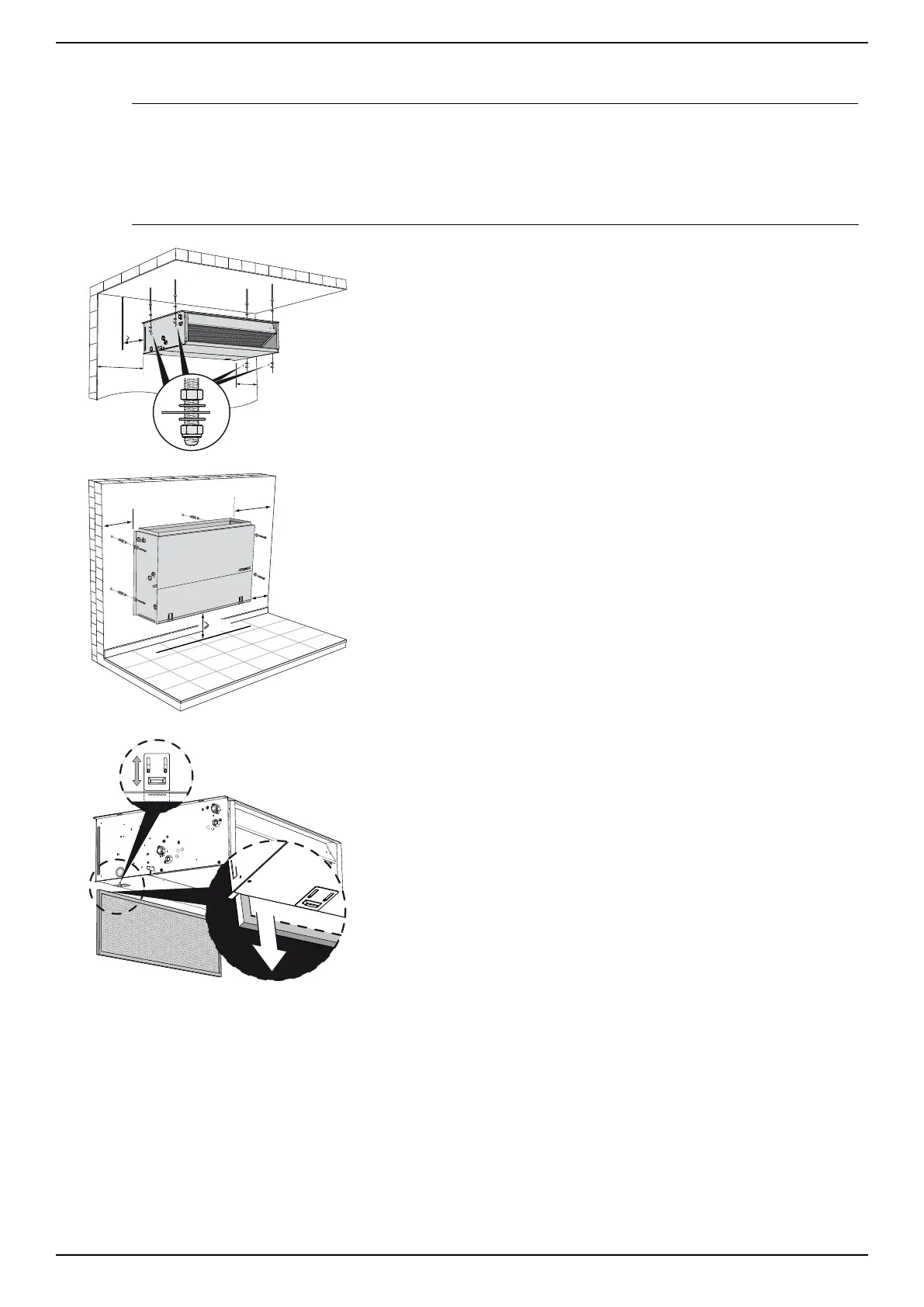

Proceed as follows to install the unit:
- For wall installation, keep a minimum
distance of 160 mm from the floor.
-For ducted installation connect the
channels to the unit. Refer to the
drawing containing dimensional data.
The flow is provided with fitting flange.
- For wall or ceiling installation, use
sure that the unit is installed horizontally.
- For ceiling installation, use four M8
threaded rods to support the frame.
Fasten the unit to 4 threaded bars using
8 nuts, 4 of which must be self-locking.
make sure that the unit is installed
horizontally.
- ATTENTION: The fan coil must be
installed perfectly horizontal. Otherwise,
condensate water drain cannot be
guaranteed.
- Make the hydraulic connections as
described in the relative chapter.
- Make the connection of the condensate
drain as indicated in the relative
chapter. The fan coils, which will run
only in heating mode, do not require
condensate drain.
- Make the electrical connections as
indicated in the relative chapter and as
indicated in the electrical diagrams.
- Connect and install the accessories.
- Power up the fan coil and check the
operation of the components and of all
the functions.
160
mm
160mm
