AERMEC WRL 600 - Connection Dimensions: Cooling Models

IWRLI2. 1810. 4900577_05

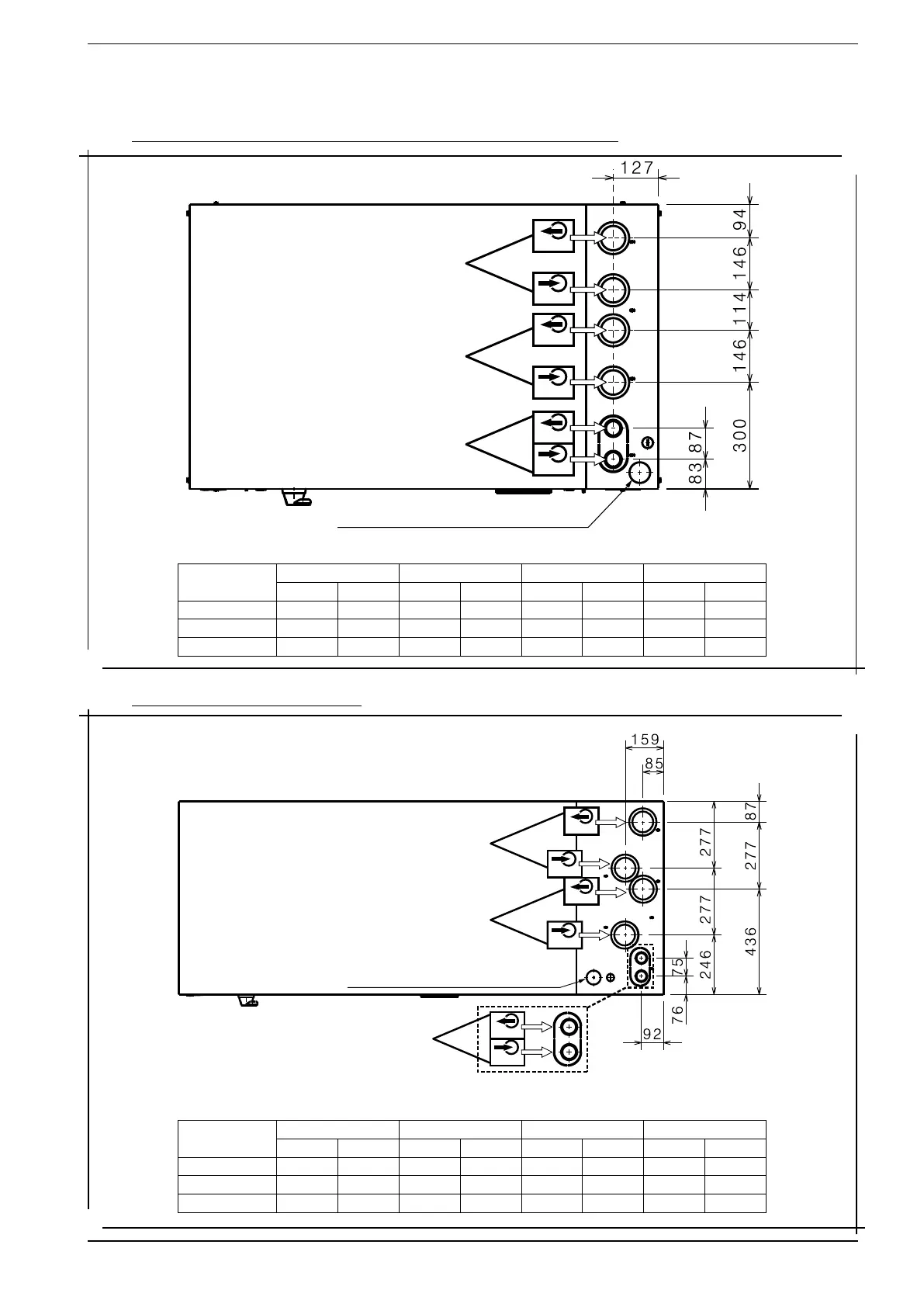

4. POSITION/DIMENSION CONNECTION WRL
IN
OUT
OUT
IN
OUT
IN
Electrical alimentation
EVAPORATOR
CONDENSER
DESUPERHEATER
Units in “mm”.
OUT
OUT
OUT
IN
IN
IN
Units in “mm”.
► CONNECTIONS (Ø)
WRL
180 200 300 400
IN OUT IN OUT IN OUT IN OUT
Evaporator 2” 2” 2” 2” 2” 2” 2” 2”
Condenser 2” 2” 2” 2” 2” 2” 2” 2”
Desuperheater 1”½ 1”½ 1”½ 1”½ 1”½ 1”½ 1”½ 1”½
► CONNECTIONS (Ø)
WRL
500 550 600 650
IN OUT IN OUT IN OUT IN OUT
Evaporator 2”½ 2”½ 2”½ 2”½ 2”½ 2”½ 2”½ 2”½
Condenser 2”½ 2”½ 2”½ 2”½ 2”½ 2”½ 2”½ 2”½
Desuperheater 1”½ 1”½ 1”½ 1”½ 1”½ 1”½ 1”½ 1”½
4.1. ► WRL 180 / 400 (ONLY COOLING )
4.2. ► WRL 500 / 650 (ONLY COOLING)
Electrical alimentation
EVAPORATOR
CONDENSER
DESUPERHEATER
9
