AERMEC WWB 0330 - DIMENSIONS AND HYDRAULIC CONNECTIONS - STANDARD PANEL (LH)

10
Model
Connections
dimensions
Connections
type
WWB 0330 2'' Grooved joints
WWB 0350 2'' Grooved joints
WWB 0550 2'' Grooved joints
WWB 0600 2'' 1/2 Grooved joints
WWB 0700 2'' 1/2 Grooved joints
WWB 0800 2'' 1/2 Grooved joints
WWB 0900 2'' 1/2 Grooved joints

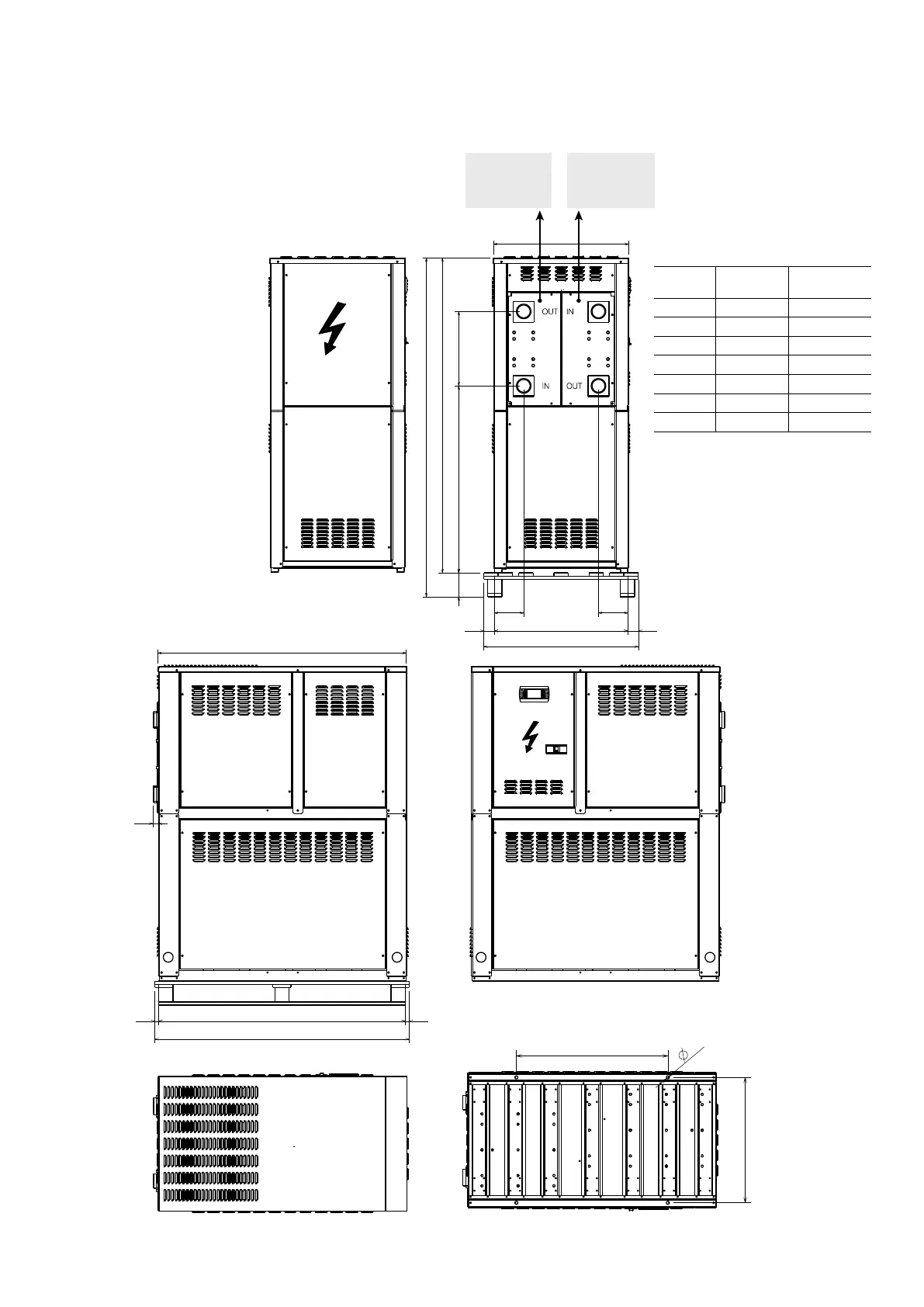

DIMENSIONS mm AND POSITION OF HYDRAULIC CONNECTIONS
°  STANDARD OPENING ELECTRICAL PANEL LH
< bottom view
Heat exchanger
system side
(condenser)
Heat exchanger
source side
(evaporator)
28.0 in
15.4 in38.6 in
5.0 in
65.0 in
70.0 in
2.2 in
6.1 in 6.1 in
2.2 in27.6 in
31.9 in
51.4 in
1.1 in
0.8 in 0.8 in51.0 in
52.6 in
31.3 in
25.9 in
0.6 in
