AERMEC WWB 0330 - Typical Hydraulic Circuits

13
//
//
1
1
5
5
5
5
3
14
4
4
10
6
6
6
6
7
7
7
8
8
2
2
12
7
7
12
9
9
11
11
11
11
3

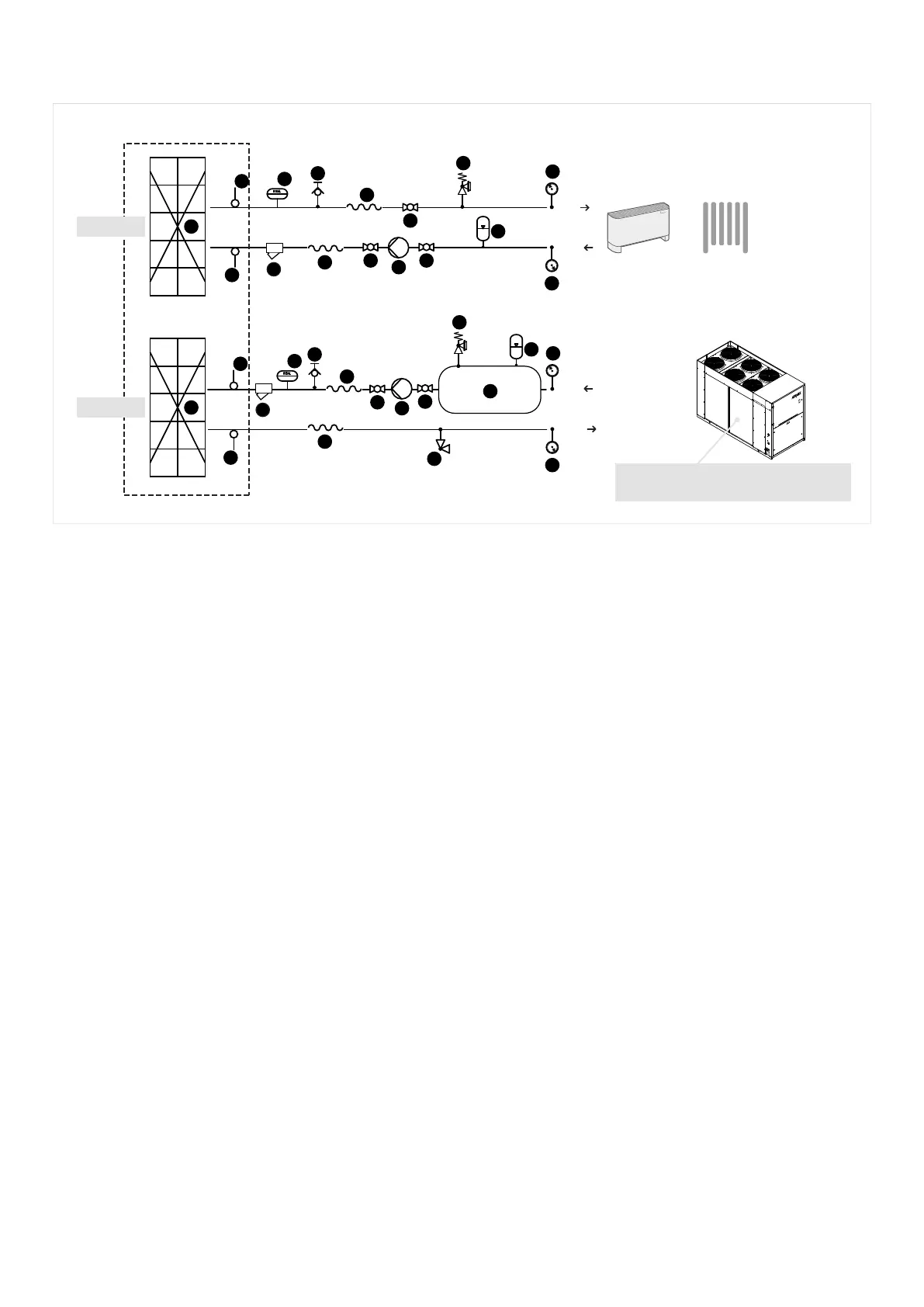

TYPICAL HYDRAULIC CIRCUITS
Unit Components recommended
COMPONENTS PROVIDED AS STANDARD
1. Plate heat exchanger
5. Water temperature sensors (IN/OUT)
HYDRAULIC COMPONENTS RECOMMENDED EXTERNAL TO UNIT
(RESPONSIBILITY OF THE INSTALLER)
2. Water lter not supplied.
Installation is mandatory or the guarantee will void.
3. Flow switch not supplied.
Installation is mandatory or the guarantee will void.
4. Air vent valve
6. Anti-vibration joints
7. Cut-o valve
8. Safety valve
9. Expansion tank
10. System buer tank
11. Pressure gauges
12. Pump
14. Drain valve
Condenser >
Evaporator >
Average temperature water from the heat pump
or another source (e.g. industrial processes)
