DISMANTLING OF THE UNIT
①
②
③
31.5 in
800 mm
④

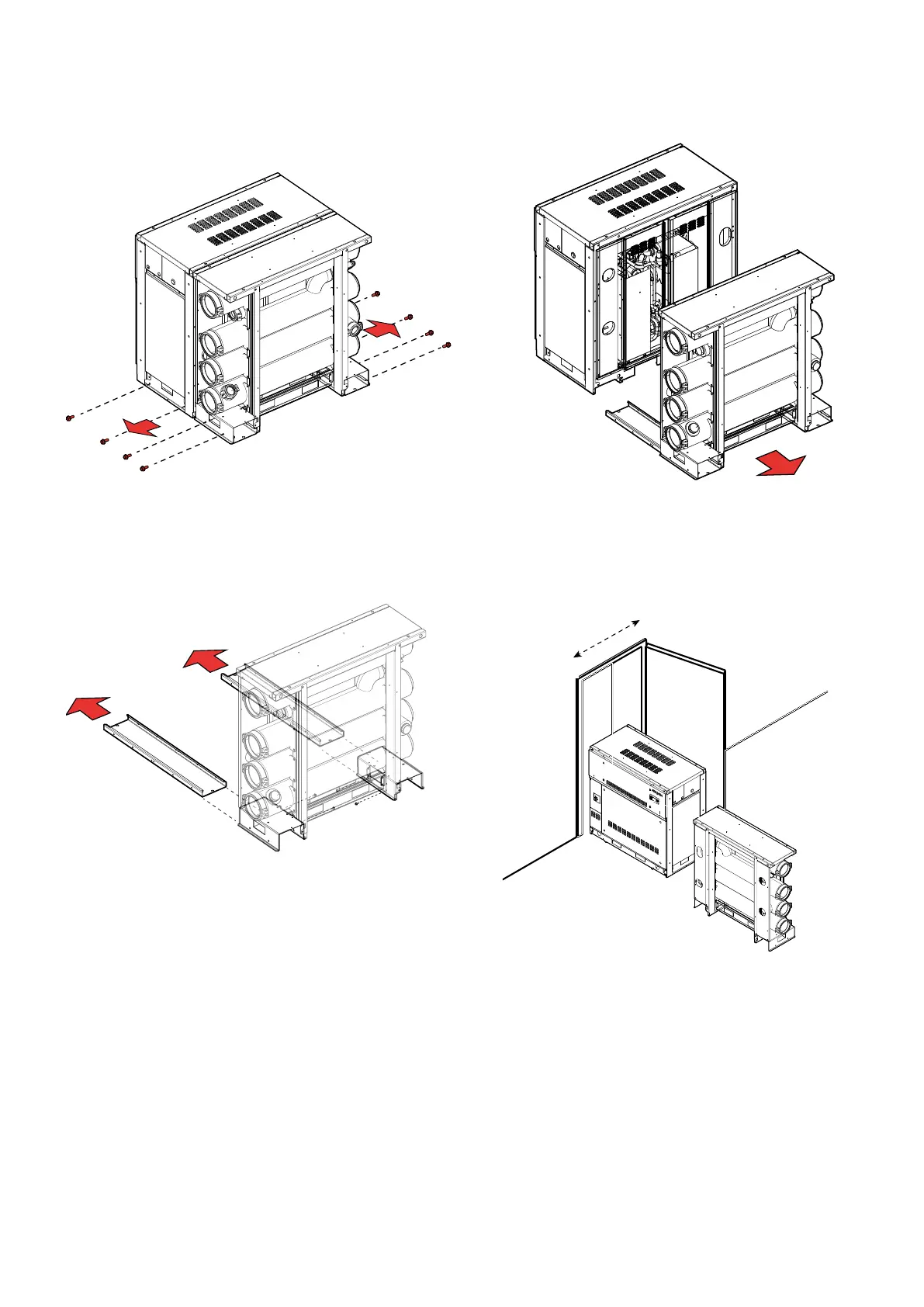

For ease of assembly, it is recommended that 1000mm, 39.4in of space be clear behind the unit in order to make the header piping connections
between modules. If space cannot be made behind the unit, adjacent piping headers must be connected prior to connecting the chiller chassis to front
of the piping header.
Before removing the manifolds, also remove the grooved
heat exchanger connection joints.
