AERMEC WWM 0500 - Page 16

16
345 mm
13.6 in
250 mm
9.9 in
255 mm
10.0 in
272 mm
10.7 in
226 mm
8.9 in
897 mm
35.3 in

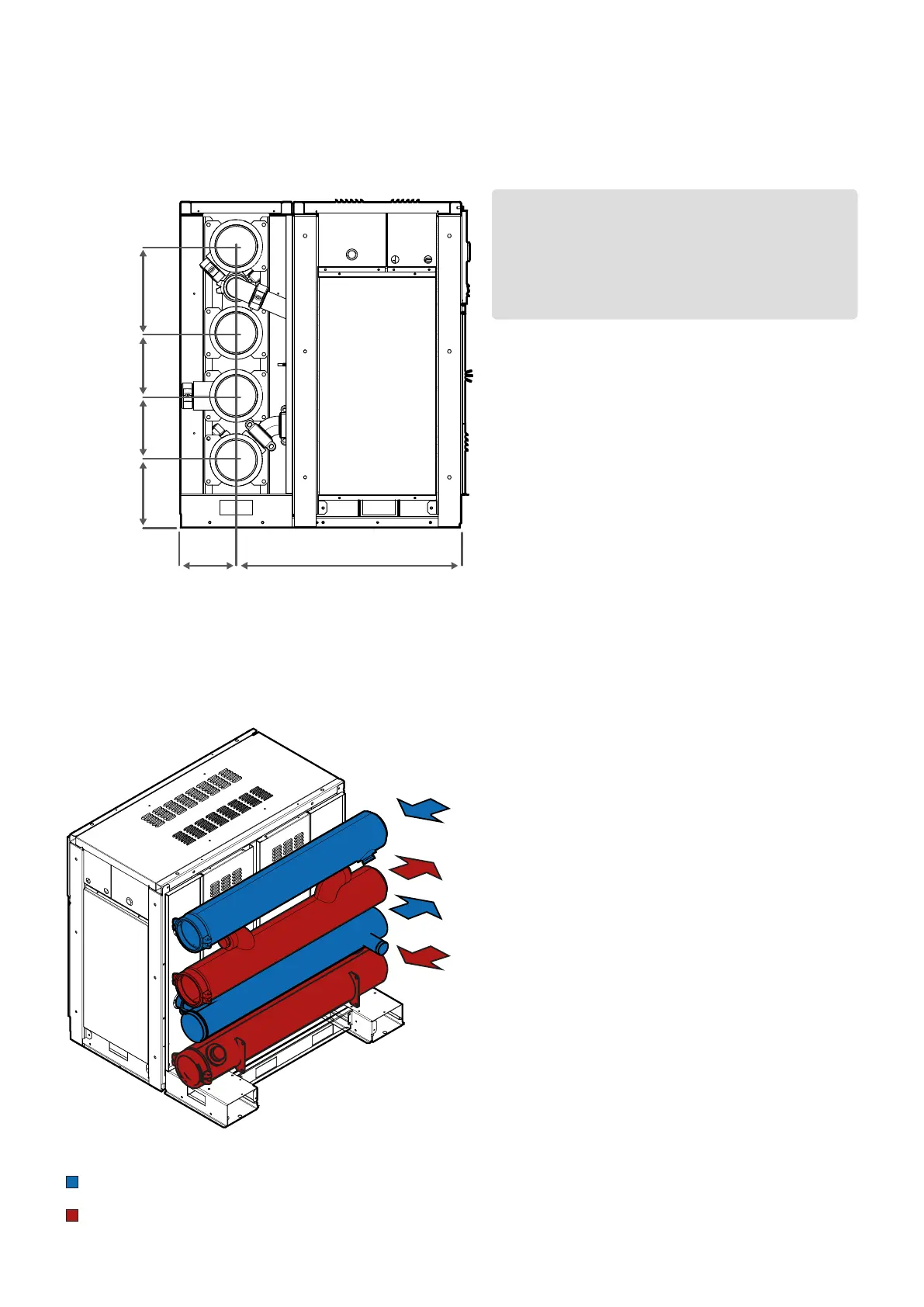

Ø GROOVED JOINTS 6"
KEY:
Evaporator
Condenser
HYDRAULIC COMPONENTS NOT SUPPLIED BUT
MANDATORY:
-Safety valve by the installer, assembly valves adjusted to the
static pressure of the unit (10bar, 21bar...).
-Water lter on the inlet, evaporator and condenser, (eventually
Aermec's accessory "KITIDRO_WWM").
