FOR QUALIFIED SERVICE PERSONNEL ONLY
BATTERY REPLACEMENT

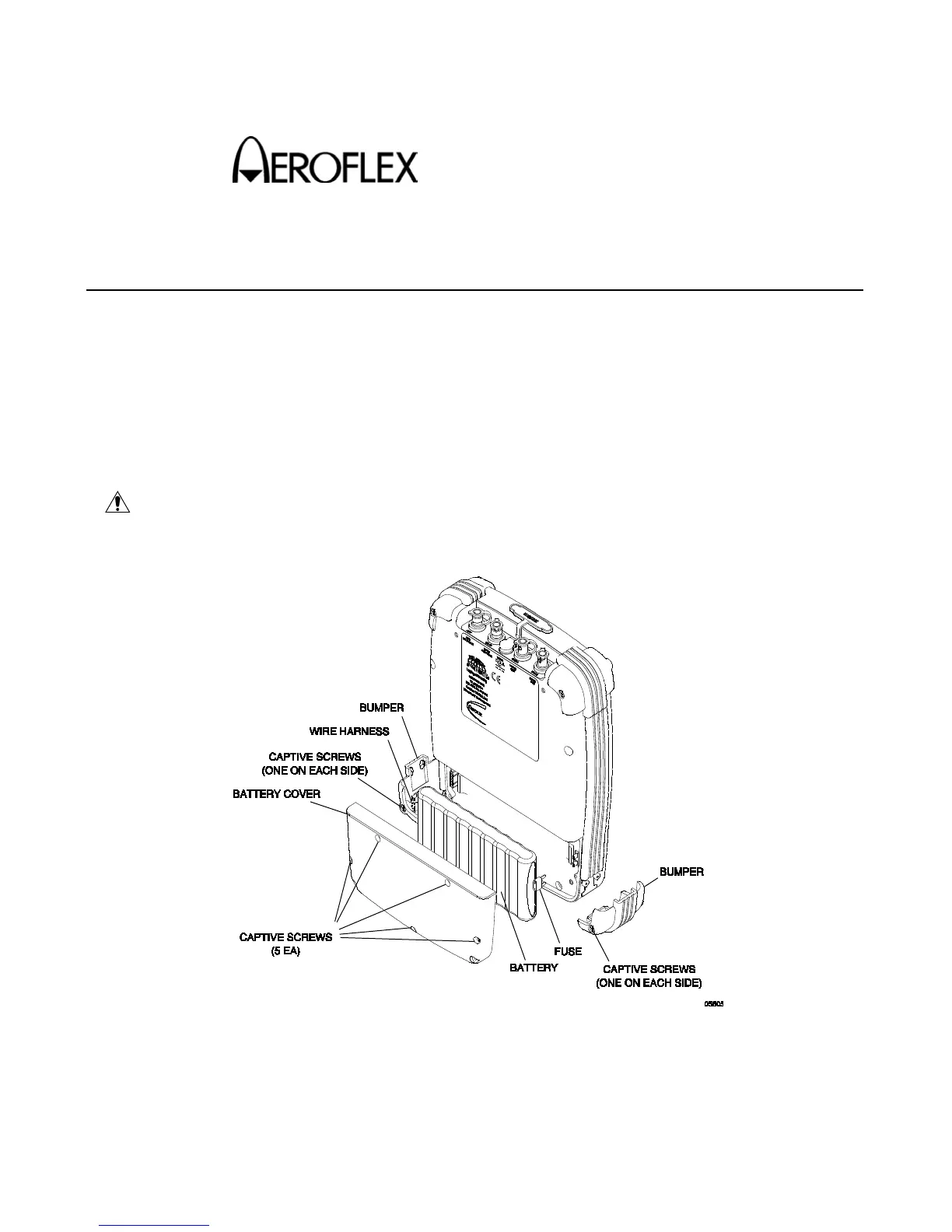

STEP PROCEDURE
1. Verify the IFR 6000 is OFF and not connected to AC power.
2. Fully loosen two captive screws in the two lower bumpers and remove the bumpers.
3. Fully loosen five captive screws and lift the Battery Cover from the Case Assembly.
4. Disconnect the wire harness connecting the battery to the Test Set and remove the battery.
5. Install new battery and reconnect the wire harness.
6. Install the Battery Cover on the Case Assembly and tighten the five captive screws (8 in/lbs.).
7. Install the two lower bumpers and tighten the two captive screws in each bumper (8 in/lbs.).
WARNING: DISPOSE OF OLD BATTERY ACCORDING TO LOCAL STANDARD SAFETY
PROCEDURES.
CAUTION: REPLACE ONLY WITH THE BATTERY SPECIFIED BY AEROFLEX. DO NOT
ATTEMPT TO INSTALL A NON-RECHARGEABLE BATTERY.
