Aerogen Solo - Installation for Ventilator Use; Breathing Circuit Connections

Aerogen
®
Solo System Instruction Manual
11
Installation for use with a Ventilator
T-Pieces-ConnectiontoaBreathingCircuit
1. For 22mm adult breathing circuits connect the nebulizer with adult
T-piece into the inspiratory limb of the breathing circuit before the
patient Y (Figure 5).

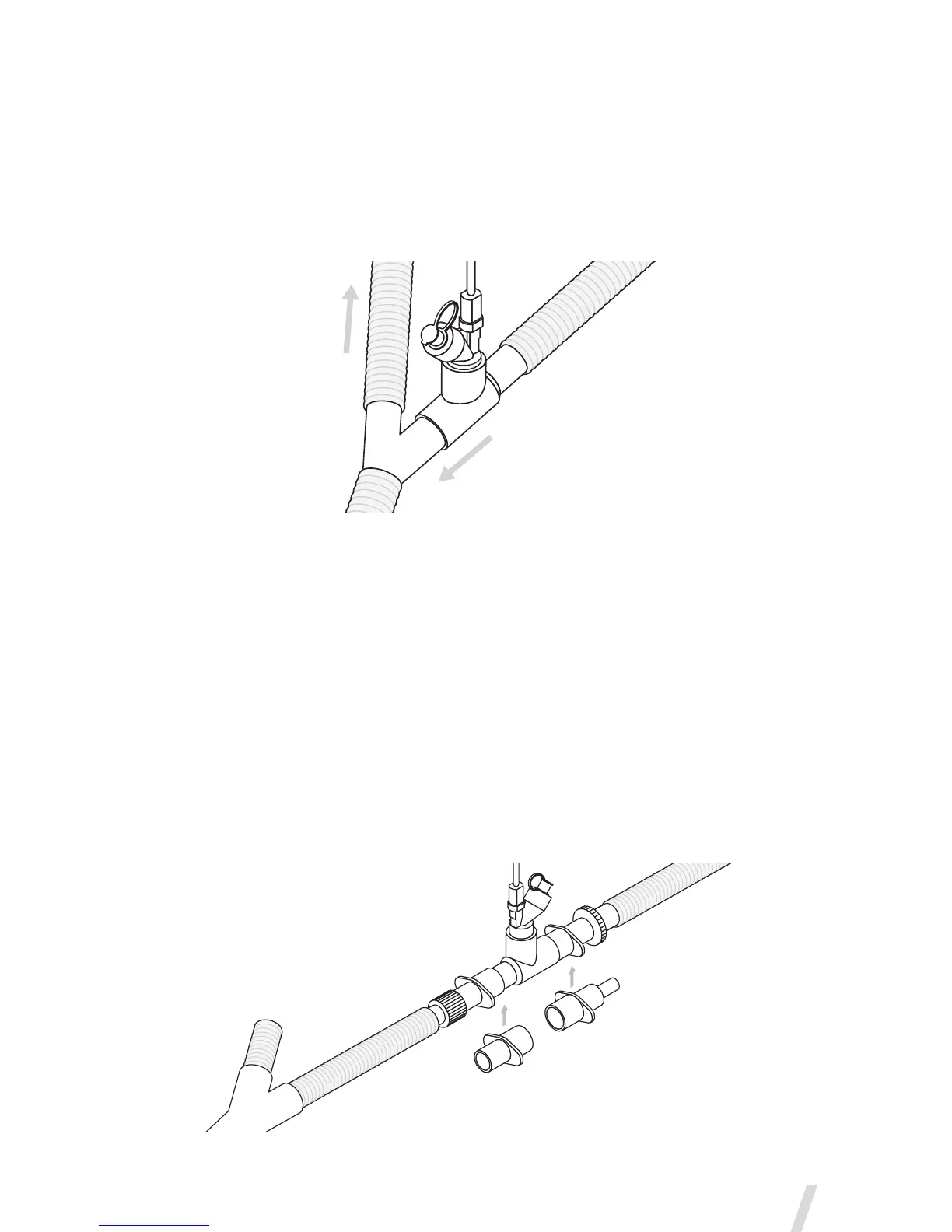

Figure 5. Connecting the Aerogen Solo to a breathing circuit
Note: Figure 5 shows adult configuration only
For 15mm pediatric breathing circuits connect the nebulizer with
the pediatric T-piece into the inspiratory limb of the breathing circuit
before the patient Y.
The Aerogen Solo can connect to 10mm pediatric breathing circuits
with the 15mm pediatric T-piece and the pediatric adapters. This can
be positioned approximately 30cm (12 in.) back from the patient Y
(Figure 6).
Figure 6. Connecting to a pediatric breathing circuit
