Aerogen Solo - Installation for Off-Ventilator Use; Face Mask Connection; Mouthpiece Connection

Aerogen
®
Solo System Instruction Manual
15
Installation for use Off-Ventilator
UsewithaFaceMask
Mask kits, which include a vented elbow and mask elbow, are available
separately (visit www.aerogen.com for full parts list).
1. When using a mask, connect the vented elbow, mask elbow and mask
to the nebulizer by firmly pushing the parts together.
2. Rotate the vented elbow to suit the position of the patient (Figure 11).

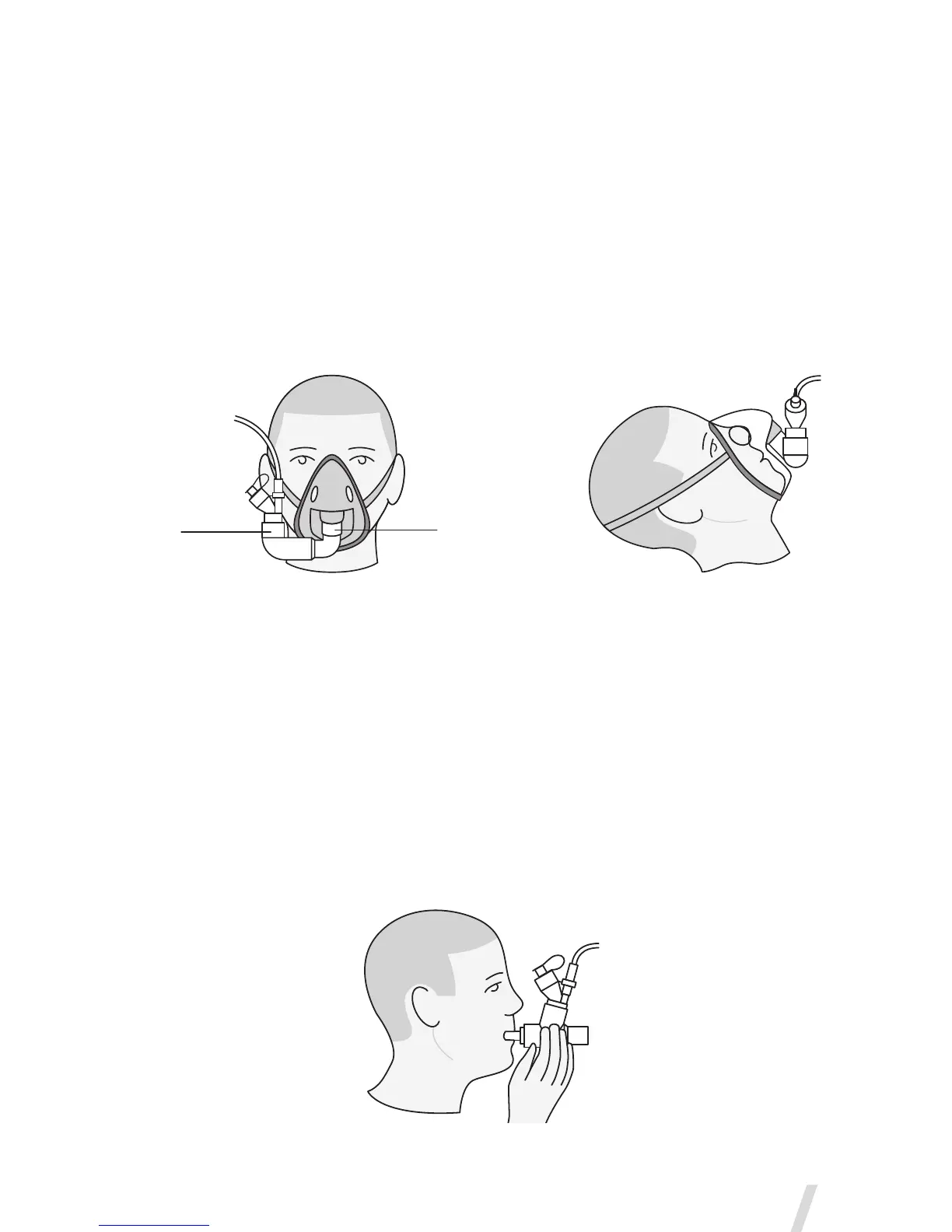

Figure 11. Connecting to a mask
UsewithaMouthpiece
The Aerogen Solo is compatible with any standard ISO 22mm nebulizer
mouthpiece inserted into the adult T-piece.
When using a mouthpiece, connect the nebulizer to the T-piece and
then connect the T-piece to the mouthpiece by pushing the parts firmly
together as shown in Figure 12.
Figure 12. Connecting to a mouthpiece
Patient Upright
Patient Reclined
Face Mask
Elbow
Vented
Elbow
Patient Upright
Patient Reclined
Face Mask
Elbow
Vented
Elbow
