SECTION 13: DISASSEMBLY & MAINTENANCE
13.1 REMOVING THE PROPELLER
The propeller is held onto the aerator assembly by a
1
/
2
" locknut (
15
/
16
” deep socket),
lockwasher, and key (See FIGURE 17).

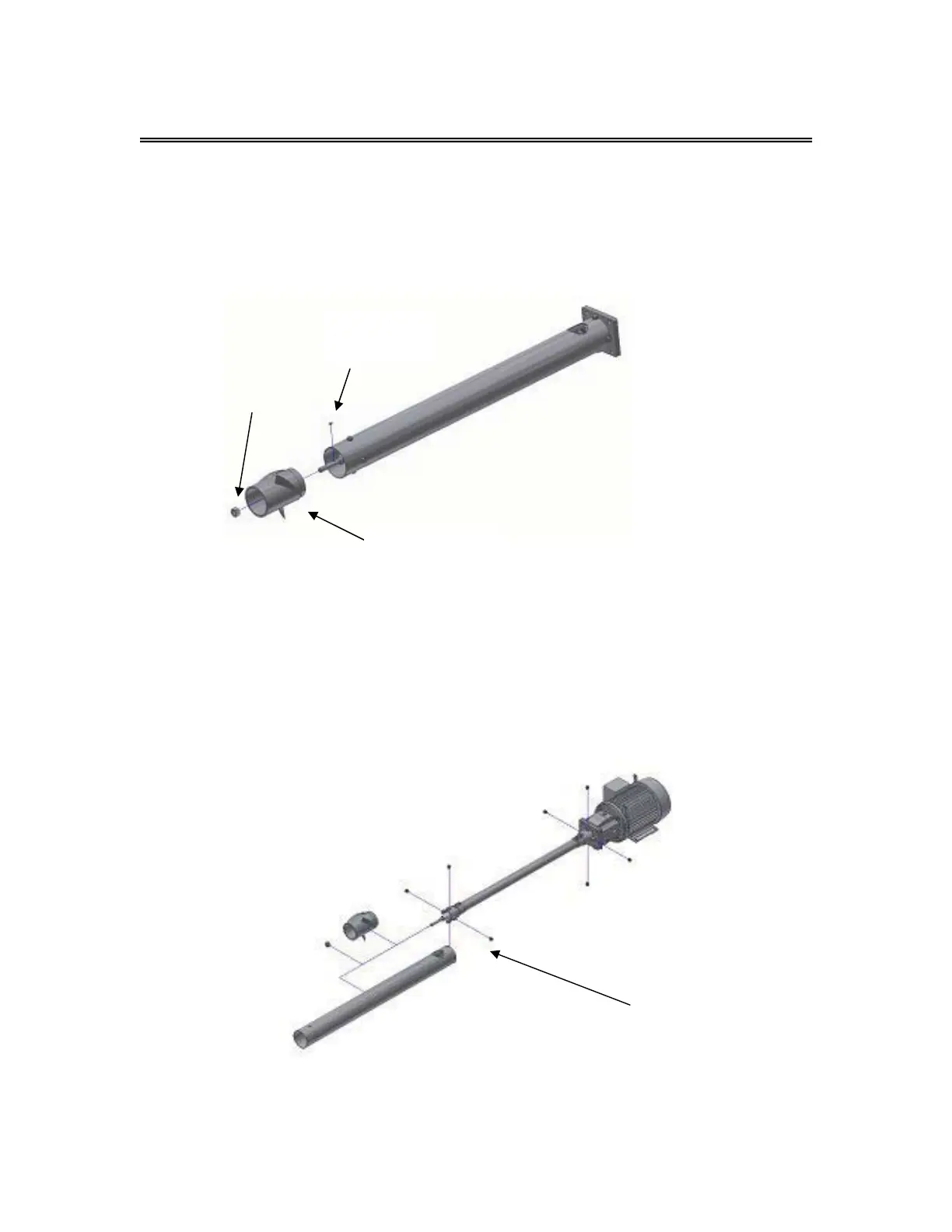

FIGURE 17:
Removing the Propeller
13.2: REMOVING THE DRAFT TUBE
The draft tube is held in place by eight hex head bolts (
9
/
16
” socket) and lockwashers.
With the bolts and propeller removed, the draft tube can be slid off the aerator
assembly (FIGURE 18).
Reapply locktight to bolts whenever replacing the draft tube.
- 18 -
FIGURE 18:
Draft Tube
Installation
Bolts and Lockwashers
(8 places)
Jam Nut
Pro
p
eller
Key
