AIB-SO21/AIB-SO31/AIB-SN31/AIB-SN41 User Manual 20
Pin #
Definition
Pin #
Definition
1
VDD_3V3_OUT
2
5V_OUT
3
SPI1_CS1_3V3
4
SPI1_MOSI_3V3
5
SPI1_CS0_3V3
6
SPI1_SCK_3V3
7
NC
8
SPI1_MISO_3V3
9
GND
10
GND

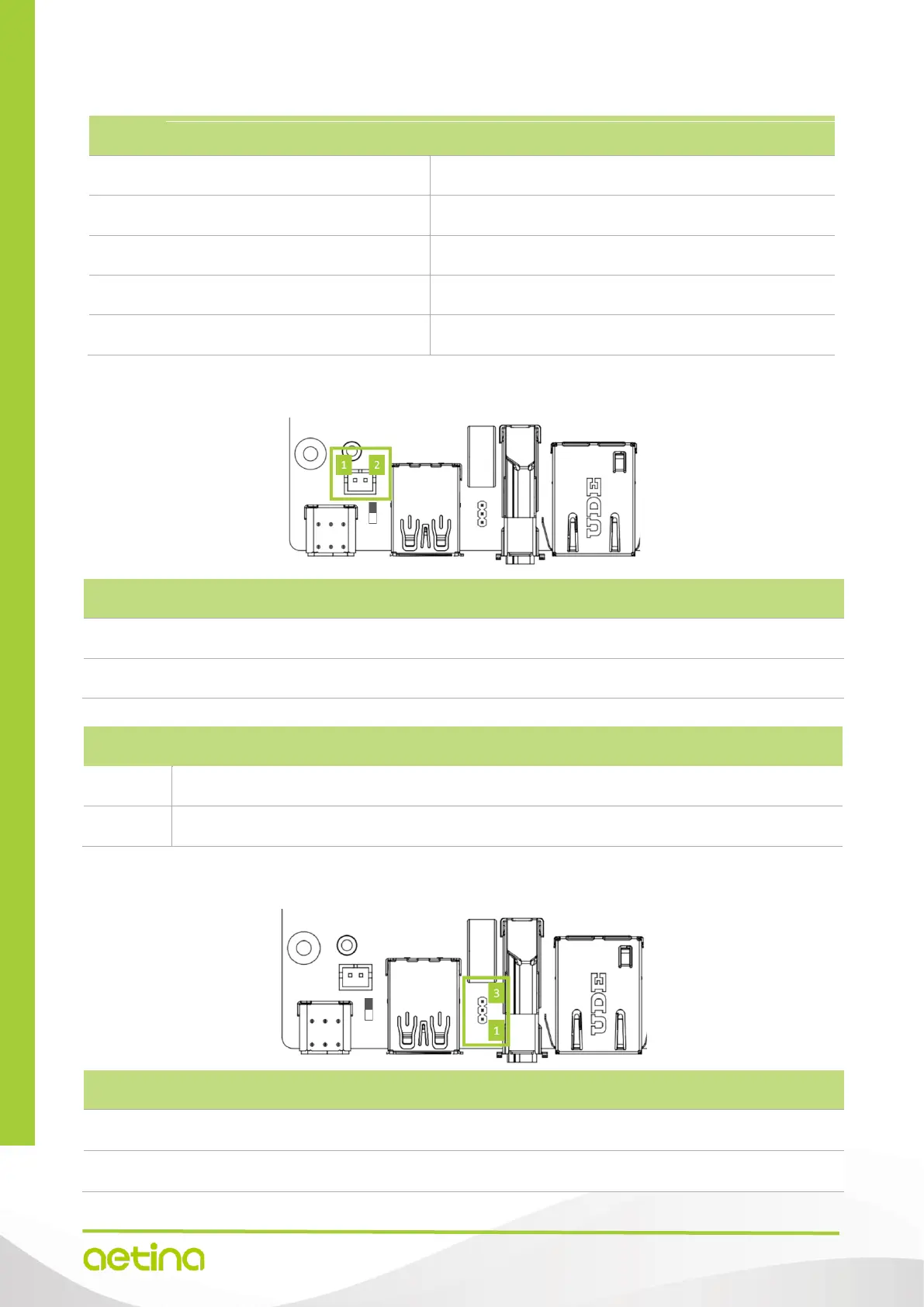

◼ RTC Battery Connector
Pin #
Definition
1
－
2
＋
◼ Debug UART
Item
Description
Location
BAT1
Type
1*2P P:2.0mm connector
Item
Description
Location
J7
Type
1*3P P:2.54mm Pin connector
