14

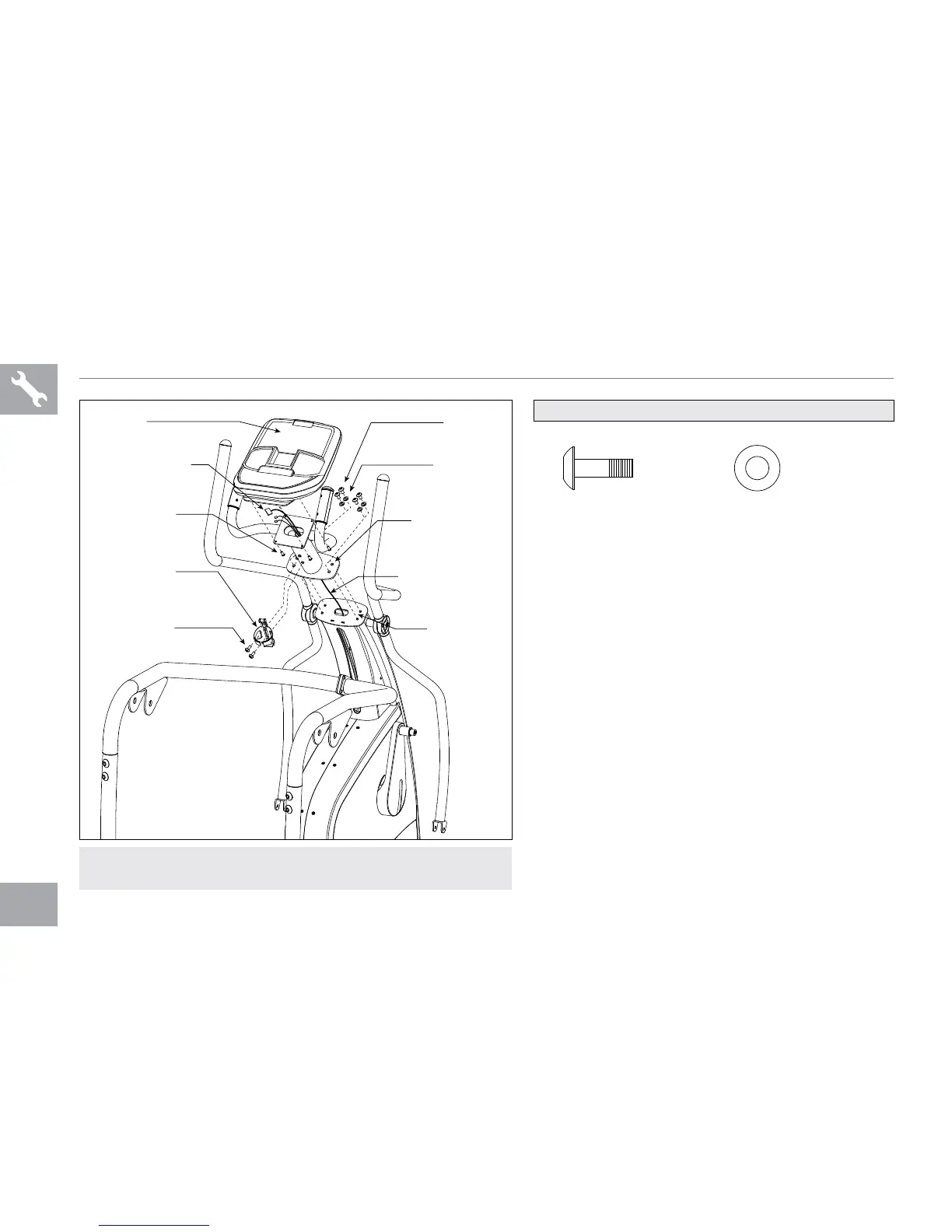

ASSEMBLY STEP 5
A Open HARDWARE FOR STEP 5.
B Run CONSOLE CABLES from MAIN FRAME
BRACKET through the CONSOLE MAST.
C Attach CONSOLE MAST to the MAIN
FRAME BRACKET using 4 BOLTS (C) and 4
WASHERS (L).
D Attach the CONSOLE CABLES to the
CONSOLE.
E Carefully tuck the CONSOLE CABLES into
the CONSOLE MAST before attaching the
CONSOLE. Attach CONSOLE to CONSOLE
MAST using 4 PRE-ATTACHED BOLTS.
F Attach WATER BOTTLE HOLDER to
CONSOLE MAST using 2 PRE-ATTACHED
BOLTS.
BOLT (C)
16 mm
Qty: 4
WASHER (L)
18 mm
Qty: 4
HARDWARE FOR STEP 5:
PRE-ATTACHED
BOLTS
PRE-ATTACHED
BOLTS
WATER BOTTLE
HOLDER
CONSOLE MAST
BOLTS (C)
CONSOLE CABLES
MAIN FRAME
BRACKET
CONSOLE
WASHER (L)CONSOLE CABLES
NOTE: Be careful not to pinch any wires while attaching the
console mast or console.
