16

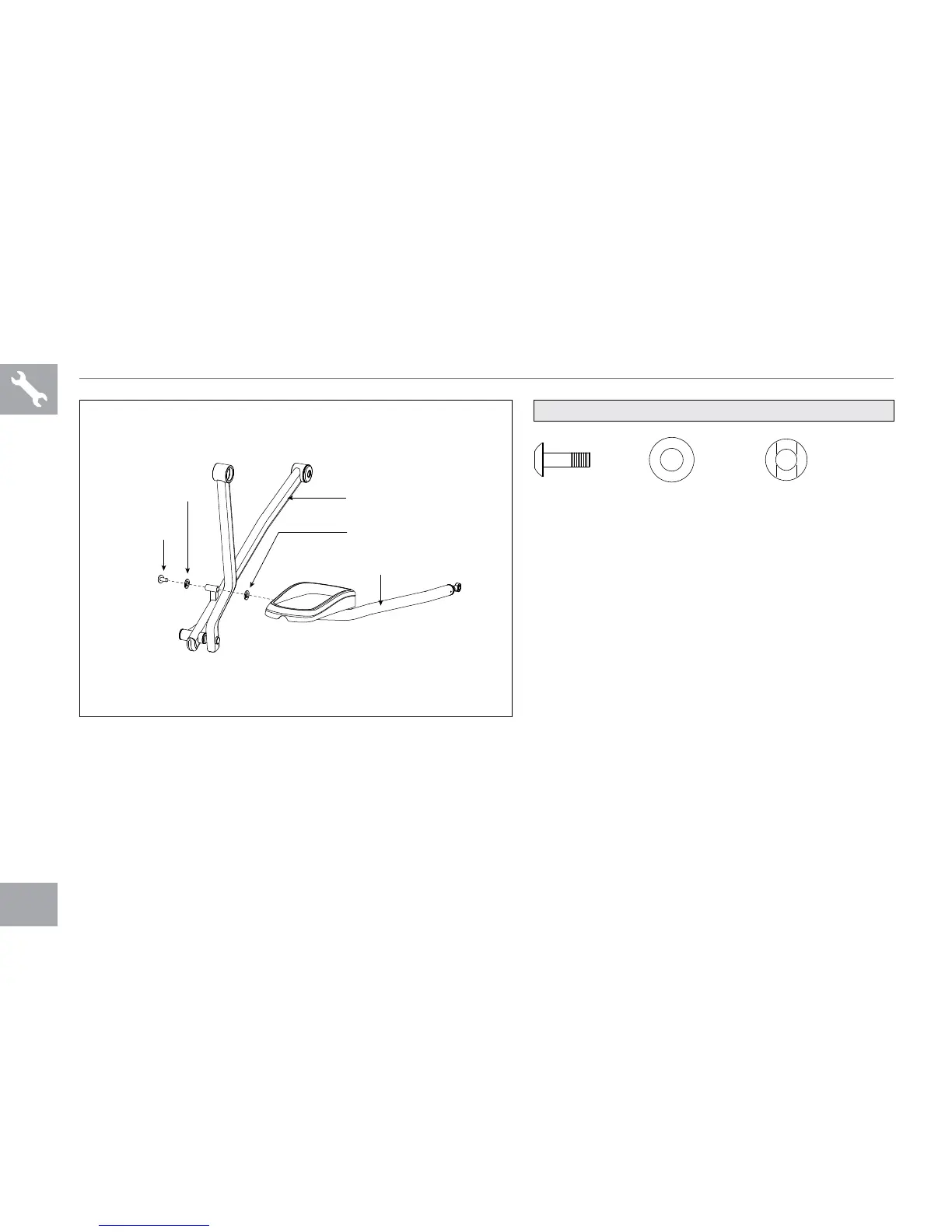

ASSEMBLY STEP 7
A Open HARDWARE FOR STEP 7.
B Attach RIGHT LINK ARM to RIGHT PEDAL
ARM using 1 BOLT (C), 1 WASHER (P) and 1
WAVY WASHER (M).
C Repeat on opposite side.
WASHER (L)
18 mm
Qty: 8
BOLT (K)
12 mm
Qty: 8
BOLT (C)
16 mm
Qty: 2
WASHER (P)
38 mm
Qty: 2
WAVY WASHER (M)
34 mm
Qty: 2
HARDWARE FOR STEP 7:
PEDAL ARM
BOLT (C)
WASHER (P)
WAVY WASHER (M)
LINK ARM
