AFG 18.1AXT - Page 16

17
A Lay waste packaging plastic over the base rail.
This will prevent the pedal arm assembly from
scratching the elliptical’s paint.
B Open HARDWARE FOR STEP 8.
C Attach RIGHT SWING ARM to TOP
HANDRAIL using 2 SWING CAPS, 2 BOLTS
(C), 2 AXLES and 2 WASHERS (D).
D Attach the RIGHT PEDAL ARM to the right
CRANK using 1 WAVY WASHER (J), 1
WASHER (D) and 1 BOLT (C).
E Attach the CRANK CAP to the CRANK.
F Repeat on opposite side.
WASHER (D)
25 mm
Qty: 6
BOLT (C)
16 mm
Qty: 6
WAVY WASHER (J)
29 mm
Qty: 2
AXLE
Qty: 2
HARDWARE FOR STEP 8:
CRANK
PACKAGING PLASTIC
WASHER (D)
WAVY WASHER (J)
BOLT (C)
CRANK CAP
SWING CAP
TOP HANDRAIL
WASHER (D)
BOLT (C)
AXLE
WASHER (D)
SWING CAP
BOLT (C)
RIGHT SWING ARM
RIGHT PEDAL ARM
LINK ARM

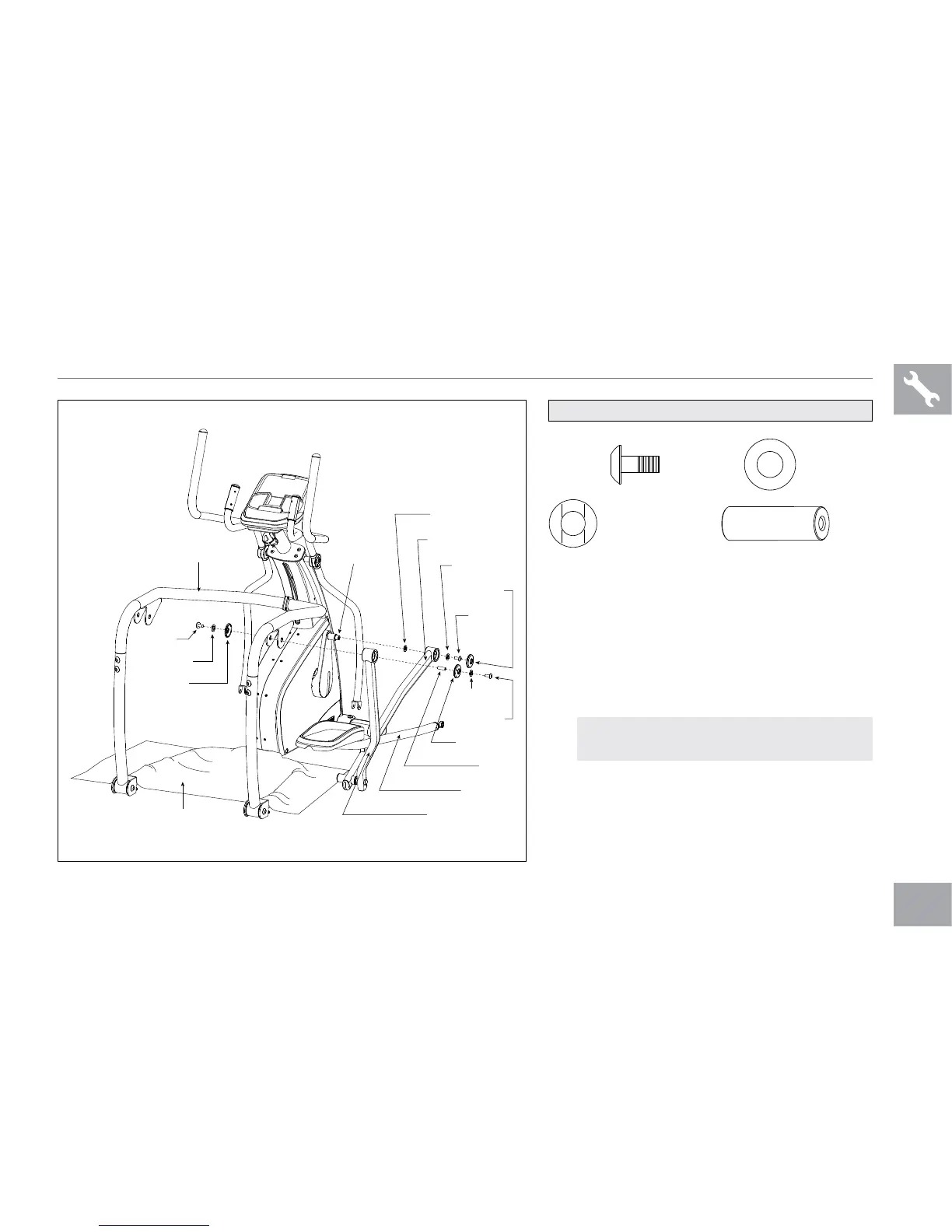

ASSEMBLY STEP 8
NOTE: Leave bolts loose until you have
finished STEP D.
