Afore HNS TL-1 Series User Manual

15
Please note that the sizes of metal connecting tubes are different. The bigger one is for female connector
and the smaller one is for male connector.

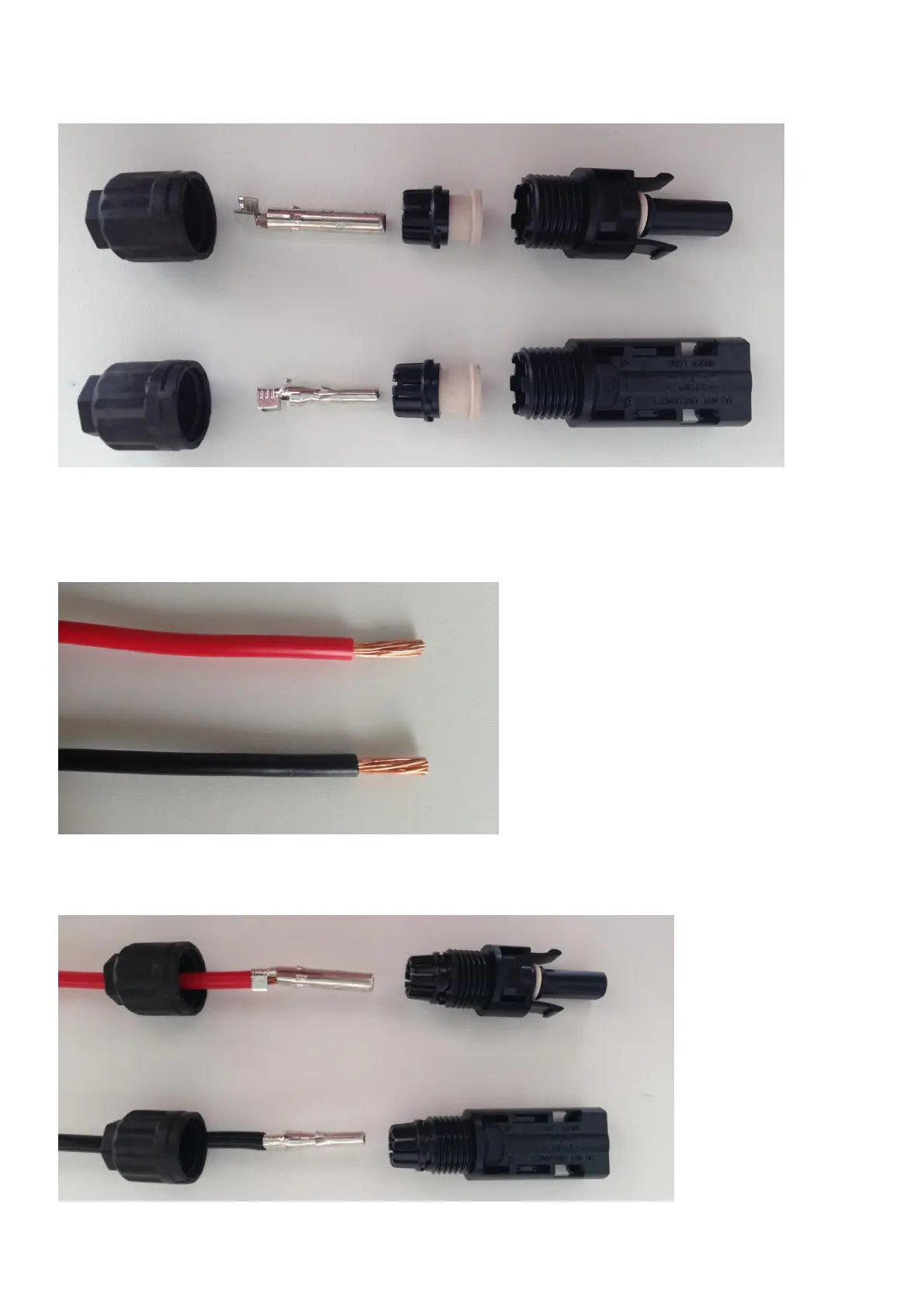

Assembly Instructions:
◆ Prepare the DC wire to connect the positive and negative DC arrays. Stripping length is 12～15mm，
sectional area is 4 mm
2
as below.
◆ Insert the DC wire to metal connecting tube. Make sure all line heads are in the connecting tube as
picture blow.
Female Connector
Male Connector
Stripping length is 12~15mm, sectional area is 4mm
2
Positive PV Array
Negative PV Array
