7.1 SeriesOperation

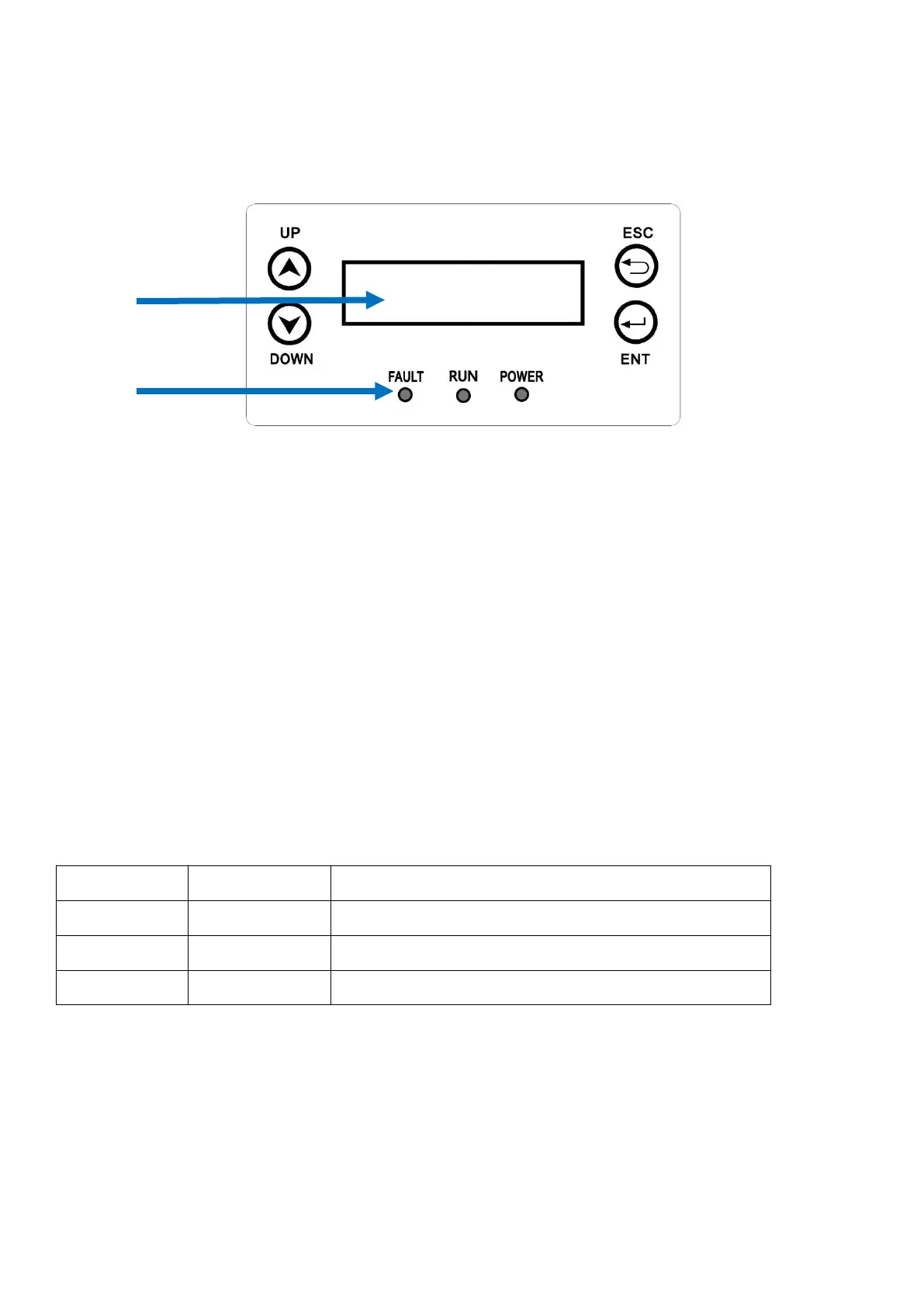

7.1.1 Overview of Controls and Displays
There are four function keys on the front panel: UP, DOWN, ESC, ENT.The keypad is used for:
Up and Down keys: Scrolling the displayed parameter, or modify the adjustable parameters;
Esc and Ent keys: Cancel or Enter.
7.1.2 Commissioning
After completing of the mechanical and electrical installation, the inverter could be put into operation.
1. Switch off DC and AC side circuit breakers and switches.
2. Wait until the screen is on and set up grid connection standard. (Please refer to 7.1.4.1 for specific
operations)
The inverter starts up and feed into the utility grid automatically when all the necessary conditions of
normal operation for the inverter is fulfilled.
3. Check whether the display and LEDs are indicating a normal operating state.
On: Normal Grid-connection
7.1.3 Anyhome Series LED Display
Three LED lights are assembled on the inverter, RUN, POWER, and FAULT. POWER turns on when inverter
starts up. When FAULT turns on, it means there is faulty in the system or inverter and the faulty code will be
shown on LCD screen. When RUN turns on, it means inverter is grid-connected operating.
To Next Page
