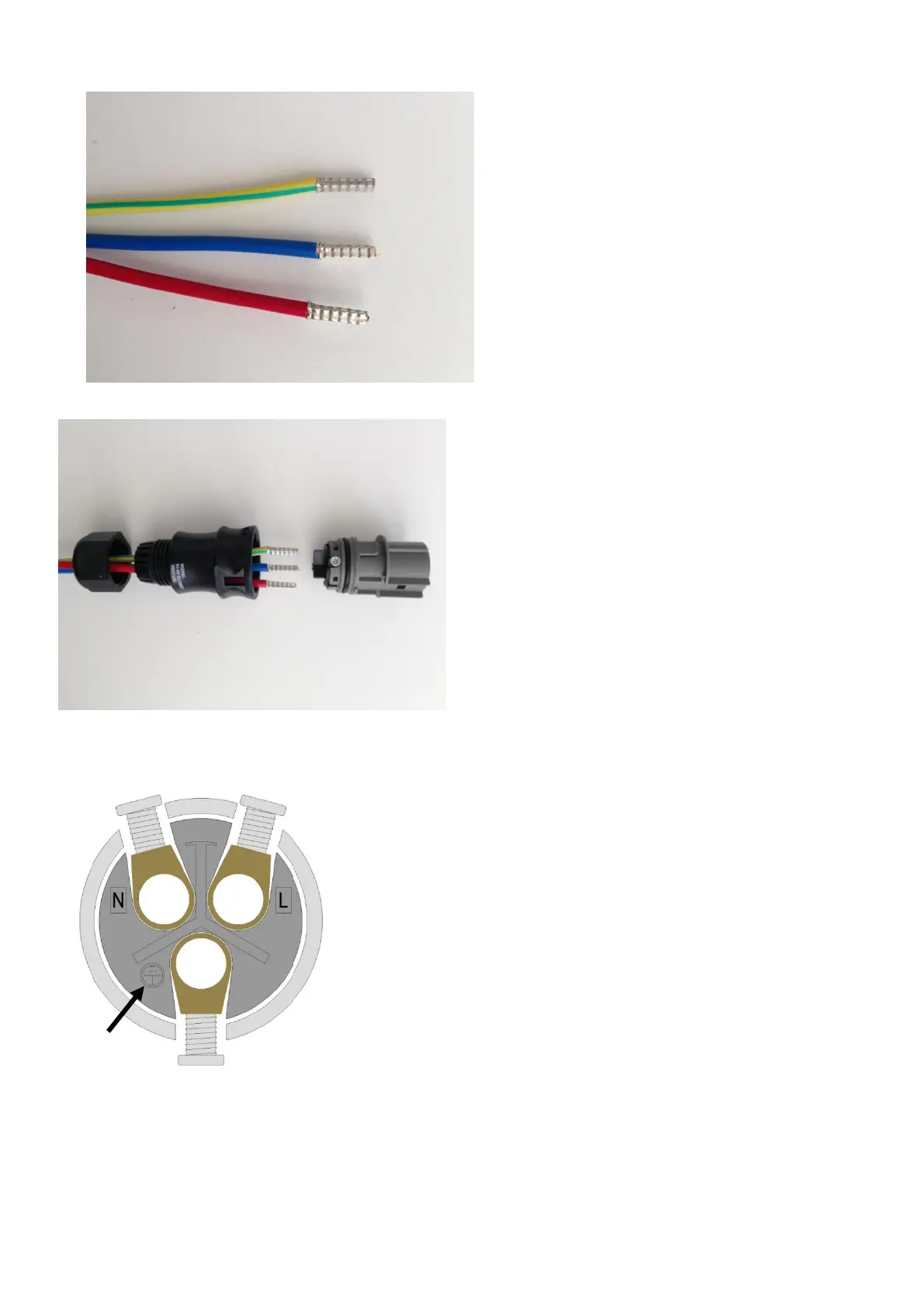

1. AC assembly line, sectional area is 4mm
2
, stripping length is 7mm
2. AC line goes through AC terminal waterproof head and cap
3. Connect AC line, Live line (L), Neutral line (N) and Ground Wire (PE) according to polarity. Tighten the
screws to ensure a solid connection. Guarantee not to fall off if pulling.
