15

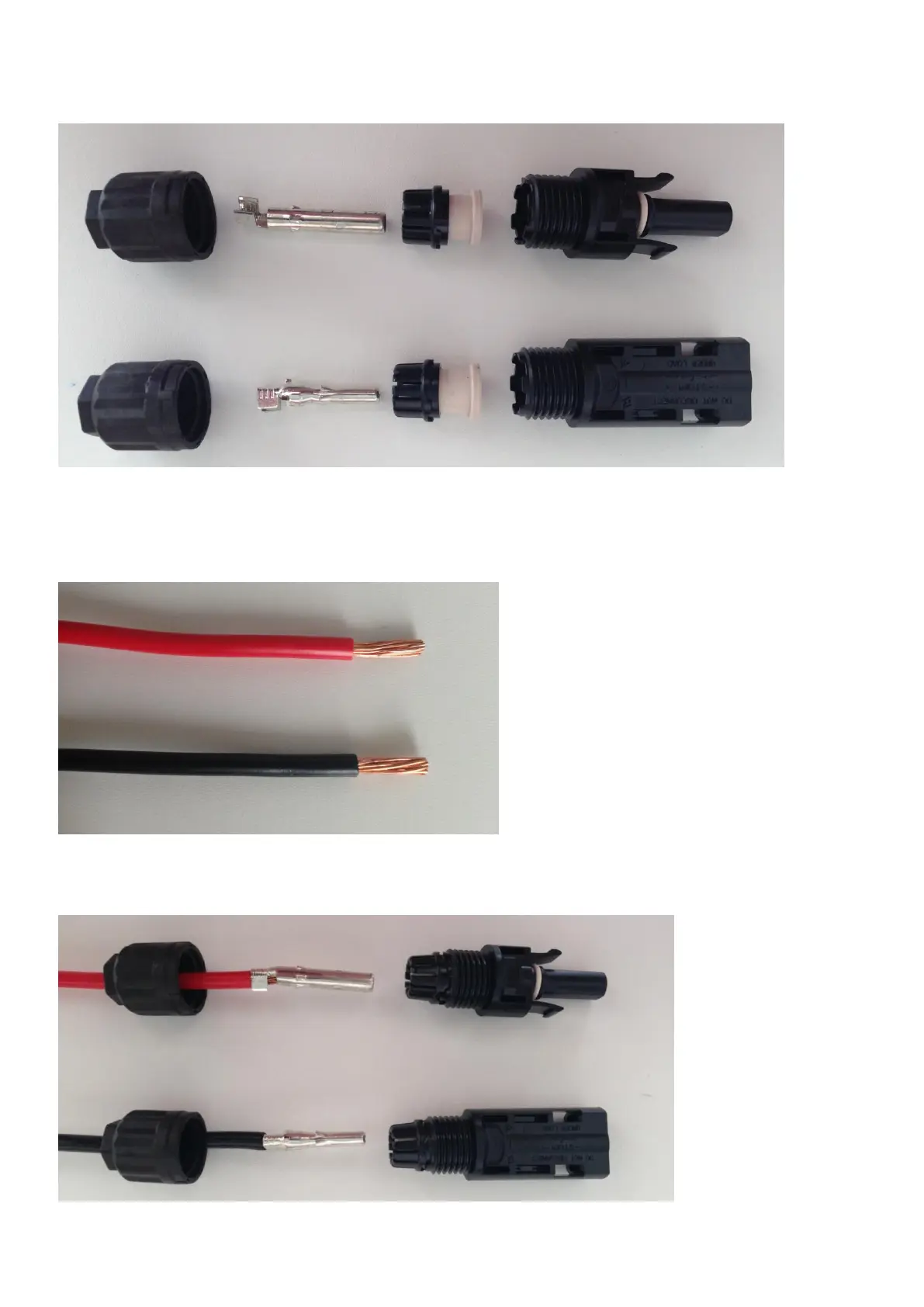

Please note that the sizes of metal connecting tubes are different. The bigger one is for female connector
and the smaller one is for male connector.
Assembly Instructions:
◆ Prepare the DC wire to connect the positive and negative DC arrays. Stripping length is 12～15mm，
sectional area is 4 mm
2
as below.
◆ Insert the DC wire to metal connecting tube. Make sure all line heads are in the connecting tube as
picture blow.
Female Connector
Male Connector
Stripping length is 12~15mm, sectional area is 4mm
2
Positive PV Array
Negative PV Array
