17

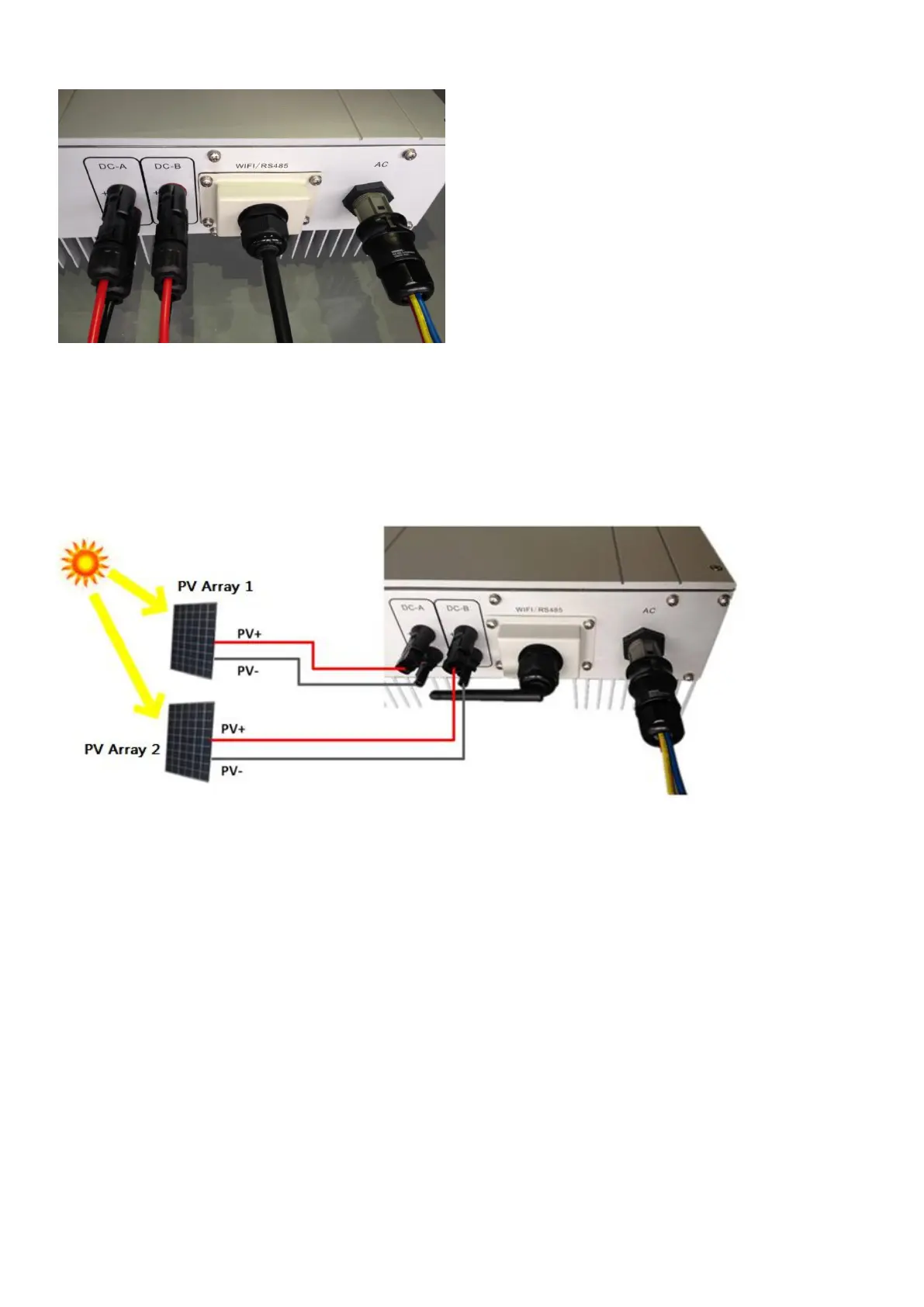

Plug the DC plug connectors into DC terminals on inverter.
Double MPPT trackers model: HNSxxxxTL(xxxx=3000,3600,4000,5000,5500,6000,7000,8000). The device is
equipped with 2 groups of DC(DC-A and DC-B) of connecting sockets for DC input, and each group contains
a pair of connecting sockets (DC+ and DC-). Group A and B are respectively connected to two DC arrays as
picture below. Connect PV+ and PV- in PV Array 1 to the positive and negative poles of DC-A and those of
PV2 to those of DC-B.
