RECOMMENDED ROUGH IN OPENING FOR 6SDZE AND MPRO6DZE
GLASS OVERLAY DOOR

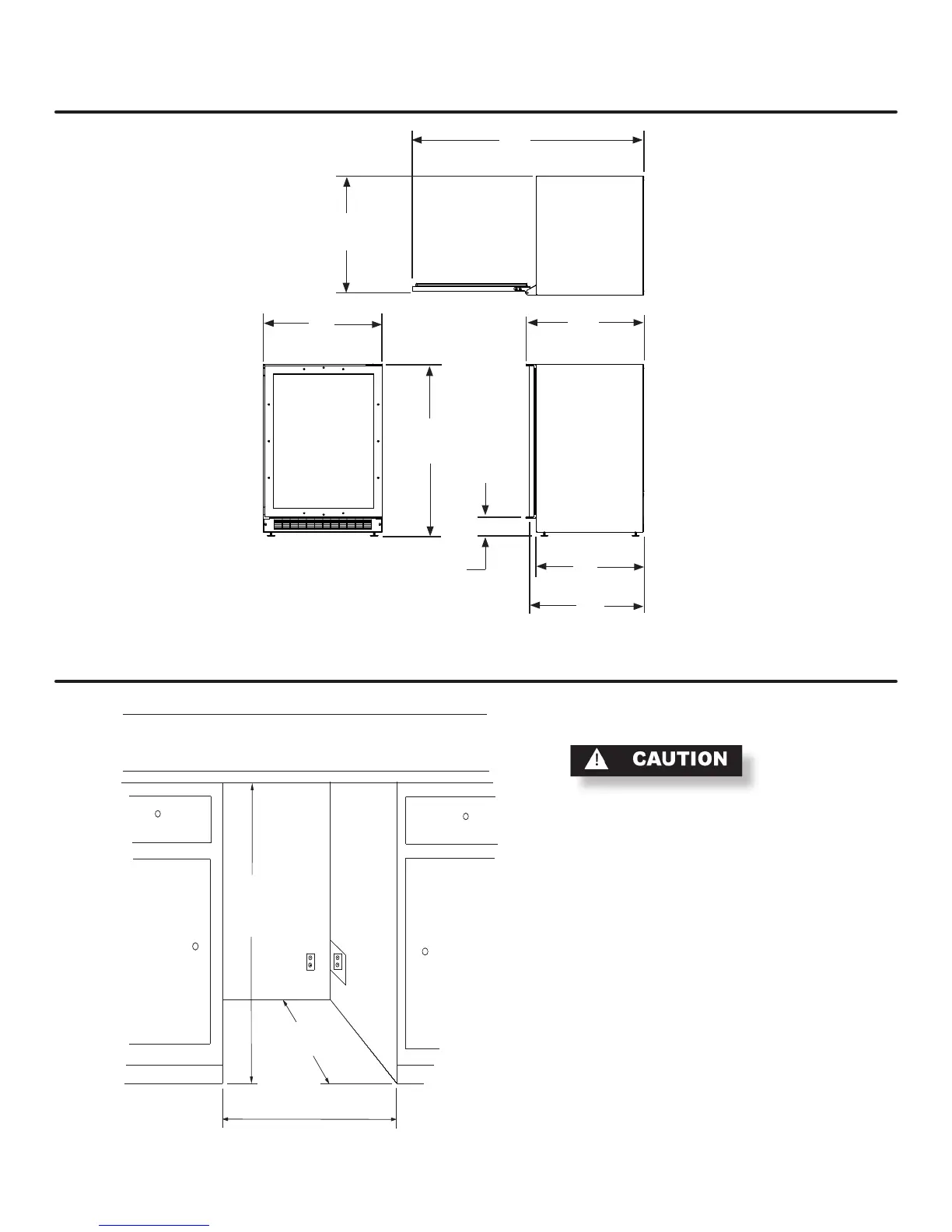

DIMENSIONS FOR 6SDZE AND MPRO6DZE GLASS OVERLAY DOOR
10
*To face of door
without custom panel.
24" (61 cm)
*24" (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: A grounded 115 volt,
15 amp dedicated circuit is required.
Power outlet can be located in the back wall
behind unit. Add 1" to depth for thickness of
plug, or recess outlet 1" into the wall. Power
outlet can also be installed in adjacent cabi-
netry with a cutout for routing of power cord.
Follow all local building codes when installing
electrical and unit.
Product weight = 136 lbs. (61.8 kg.)
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
** 34
1
⁄8" to 35
1
⁄8"
(86.7 to 89.2cm)
23
7
⁄8"
(60.7cm)
3" to 4"
(7.6 to 10.2cm)
33
7
⁄8" to 34
7
⁄8"
(86.1 to 88.6cm)
21
9
⁄16"
(54.8cm)
22
29
⁄32"*
(58.2cm)
23
19
⁄32"
(59.9cm)
23
1
⁄32"
(58.5cm)
46
1
⁄2"
(118.1cm)
