FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Step 2: Remove door
Remove the top hinge pin from the hinge with an
1
⁄8" allen
wrench. Remove the door by angling the top of the door
outward and lifting the door off the bottom hinge.
(See detail in Figure 6).
Step 3: Remove gasket
Lay the door on its front being careful not to scratch it. To
gain access to the screw holes remove the door gasket by
peeling up and out of the channel.
Step 4: Cut overlay panel
Depending on the wine cellar model cut the overlay panel
to the dimensions shown. Use Figure 7 and Table A for
glass door models.
For overlay with lock option panel thickness to be
3
⁄4" (19mm) maximum to
5
⁄8" (16mm) minimum.
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
For the door to close properly it is necessary to maintain a
minimum space of
9
⁄32" (7mm) between the door and cabi-
net ange (see Figure 6). This space can be adjusted by
adjusting the top and bottom hinge adapter brackets.
11
Step 1: Verify door alignment
Verify that the door is aligned correctly with the cabinet
prior to fabricating the custom panel. Failure to do so could
result in mis-alignment of the custom panel with the hinge
bracket. The door should be parallel to the sides and top of
the refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the upper
and/or lower hinge adapter brackets, located on the top
and bottom of the door, and adjusting the door side to side.
Use a
5
⁄32" allen wrench for this procedure. (See Figure 6
below). When nished aligning the door, tighten the screws
securely.

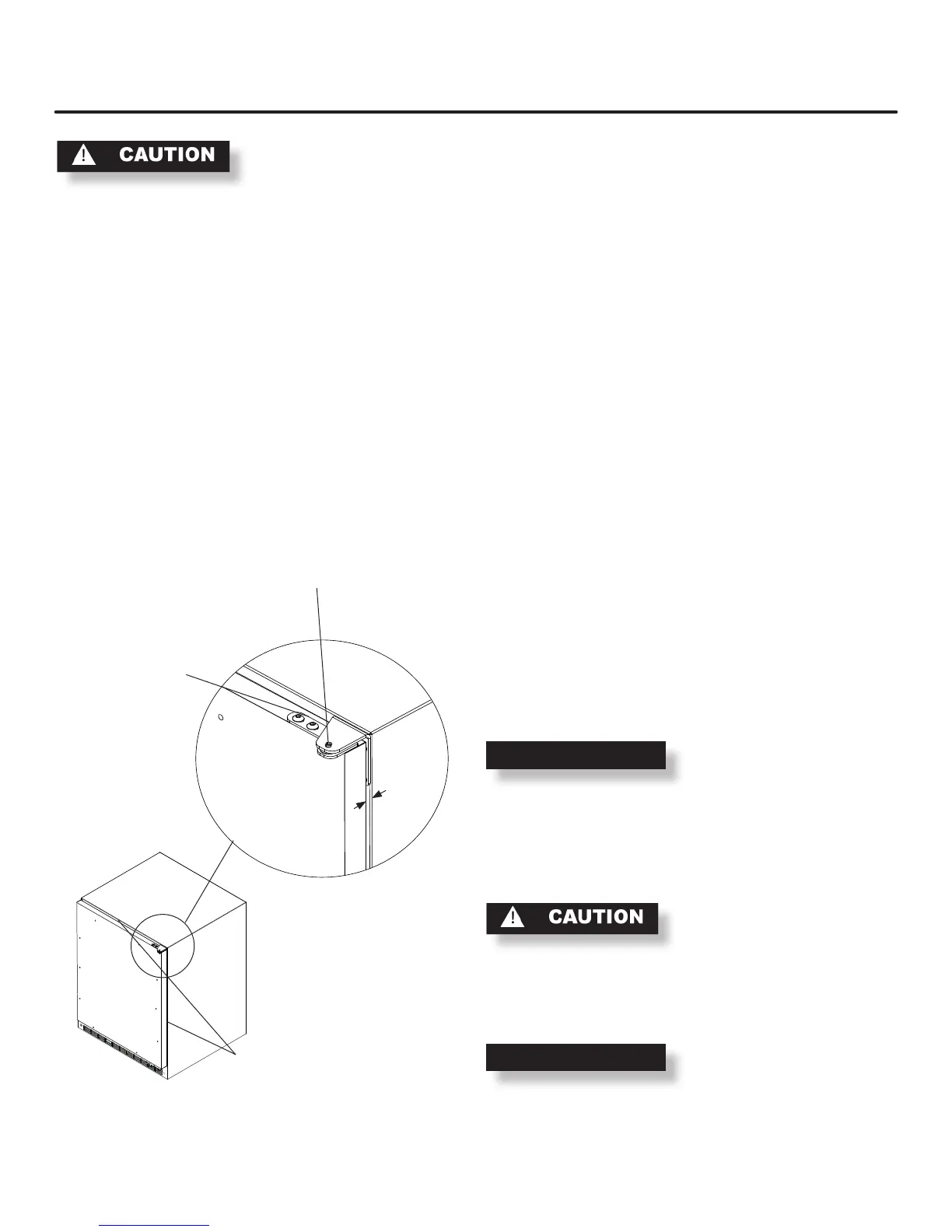

Figure 6
Door should be
parallel to top
and sides of
refrigerator.
Hinge adapter bracket
located on the top and
bottom of the door.
Remove top hinge
pin to remove the
door.
9
⁄32"
(7mm)
