Engine Component Removal and Installation

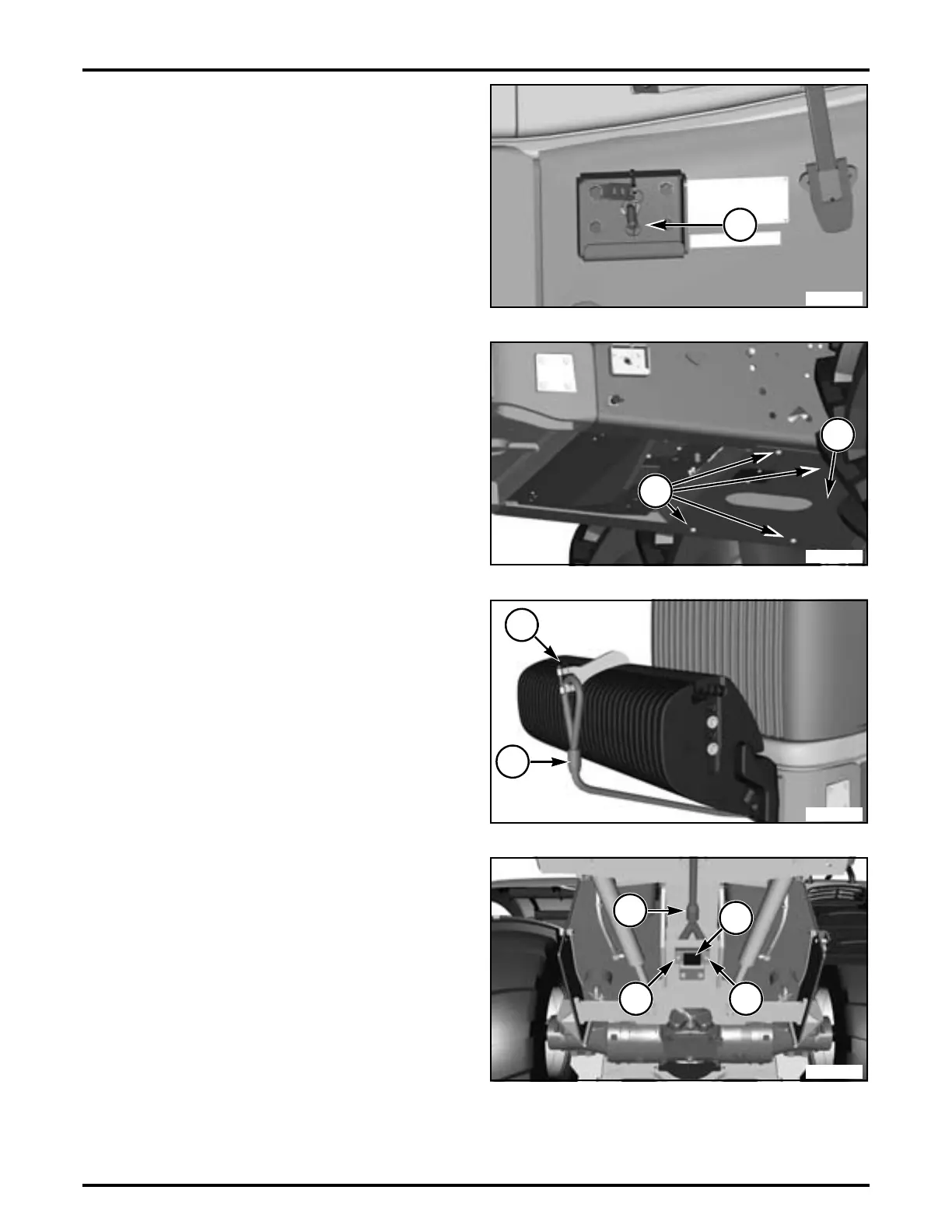

FIG. 25: Disconnect battery at battery disconnect switch.
Rotate and remove key (1) to disconnect the battery
power.
FIG. 26: Remove fanblast guard.
Remove four bolts (1) and remove fanblast guard (2). The
weight of the fanblast guard is approximately 55 kg (121
lb).
FIG. 27: Remove tow cable. (Special applications tractor
only).
Remove pin (1) and remove tow cable (2) from the front of
the tractor. The weight of the tow cable is approximately
58 kg (128 lb).
FIG. 28: Remove tow cable. (Special applications tractor
only)
Remove bolts (1) and remove pin (2). Remove tow cable
(3) from the rear of the tractor. The weight of the tow cable
is approximately 58 kg (128 lb).
FIG. 25
1
N012206002
FIG. 26
1
N012606001
2
FIG. 27
1
N041806004
2
FIG. 28
N041806001
11
2
3
