Engine Component Removal and Installation
02-18 79026547 Rev. A

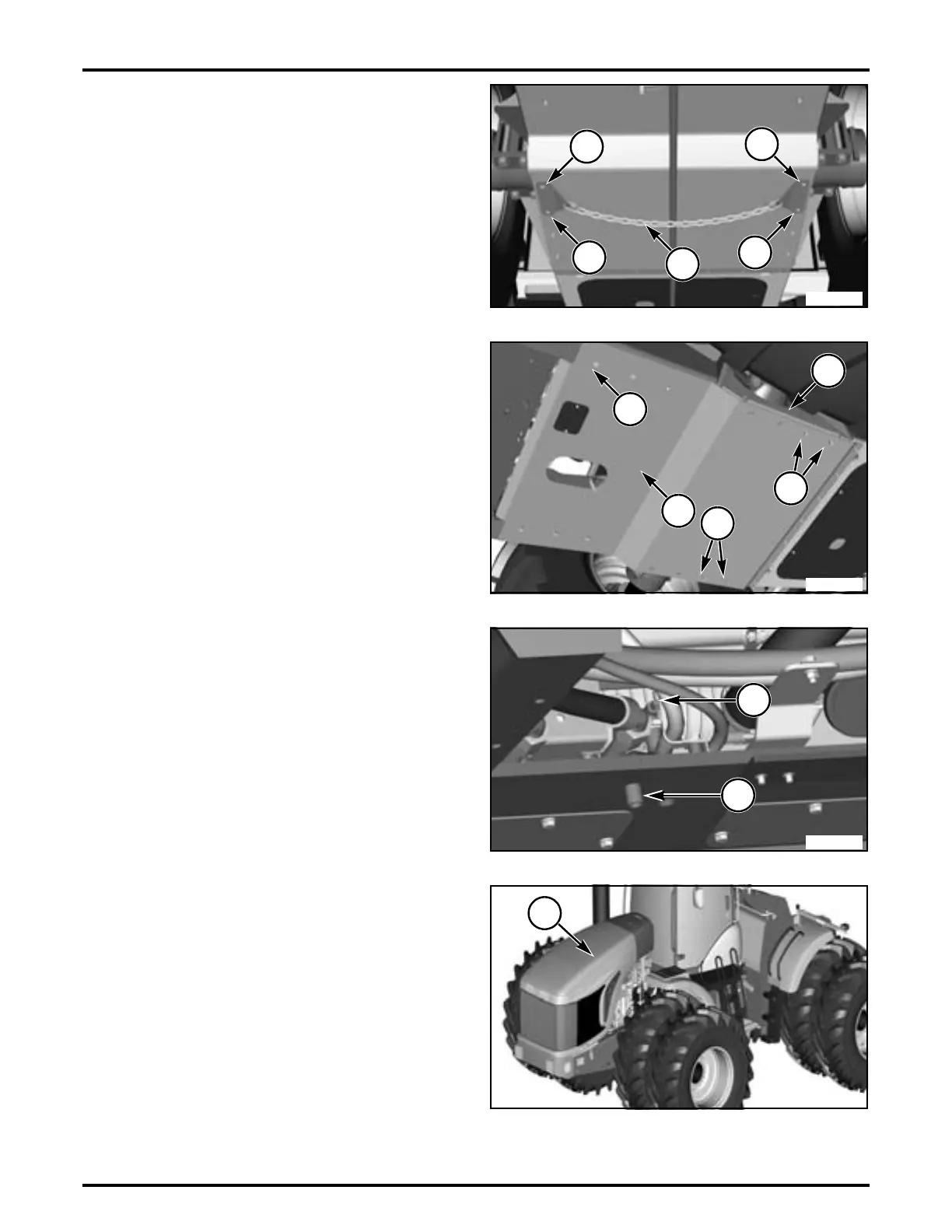

FIG. 29: Remove tow cable guide. (Special applications
tractor only)
Remove bolts (1) and remove tow cable guide (2).
FIG. 30: Remove heavy duty guard. (Special
applications tractor only)
Remove the two bolts (1) and remove the plate (2) on
each side of the heavy duty guard (4). Remove thirteen
bolts (3) and remove heavy duty guard (4). The weight of
the heavy duty guard is approximately 190 kg (419 lb).
FIG. 31: Drain engine coolant.
Place approved container under drain line (1). Turn valve
(2) counter clockwise to open. Drain engine coolant into
an approved container for storage or disposal. When
coolant is finished draining turn valve (2) clockwise to
close.
FIG. 32: Remove hood.
Remove hood (1). Refer to Removal and Installation -
Hood - Removal.
FIG. 29
1
1
1
1
2
N041806003
FIG. 30
3
4
N041806005
1
1
2
FIG. 31
2
1
N012606002
FIG. 32
1
N012606003
