CR 85-X DIGITIZER
• You can hurt your fingers if they are caught between the CR cassette and
the edge of the input slot. Insert the cassette in the input buffer as
described in ‘Reading an image plate’ on page 28. At all times, keep your
fingers clear of the input slot. As soon as the CR 85-X takes in the cassette,
release it.

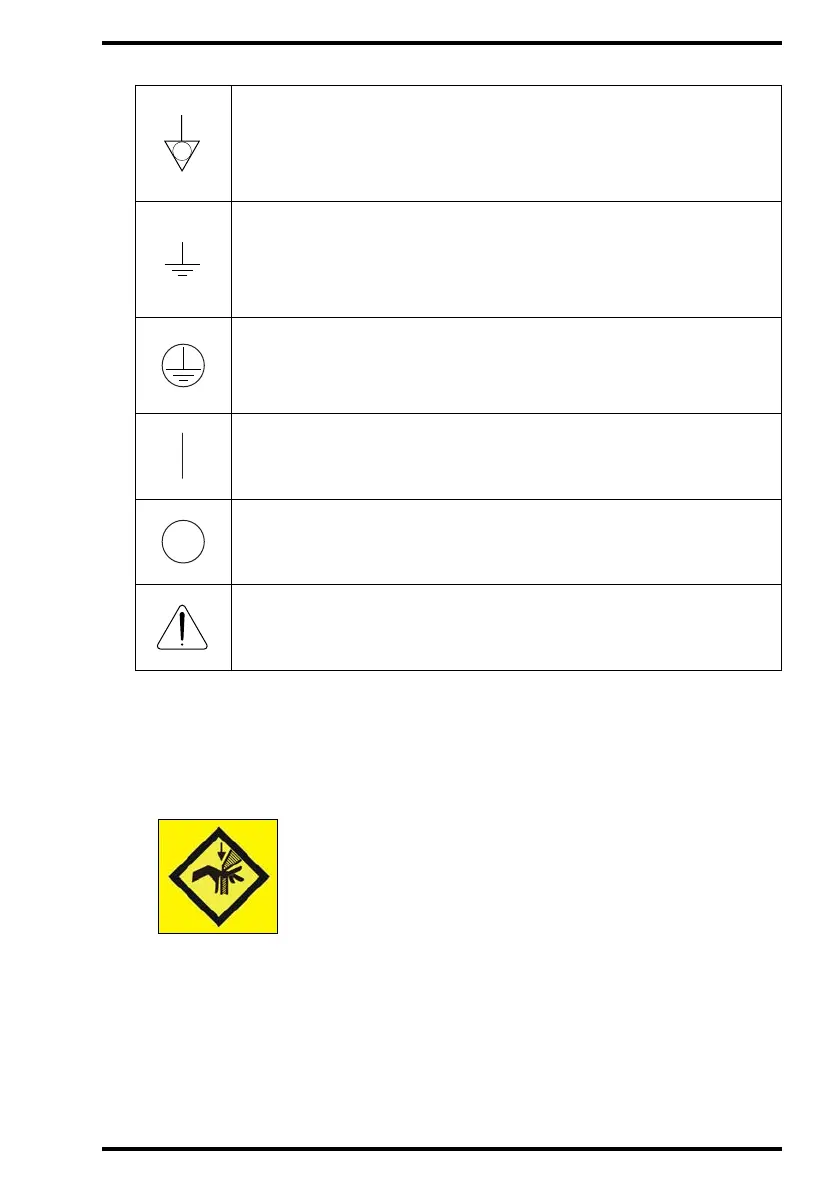

Supplementary protective earth connector:
Provides a connection between the CR 85-X and the potential equalization
busbar of the electrical system as found in medical environments. This plug
should never be unplugged before the power is turned off and the power plug
has been removed.
Intergrounding connector:
Provides a connection between the Digitizer and other equipment which
might exhibit minor ground potential differences. These differences may
degrade the quality of communication between different equipment. Never
remove connections to this terminal.
Protective earth (ground):
Provides a connection between the Digitizer and the protective earth of the
mains. Do not remove this connection, because this will have a negative
influence on the leakage current.
Power on
Power off
Note that the power cord has to be disconnected from the wall outlet in order
to disconnect the unit entirely from the mains.
Precautions for use in USA only:
Make sure that the circuit is single-phase center-tapped, if the Digitizer is
connected to a 240 V/60 Hz source instead of a 120 V/60 Hz source.
