Chapter 1 — Preparing the scanner 10
1. glass plate
2. adjustable document cover
3. rulers
4. power indicator (the right green one)
5. info indicator (the left green one)
6. power switch

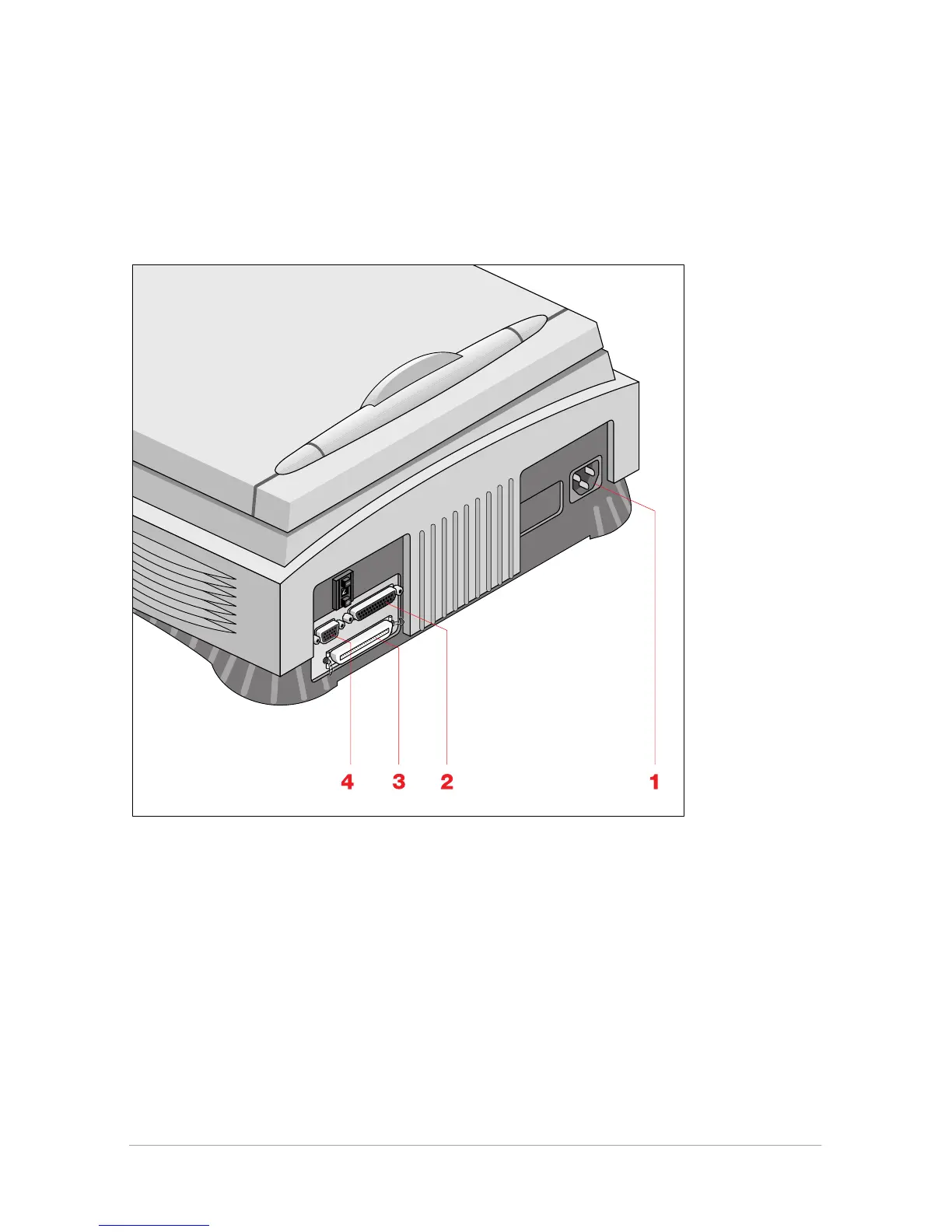

1. power connector
2. 25-pin SCSI connector
3. 50-pin SCSI connector
4. female 15-pin connector (for connecting the transparency option or the document feeder
option)
