Appendix B — Using the document feeder option 40

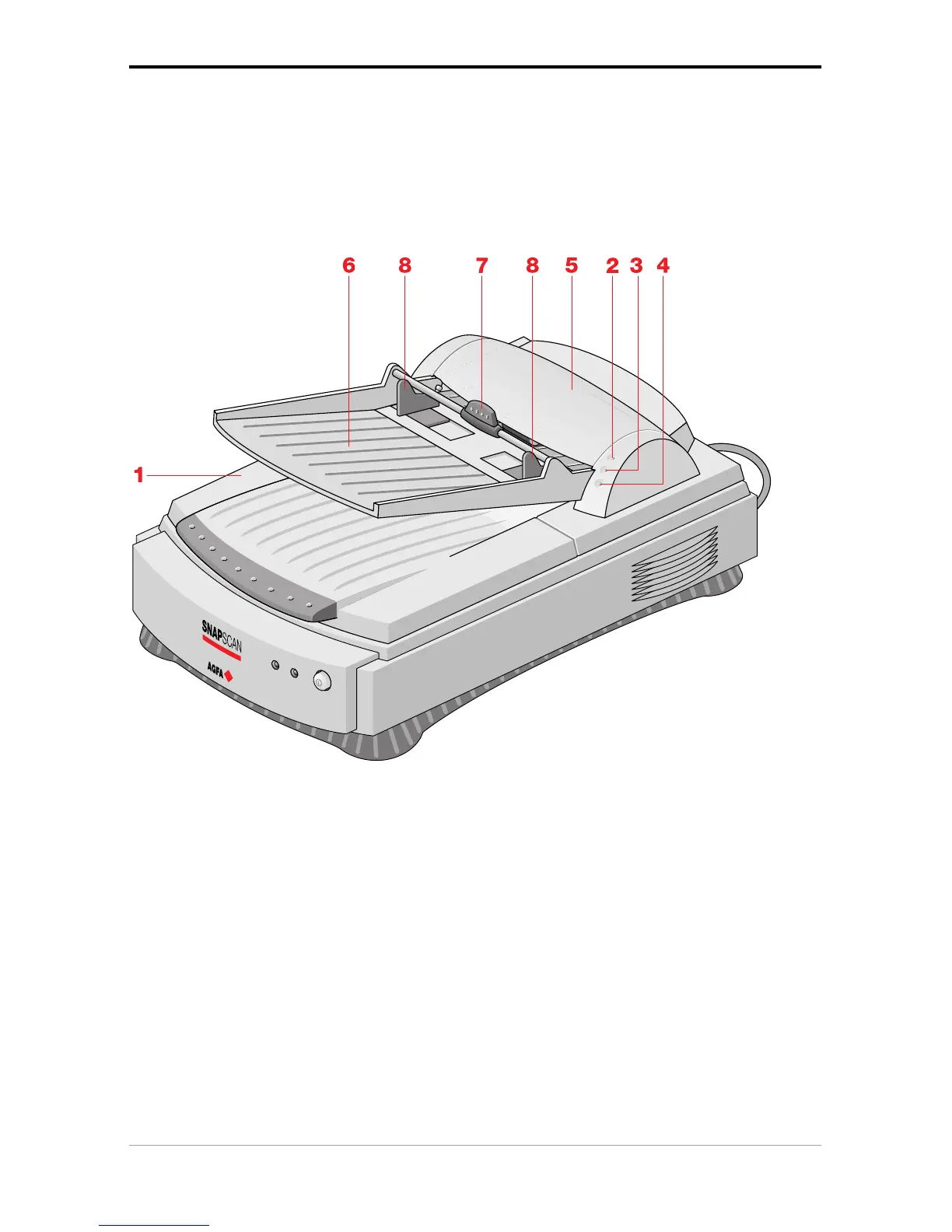

Taking a closer look
Now that you have the ADF out of the box, take a closer look so that you become familiar with its
parts.
1. transportation module
2. power indicator (green)
3. paper out indicator (orange)
4. jam indicator (orange)
5. cover of the transportation module
6. paper tray
7. rotating arm
8. guide arms
