ERI / GPIO

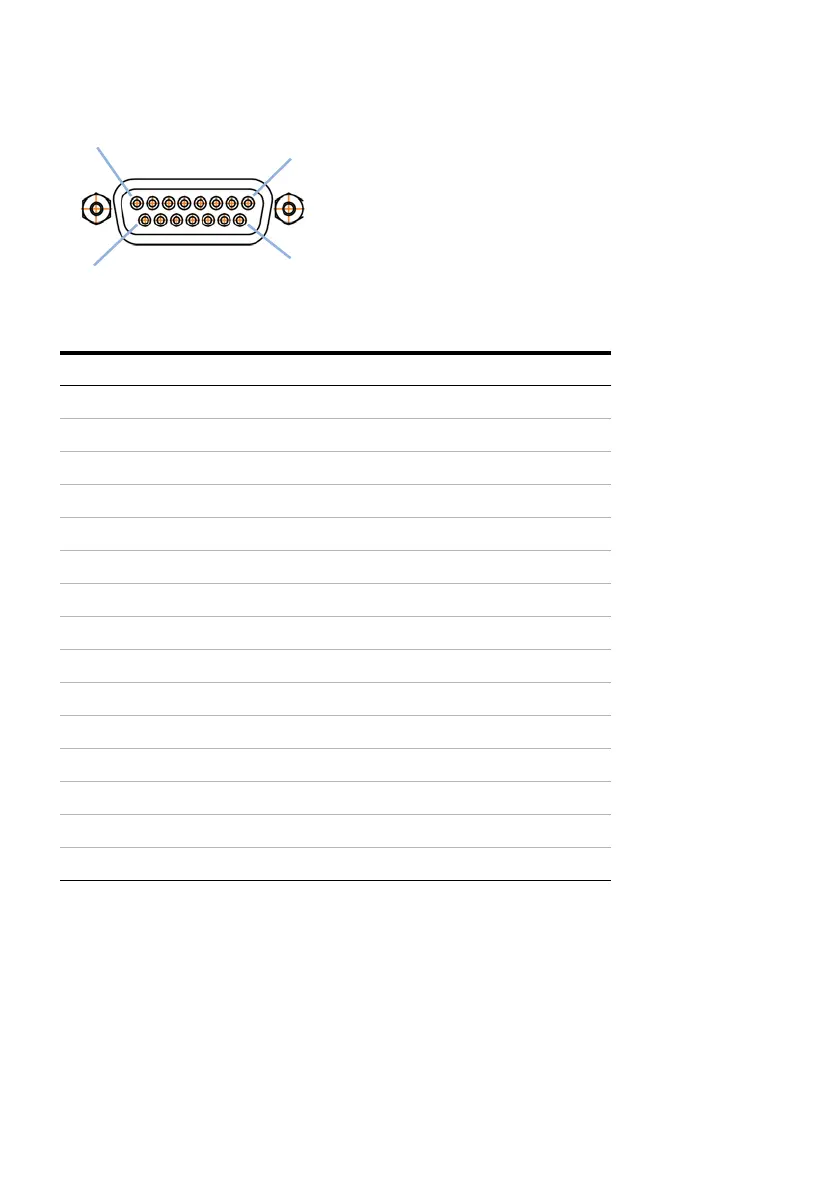

Figure 14 ERI / GPIO
ERI Interface (Enhanced Remote Interface) Description: This interface
contains 8 individual programmable input/output pins. In addition it provides
24 V power and 5 V power and a serial data line to detect and recognize further
add-ons that could be connected to this interface. This way the interface can
support various additional devices like sensors, triggers (in and out) and small
controllers, etc.
Pin Enh. Remote
1IO 1
2IO 2
3IO 3
4IO 4
5IO 5
6IO 6
7IO 7
8IO 8
91wire DATA
10 DGND
11 +5 V ERI out
12 PGND
13 PGND
14 +24 V ERI out
15 +24 V ERI out
-
&
&*
.
