207
Chapter 3 Feature
s and Functions
Embedded W
aveform Editor
3
Invert
reflects the waveform a
cross the horizontal axis.

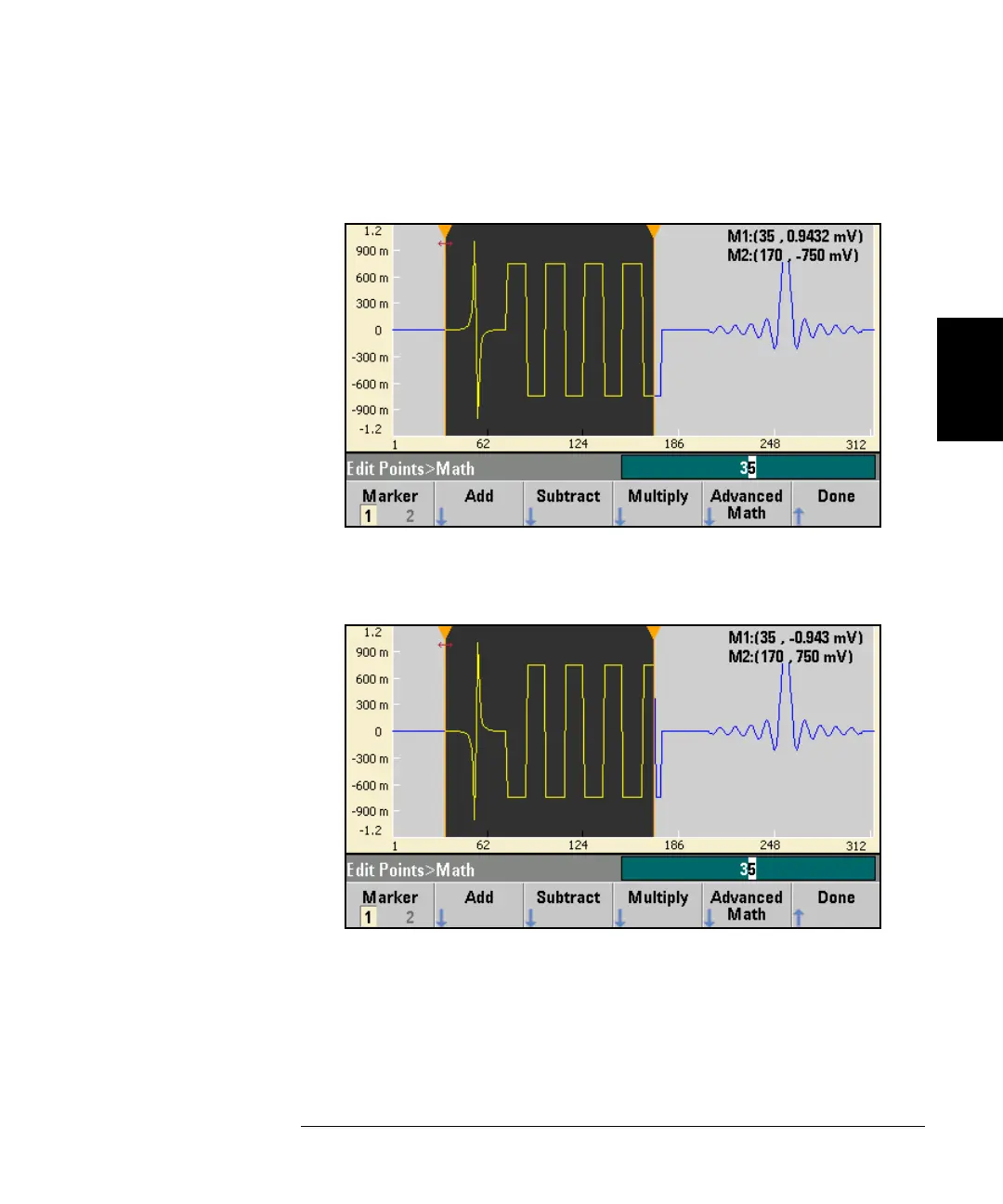

Image Before Operation
Image After Operation
207
209
