208
Chapter 3 Featur
es and Functions
Embedded W
aveform Editor
3
Absolute
replaces all negative waveform
values with their positive
equivalents

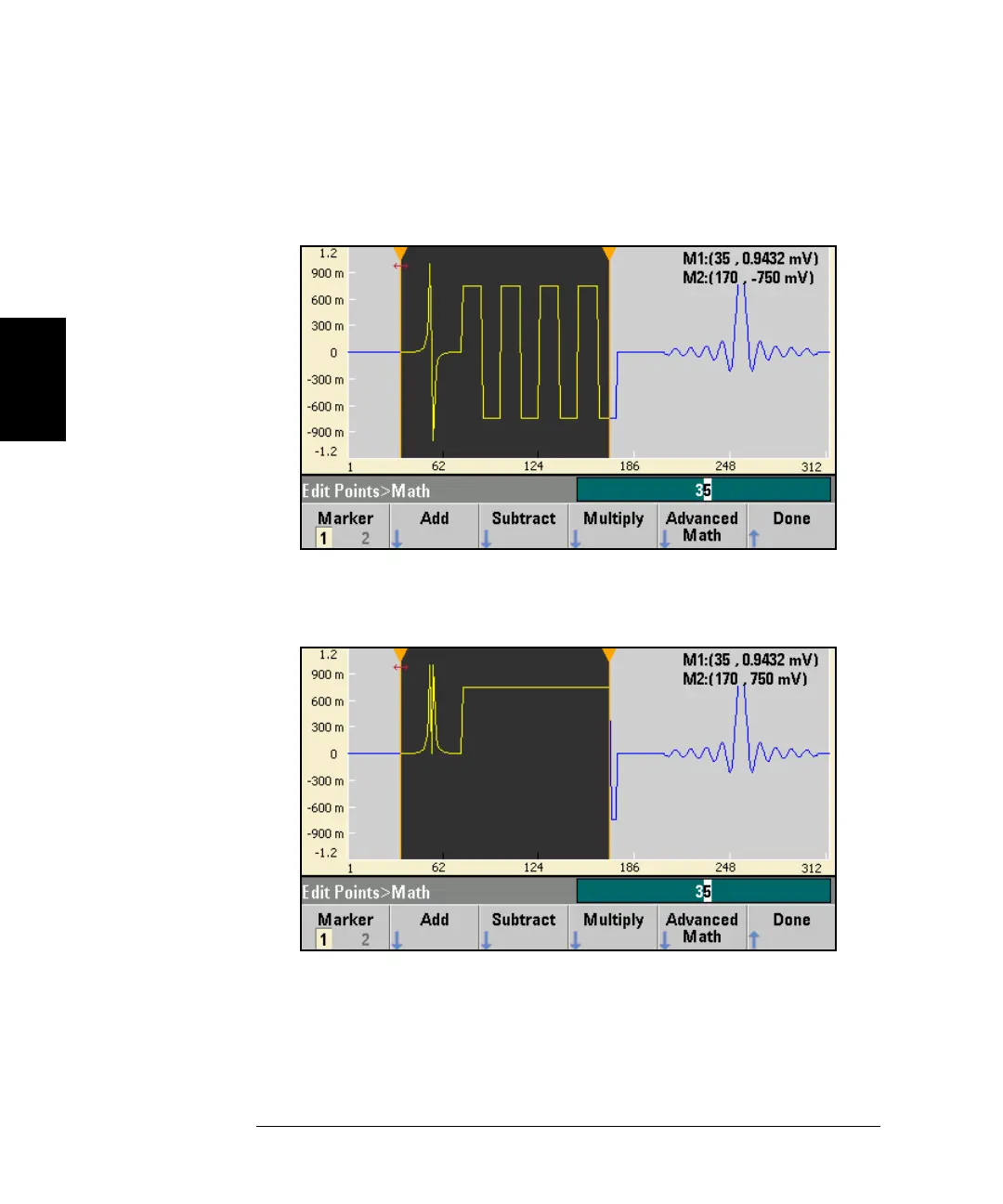

Image Before Operation
Image After Operation
208
