Agilent Technologies 54622D User Manual

3-49
Triggering the Oscilloscope
To use TV triggering
To trigger on all fields of the video signal
To quickly and easily view transitions between fields, or to find the amplitude
differences between the fields, u se the All Fields tr igger mode. The oscillosc ope
will trigger on the first field it finds at the start of acquisition.
1 Press the Trigger More key, then press the TV softkey.
2Press the
Settings softkey, then press the Standard softkey to select the
appropriate TV standard.
3Press the
Mode softkey and select All Fields.

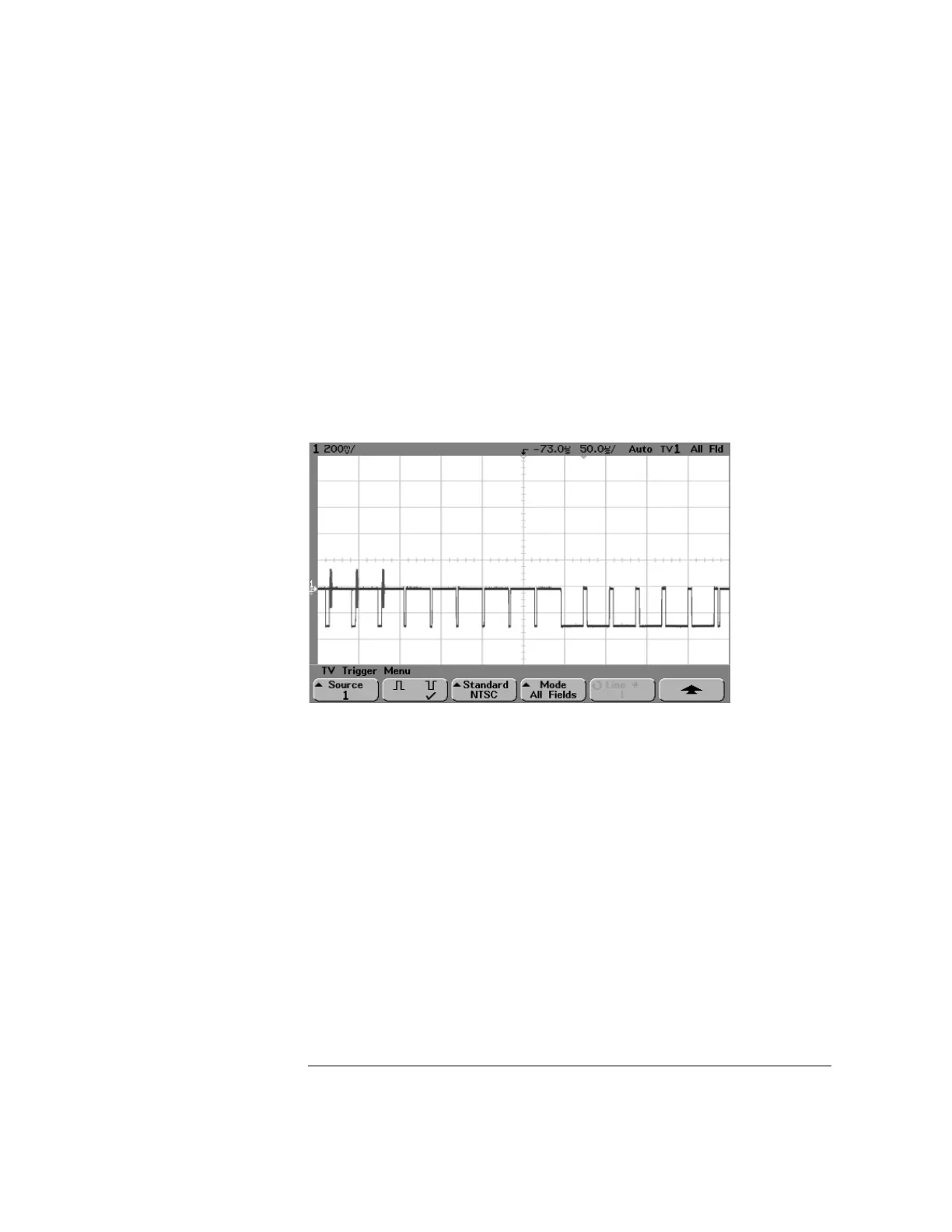

Triggering on All Fields
