Agilent Technologies 54622D User Manual

2-11
Front-Panel Overview
Interpreting the display

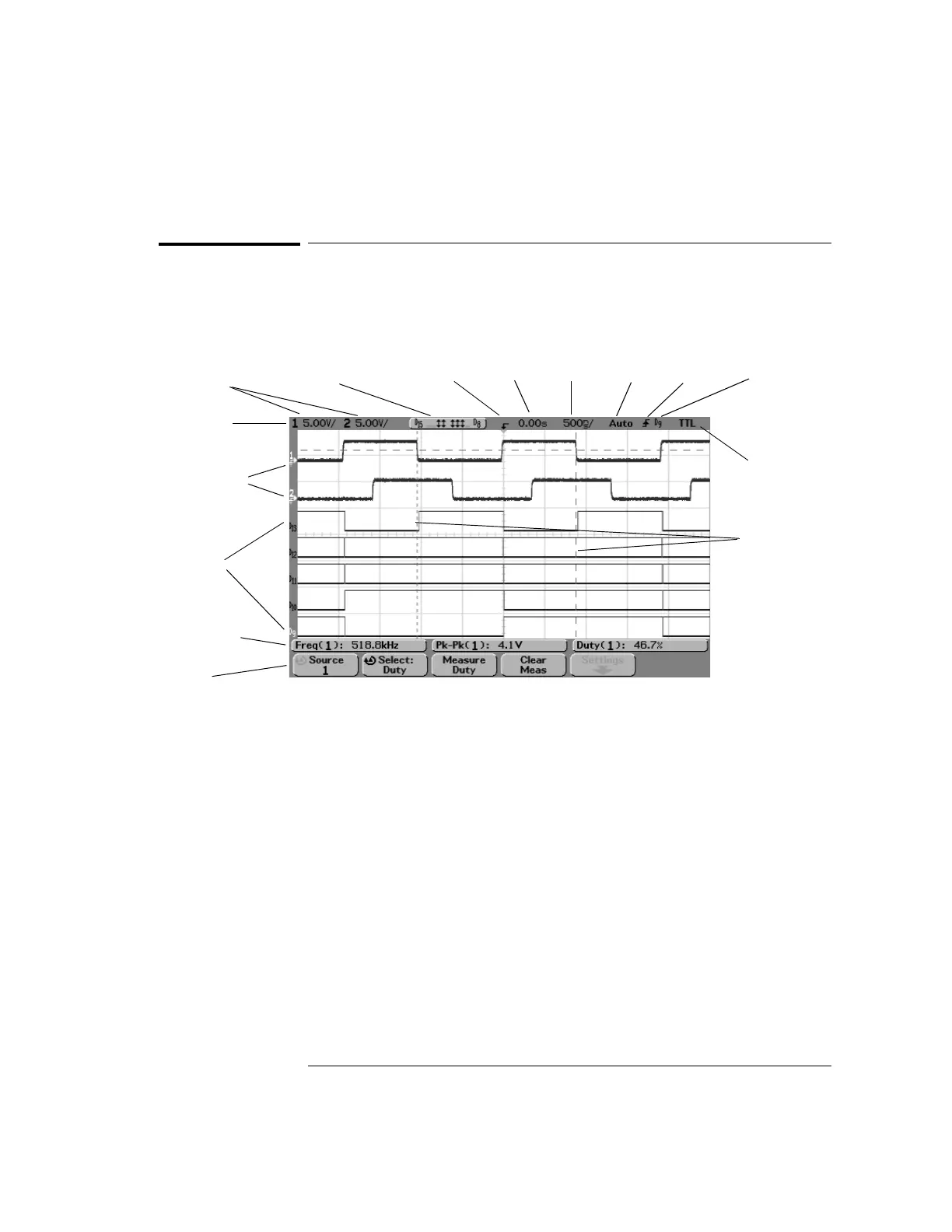

Interpreting the display
The oscilloscope display contains channel acquisitions, setup information,
measurement results, and softkeys for setting up parameters.
Interpreting the display
Status line The top line of the display contains vertical, horizontal, and trigger
setup information.
Display area The display area contains the waveform acquisitions, channel
identifiers, and analog trigger and ground level indicators.
Measurement line This line normally contains automatic measurement and
cursor results, but can also display advanced trigger setup data and menu
information.
Softkeys The softkeys allow you to set up additional parameters for
front-panel keys.
Analog
channels
sensitivity
Digital
channel
activity
Delay
time
Trigger level
or digital
threshold
Trigger
source
Trigger
type
Trigger
mode
Sweep
speed
Analog
channels and
ground levels
Digital
channels
Measurement
line
Softkeys
Trigger point,
time reference
Cursor
markers
defining
measurement
Status line
