Agilent Technologies 655 A Series - Page 163

1
PHONE CONNECTOR
PIN DESIGNATIONS
5 3 1
6 4 2
2
3
4
5
6
7
8
REFERENCED TO
SUPPLY COMMON
REFERENCED TO
EARTH GROUND
600V ISOLATION

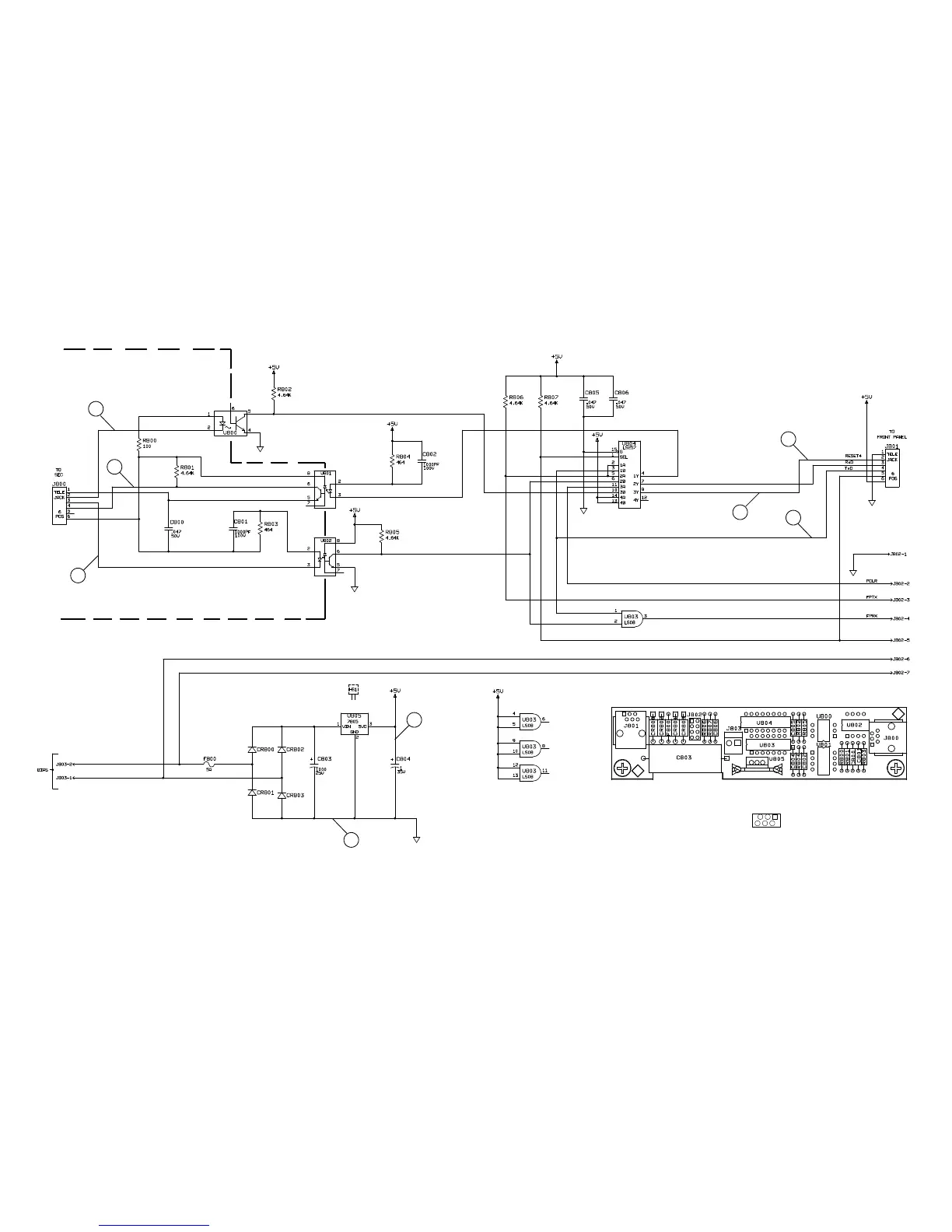

Figure 6-8. A2 Isolator Board Assembly and Schematic Diagram for 654xA & 655xA Models Only
