Agilent Technologies 6624A

Installation 27

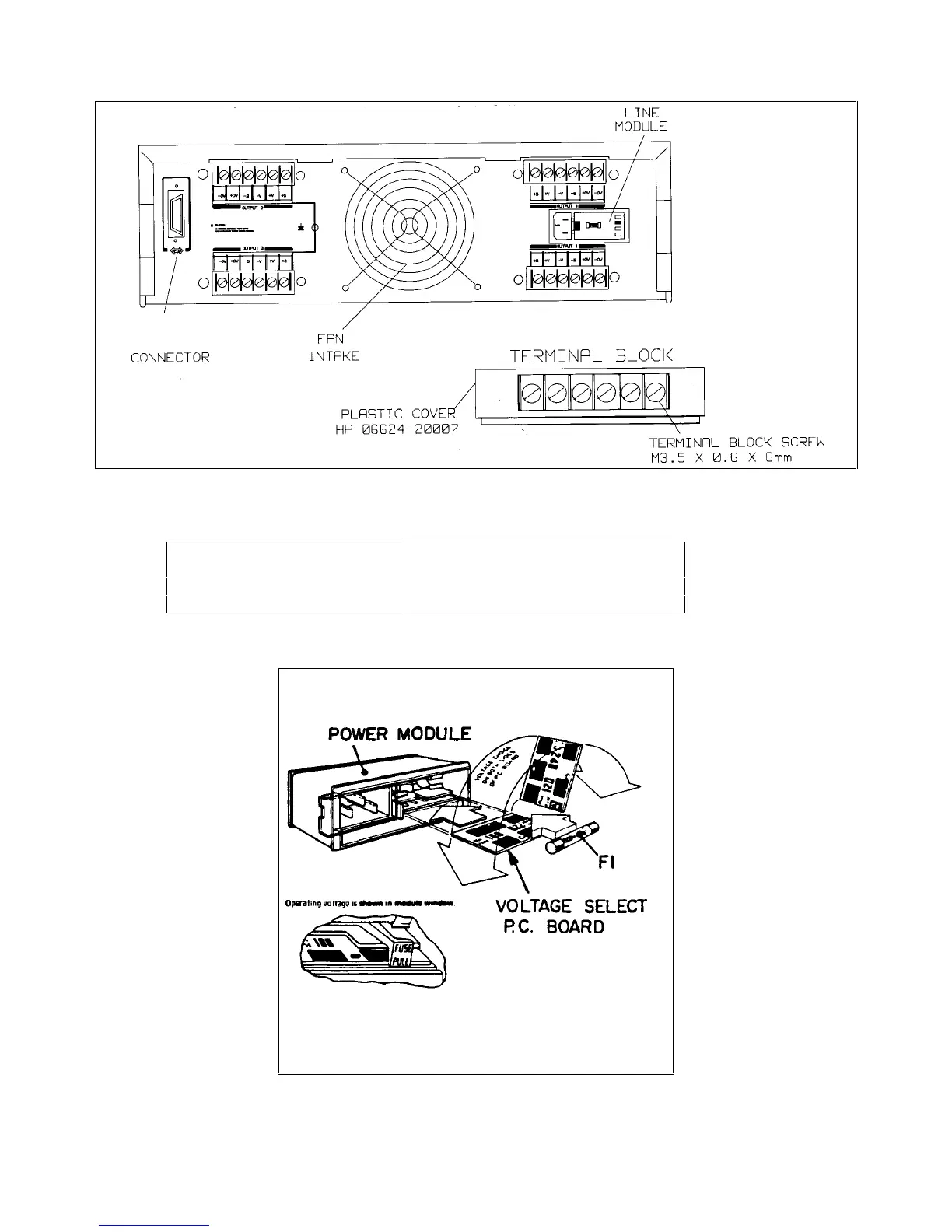

Figure 2-2. Rear Panel Detail (6624A Shown)
Table 2-2 Line Fuses
Line Voltage Fuse Needed Agilent Part Number
(for 1/4 X 1-1/4 in. fuses only)
100/120 V 8AM 2110-0342
220/240 V 4AM 2110-0055
Note All fuses are rated for 250 V.
Figure 2-3. Line Module Detail
GP-IB
