General Information - 1
13
The following table lists some common user-replaceable parts:

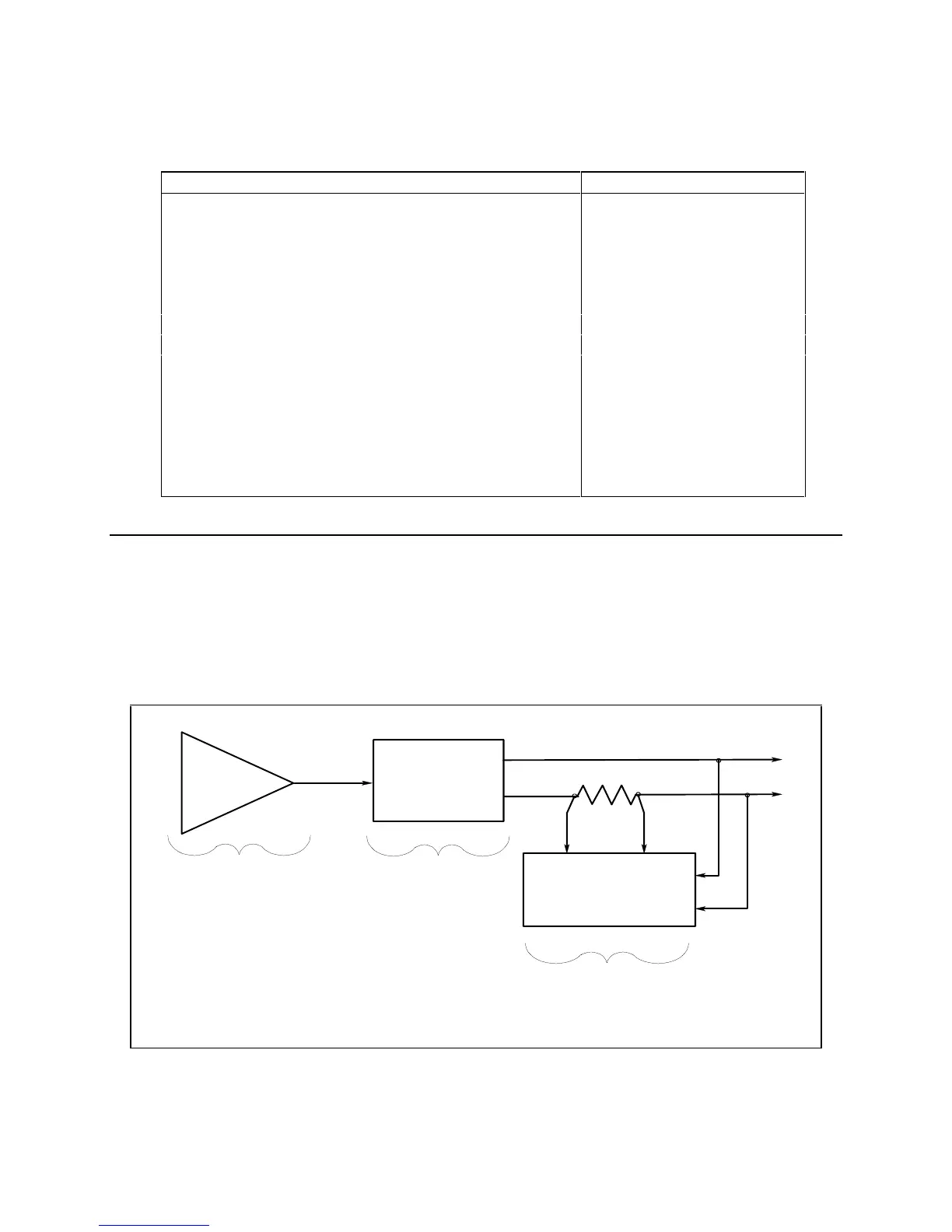

Table 1-2. Operator Replaceable Parts
Item Agilent Part Number
Power cord assembly see "Options"
Rack mount kit see "Options"
4-terminal digital connector plug 1252-1488
Ac input safety cover (with strain relief and bushing) 5040-1676
Screw (3), ac input barrier block (6-32 x 5/16in) N/A
Ac output safety cover 5040-1704
Line fuse for Agilent 6812B (30 AM) 2110-0910
Line fuse for Agilent 6813B (25 AM) 2110-0849
Line fuse for Agilent 6811B (20 AM) 2110-0098
Screw (2), ac output safety cover (m4 x 0.7in) 0515-0053
Screw (5), ac output barrier block (6-32 x 5/16 in) N/A
User’s Guide (this manual) 5962-0829
Programming Guide 5962-0889
Quick Start Guide 5962-0883
Quick Reference Card 5962-0885
Description
The ac source combines three instruments in one unit as shown in the following figure. The function
generator produces waveforms with programmable amplitude, frequency, and shape. The power
amplifier amplifies the function generator signal to produce the ac power for your application. The
measurement functions range from a simple readback of rms voltage and current, to sophisticated
capabilities such as waveform analysis.
Figure 1-1. AC Source Functional Elements
SOURCE
DAC
MEASUREMENT
shunt
POWERMETER
BIPOLAR
AMPLIFIER
WAVEFORM
GENERATOR
BLOCK
FFT ANALYZER
