4 - Front Panel Operation
52
Action Display
1.
Press Voltage to access the Voltage Menu. On the Entry keypad, press 1 0 2 Enter.
VOLT 102
2.
Press ô to access the triggered voltage command. On the Entry keypad, press 1 2 0
Enter.
VOLT 120
3. Access the Voltage Menu again and press ô to access the voltage mode command. On
the Entry keypad, press ¯ or ° to scroll through the mode parameters to obtain
PULSE and press Enter.
VOLT:M PULSE
4.
Press Pulse to access the Pulse Menu. From the Entry keypad, press
. 0 8 3 3 Enter to enter a pulse width of 83.3 milliseconds.
WIDTH .0833
5. Access the Pulse Menu and press ô to access the duty cycle command. From the Entry
keypad, press 3 3 Enter to change the duty cycle to 33%.
DCYCLE 33
6. Access the Pulse Menu and press ô to access the pulse count. On the Entry keypad,
press 4 and Enter.
COUNT 4
7.
Press Trigger Control and Enter to initiate the transient trigger sequence.
INIT:IMMED
8.
Press Shift Trigger. This sends the ac source an immediate trigger signal to generate
the four output pulses.
Note: The ac source output returns to 102 V at the completion of the output pulses.
102 V 60 HZ
List Transient
Lists are the most flexible means of generating multiple or synchronized transient outputs. The following
figure shows a voltage output generated from a list. The output shown represents three different ac
voltage pulses (160 volts for 33 milliseconds, 120 volts for 83 milliseconds, and 80 volts for 150
milliseconds) separated by 67-millisecond, 0-volt intervals.
The list specifies the pulses as three voltage points (point 0, 2, and 4), each with its corresponding dwell
point. The intervals are three zero-voltage points (point 1, 3, and 5) of equal intervals. The count
parameter causes the list to execute twice when started by a single trigger.
NOTE: From the Output Menu, execute the *RST command to reset the ac source. This is
necessary because any previously programmed functions remain in effect until cleared.

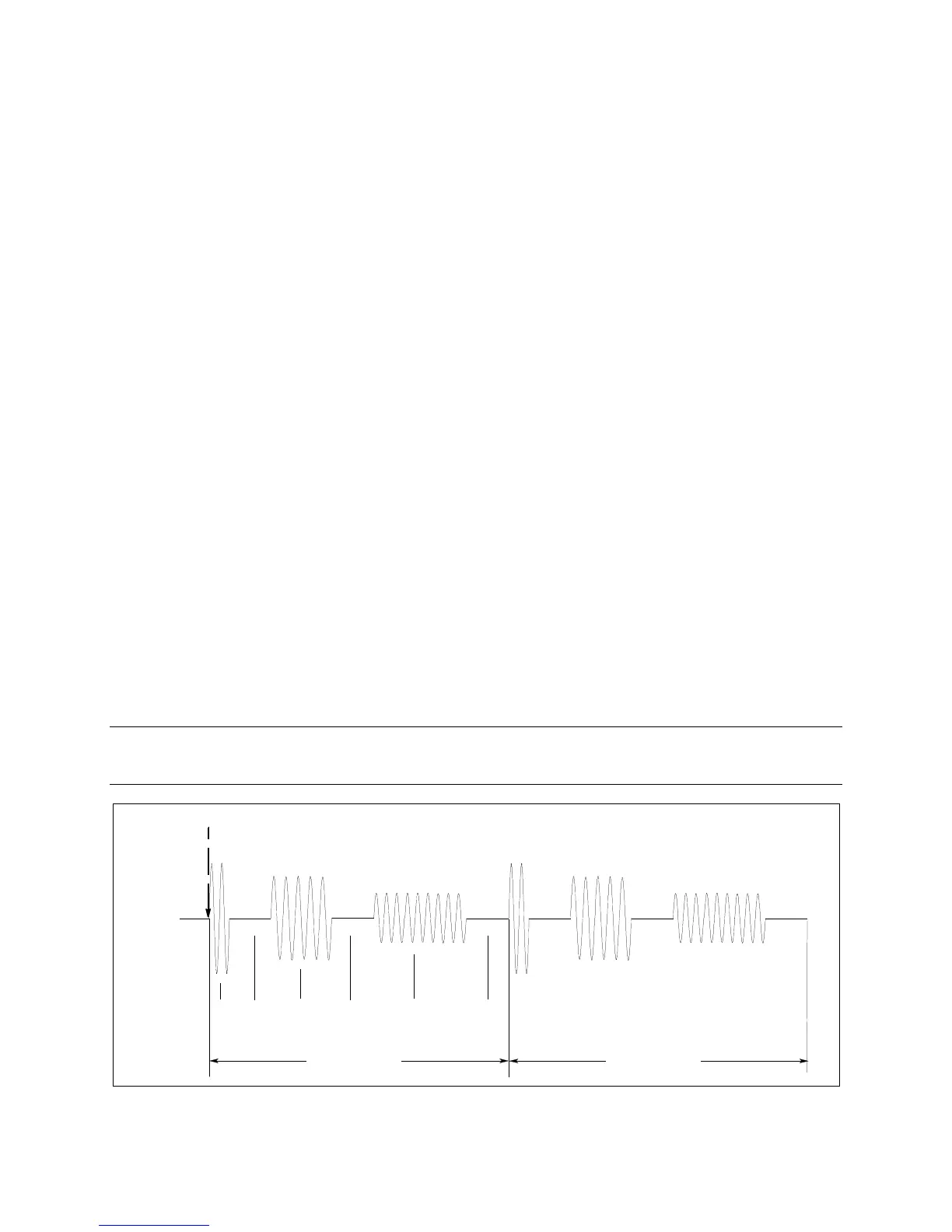

Figure 4-6. List Transients
160 Vrms
Trigger
01
2
34 5
List Count = 1 List Count = 2
