Applications The PACT Application

256 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition

NOTE If you choose <High> or <Medium> as the [Dynamic] parameter and

<Continuous> sweep mode, the graph will update at the end of each

sweep. Figure 167 shows a graph with low dynamic range that is the

result of a single sweep. Figure 168 shows a graph with high dynamic

range that is the result of a three sweeps that were combined using a

"stitching" process.

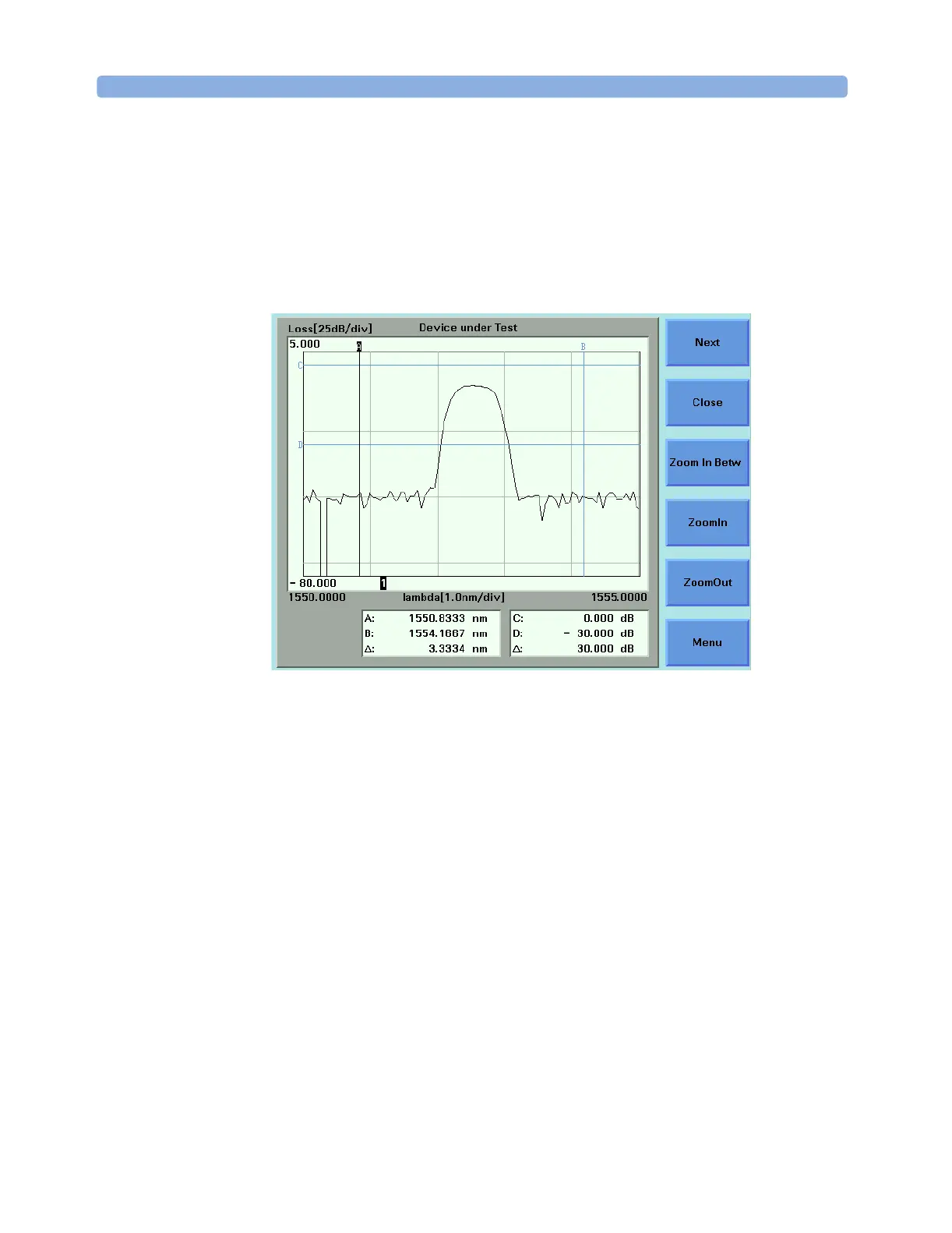

Figure 167 Low Dynamic Range
