Applications The Stability Application

244 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition

21 Press [Analysis]. The Stability Analysis screen appears as shown in

Figure 159 for the Agilent 8164A/B and Figure 160 for the

Agilent 8163B.

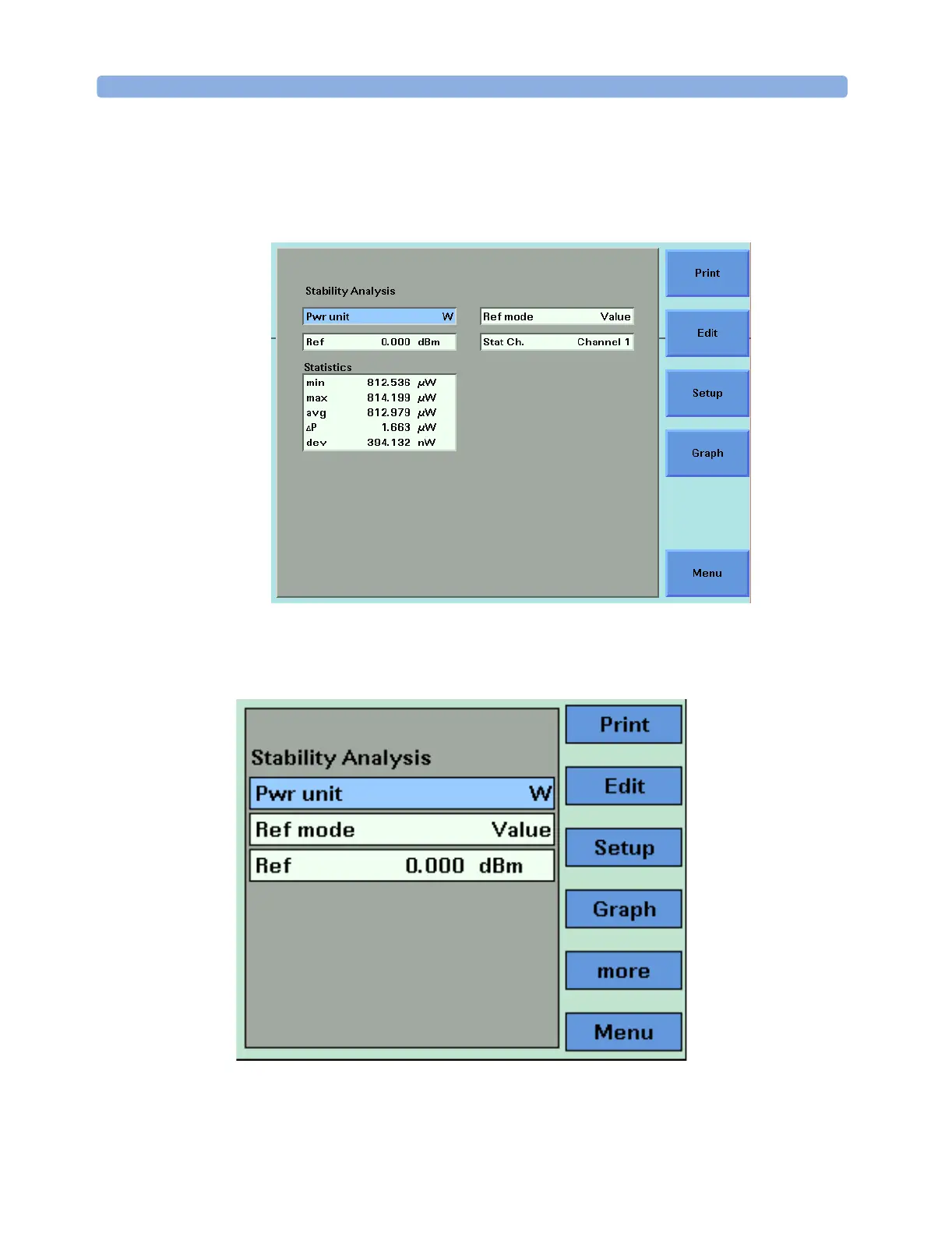

Figure 160 The Agilent 8163B Stability Analysis Screenn - First Screen

Figure 159 The Agilent 8164A/B Stability Analysis Screen
