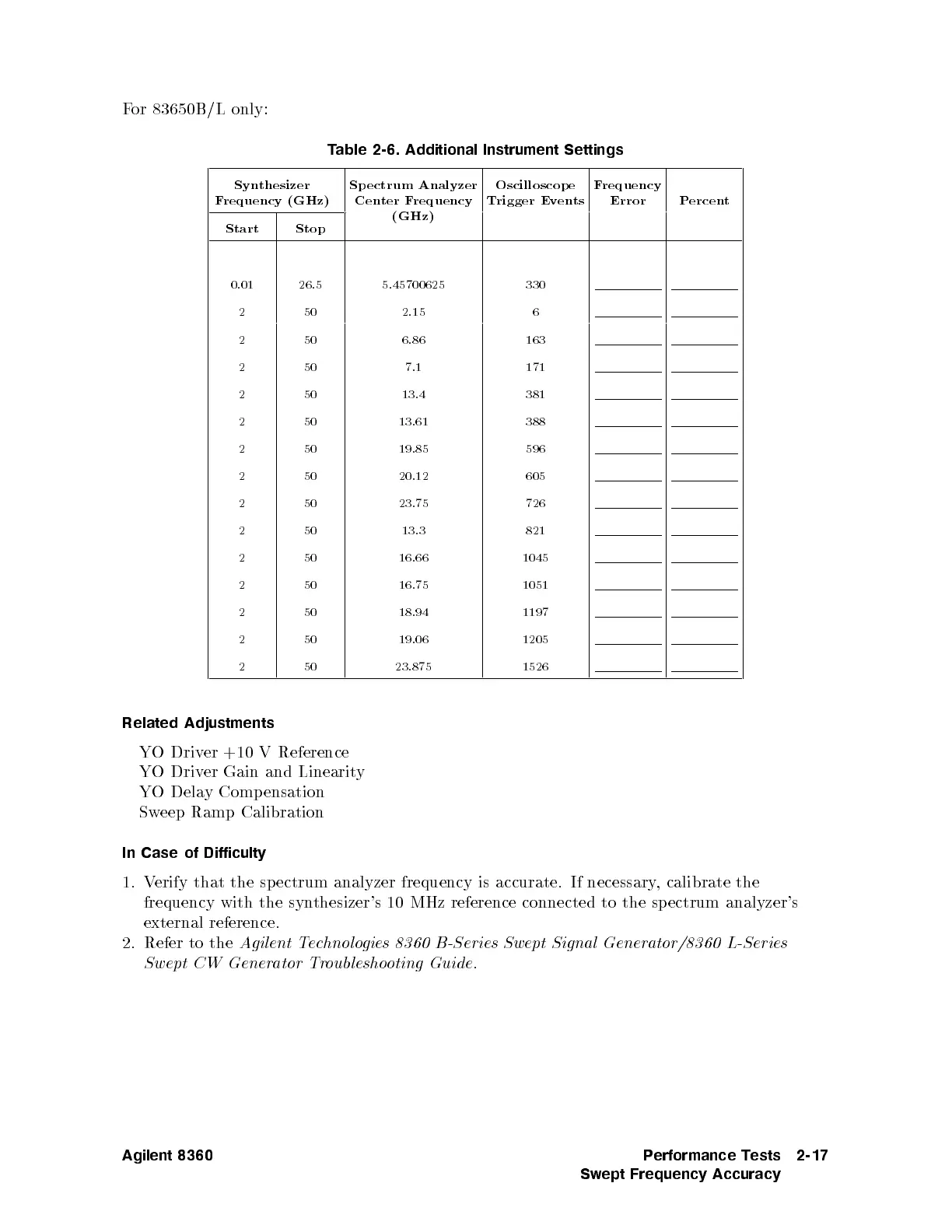

Agilent Technologies 8360 B Series Service Guide

For
83650B/L
only:
T
able
2-6.
Additional Instrument
Settings
Synthesizer
F
requency
(GHz)
Sp ectrum
Analyzer
Cen
ter
F
requency
(GHz)
Oscilloscope
T
rigger
Ev
en
ts
Frequency
Error P
ercen
t
Start Stop
0.01 26.5 5.45700625 330
2 50 2.15 6
2 50 6.86 163
2 50 7.1 171
2 50 13.4 381
2 50 13.61 388
2 50 19.85 596
2 50 20.12 605
2 50 23.75 726
2 50 13.3 821
2 50 16.66 1045
2 50 16.75 1051
2 50 18.94 1197
2 50 19.06 1205
2 50 23.875 1526
Related
Adjustments
YO
Driv
er
+10
V Reference
YO
Driv
er
Gain and
Linearity
YO
Dela
y
Comp
ensation
Sweep
Ramp
Calibration
In Case of Difficulty
1. V
erify that the spectrum analyzer frequency is accurate. If necessary
, calibrate the
frequency with the syn
thesizer's 10 MHz reference connected to the
spectrum analyzer's
external
reference.
2. Refer to the
Agilent T
echnologies 8360 B-Series Swept Signal Gener
ator/
8360 L-Series
Swept CW Gener
ator T
r
oubleshooting Guide
.
Agilent 8360 Performance Tests
Swept Frequency Accuracy
2-17

Agilent Technologies 8360 B Series Specifications
