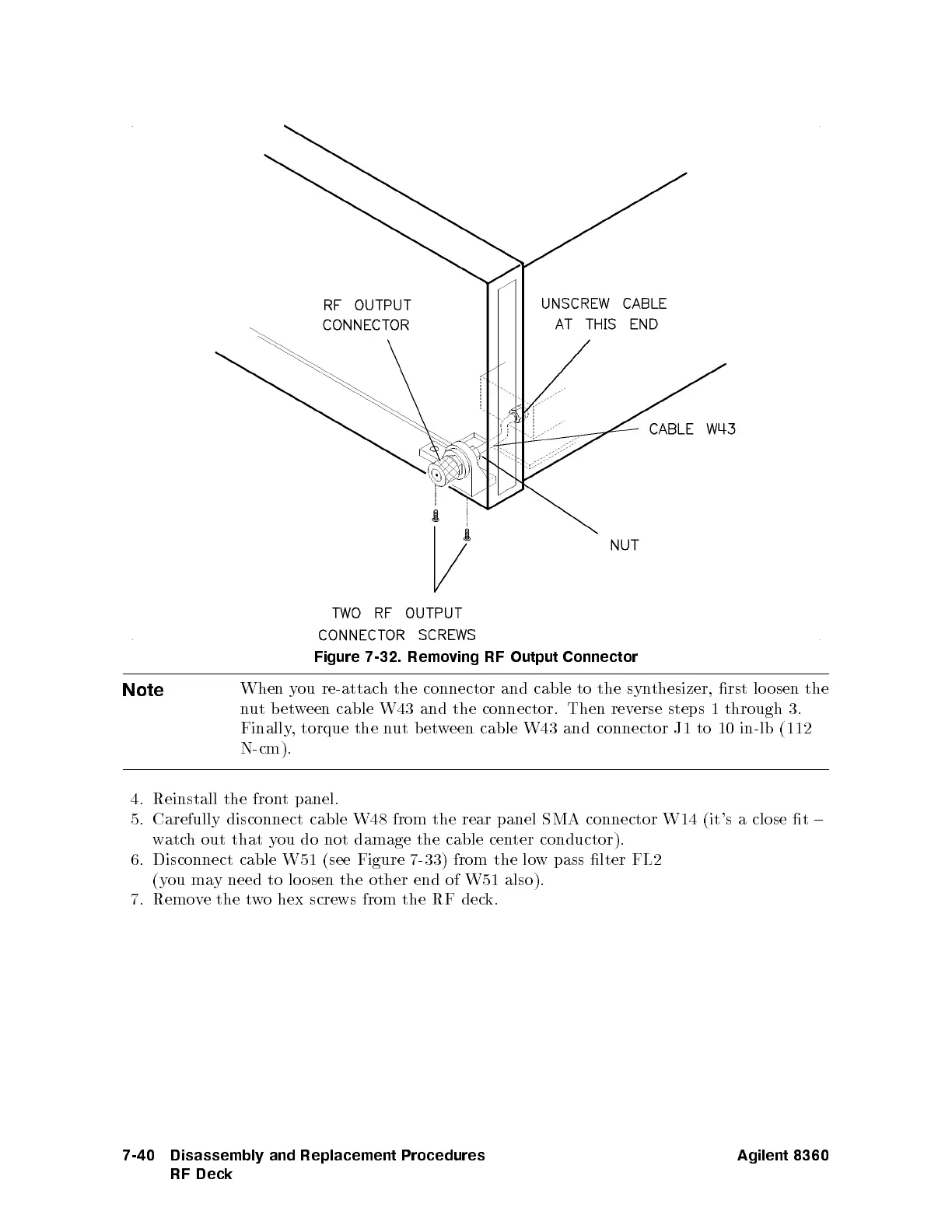

Figure
7-32.
Remo
ving
RF
Output
Connector
Note
When
y
ou
re-attac
h
the
connector
and
cable
to
the
synthesizer,
rst lo
osen
the
n
ut
b
et
w
een
cable
W43
and
the
connector.
Then
rev
erse
steps
1
through
3.
Finally
,
torque
the
n
ut
b
et
w
een
cable
W43
and
connector
J1
to 10
in-lb (112
N-cm).
4.
Reinstall
the
fron
t panel.
5.
Carefully
disconnect
cable
W48
from
the
rear
panel
SMA connector
W14 (it's
a close
t {
w
atc
h
out that
y
ou
do
not
damage
the
cable
cen
ter
conductor).
6. Disconnect cable W51 (see Figure 7-33
) from the lo
w pass lter FL2
(you ma
y need to lo osen the other
end of W51 also).
7. Remo
ve the t
wo hex screws from the RF dec
k.
7-40 Disassembly and Replacement Procedures
RF Deck
