Remo
v
al
Refer to
Figure 7-23
.
1.
Complete
\1.
Preliminary
Steps",
\7.
J1 RF
Output Connector
Remov
al", and
\5. Rear
P
anel Remo
val"
before
contin
uing.
2.
Disconnect
cable
W17
and
the
pin-lo
c
king
tab,
W30.
3.
Without
remo
ving
the
screws,
press
the
sho c
k-mount
pads through
the sheet
metal
holes.
4.
Slide the
reference standard
out.

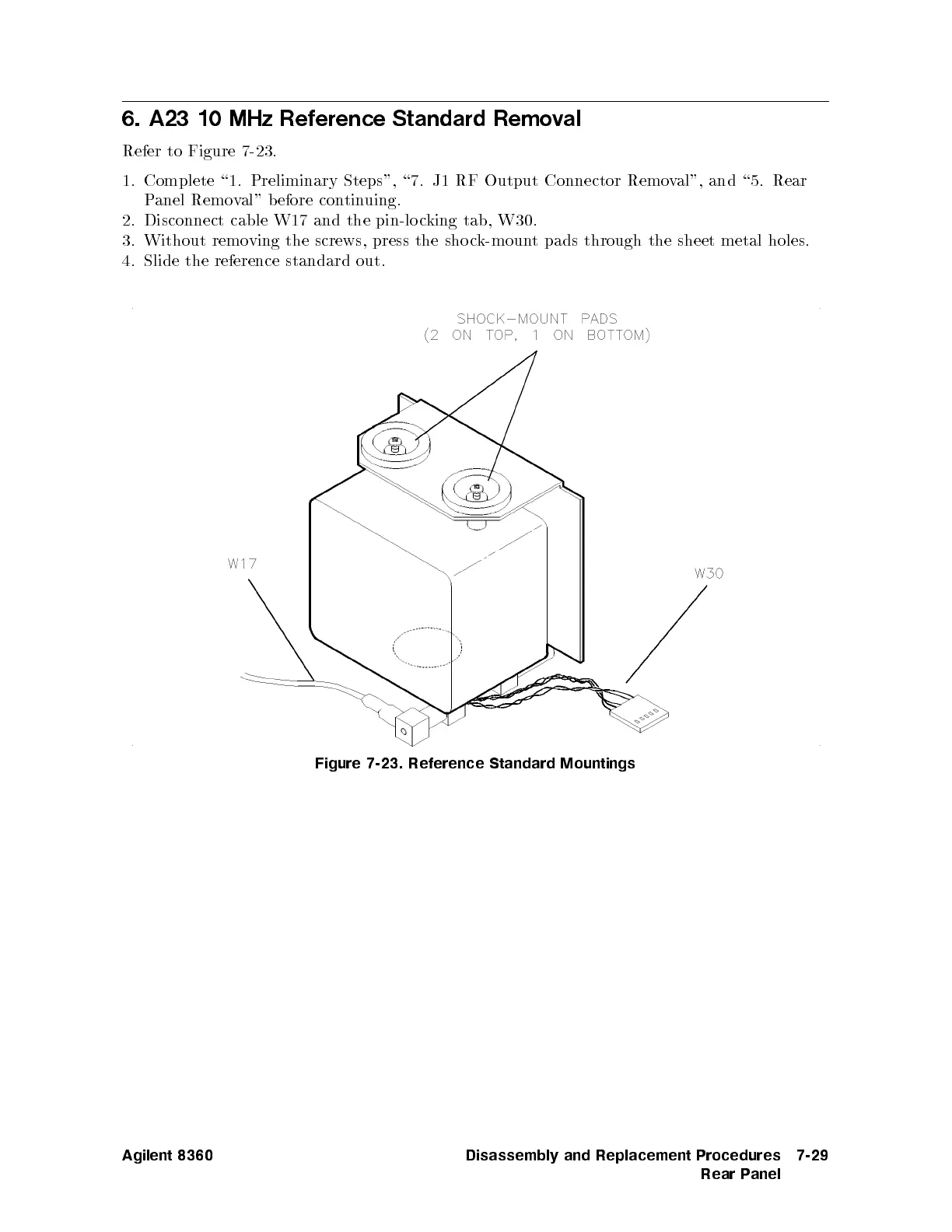

Figure
7-23.
Reference
Standard
Mountings
Agilent 8360 Disassembly and Replacement Procedures
Rear Panel
7-29
