Agilent Technologies 83650B Service Guide

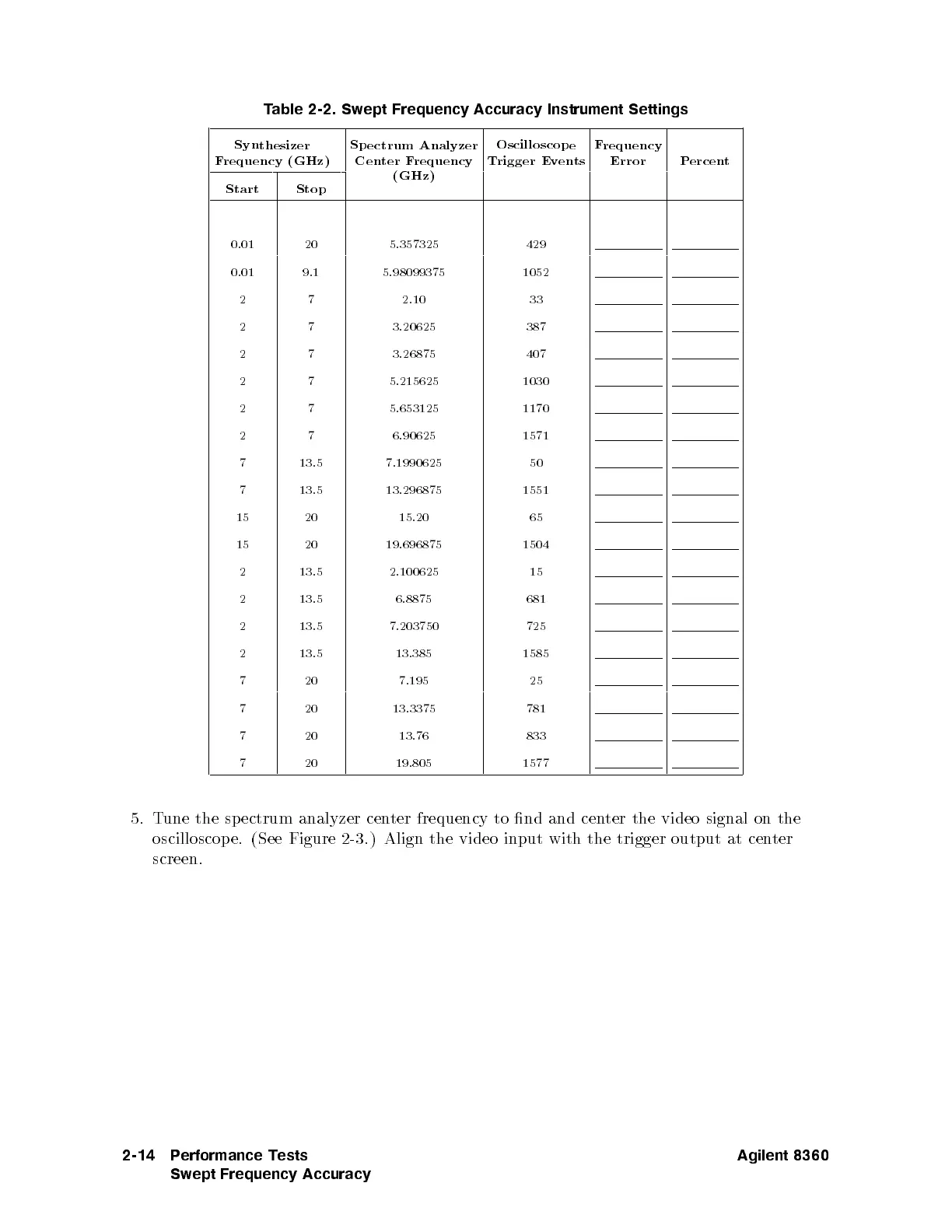

Table
2-2. Sw
ept Frequency
Accuracy Instrument
Settings
Syn
thesizer
F
requency
(GHz)
Sp
ectrum Analyzer
Cen
ter
F
requency
(GHz)
Oscilloscop
e
T
rigger
Ev
en
ts
F
requency
Error P
ercen
t
Start Stop
0.01 20 5.357325 429
0.01 9.1 5.98099375 1052
2 7 2.10 33
2 7 3.20625 387
2 7 3.26875 407
2 7 5.215625 1030
2 7 5.653125 1170
2 7 6.90625 1571
7 13.5 7.1990625 50
7 13.5 13.296875 1551
15 20 15.20 65
15 20 19.696875 1504
2 13.5 2.100625 15
2 13.5 6.8875 681
2 13.5 7.203750 725
2 13.5 13.385 1585
7 20 7.195 25
7 20 13.3375 781
7 20 13.76 833
7 20 19.805 1577
5.
Tune
the sp
ectrum analyzer
center
frequency to
nd and
center
the
video
signal
on
the
oscilloscop
e.
(See
Figure
2-3
.)
Align
the
video input
with
the
trigger
output
at
cen
ter
screen.
2-14 Performance Tests
Swept Frequency Accuracy
Agilent 8360
