Agilent Technologies 83650B Service Guide

7.
RF Deck
Remov
al
Refer to
Figure 7-60
.
1.
Complete
\1.
Preliminary
Steps"
and
\7. J1
RF Output
Connector Remo
val"
before
con
tinuing.
2.
Disconnect
cable
W51
from
the
atten
uator.
3.
Remo
v
e
the
t
w
o
hex screws
from the
RF dec
k.

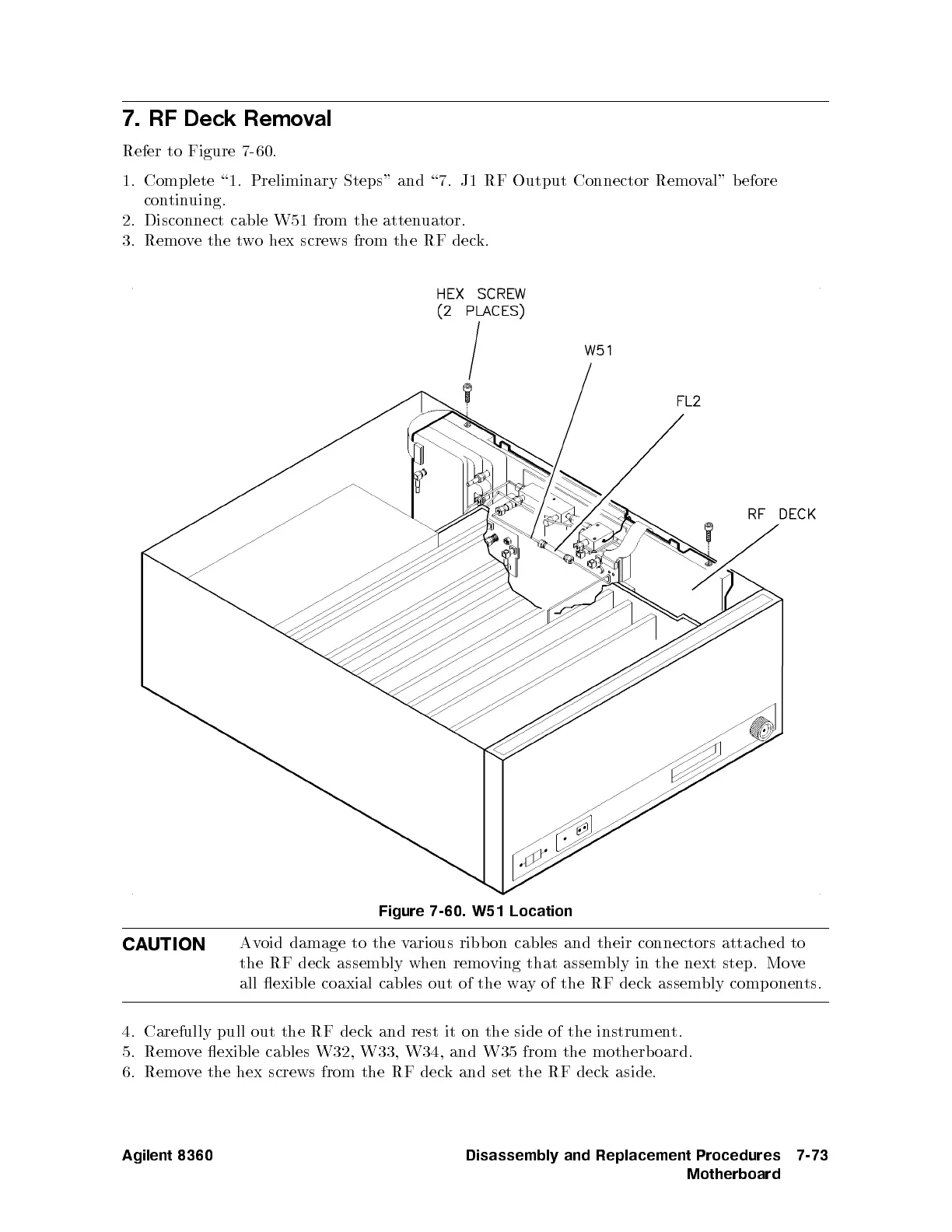

Figure 7-60. W51 Location
CAUTION
Avoid damage to the v
arious ribb on cables and their connectors attached to
the RF dec
k assem
bly
when remo
ving that assem
bly in the next step. Mo
ve
all exible coaxial cables out of the w
ay of the RF dec
k assem
bly comp onen
ts.
4. Carefully pull out the RF deck and rest it on the side of the instrument.
5. Remove exible cables W32, W33, W34, and W35 from the motherb oard.
6. Remove the hex screws from the RF deck and set the RF deck aside.
Agilent 8360 Disassembly and Replacement Procedures
Motherboard
7-73
