Accessories are available in these connector types:
7 mm, K-connector (2.92 mm), Type-N, 3.5 mm
(SMA-compatible), 2.4 mm coaxial, 7-16, WR-90
(X Band), WR-62 (P Band), WR-42 (K Band),
WR-28 (R Band)
For a complete list of Agilent’s coaxial and wave-
guide accessories, ask your Agilent sales represen-
tative for the RF & Microwave Test Accessories
Catalog (literature number 5968-4314E).
Calibration kits
Coaxial measurements
For coaxial measurements, Agilent offers two types
of calibration kits:
Economy, includes:
• open standards (male and female)
• short standards (male and female)
• fixed-termination standards (male and female)
• in-series adapters
Standard, includes the devices in the economy kit
and adds:
• sliding loads
• connector gages
Precision, includes the devices in the economy kit
and adds:
• 50 ohm airline for TRL calibration
• TRL adapters
• connector tools
Waveguide measurements
For waveguide measurements, Agilent offers
calibration kits that include:
• waveguide-to-coax adapters (X, P, K)
• precision waveguide section
• flush short circuit
• fixed terminations
• straight section
Electronic calibration
Agilent also offers electronic calibration systems.
These systems require an Agilent 85097A
interface kit and electronic calibration kit.
The calibration kit includes:
• highband ECal module
• torque wrench
• optional adapters
• optional lowband ECal module
Verification kits
All Agilent verification kits include:
• precision Z
0
airline
• mismatched airline
• fixed attenuators
• traceable measured data and uncertainties
Cables and adapter sets
Agilent offers cables in the following types:
• single cables in semi-rigid and flexible
• cable set in semi-rigid and flexible
There are also adapter sets available that protect
the test port and convert the port to the desired
connector interface. These kits contain:
• one male adapter
• one female adapter
To attain the best mechanical rigidity for device
connection, use a single cable and the appropriate
special adapter set. To attain the greatest flexibility
for device connection, use a cable set.

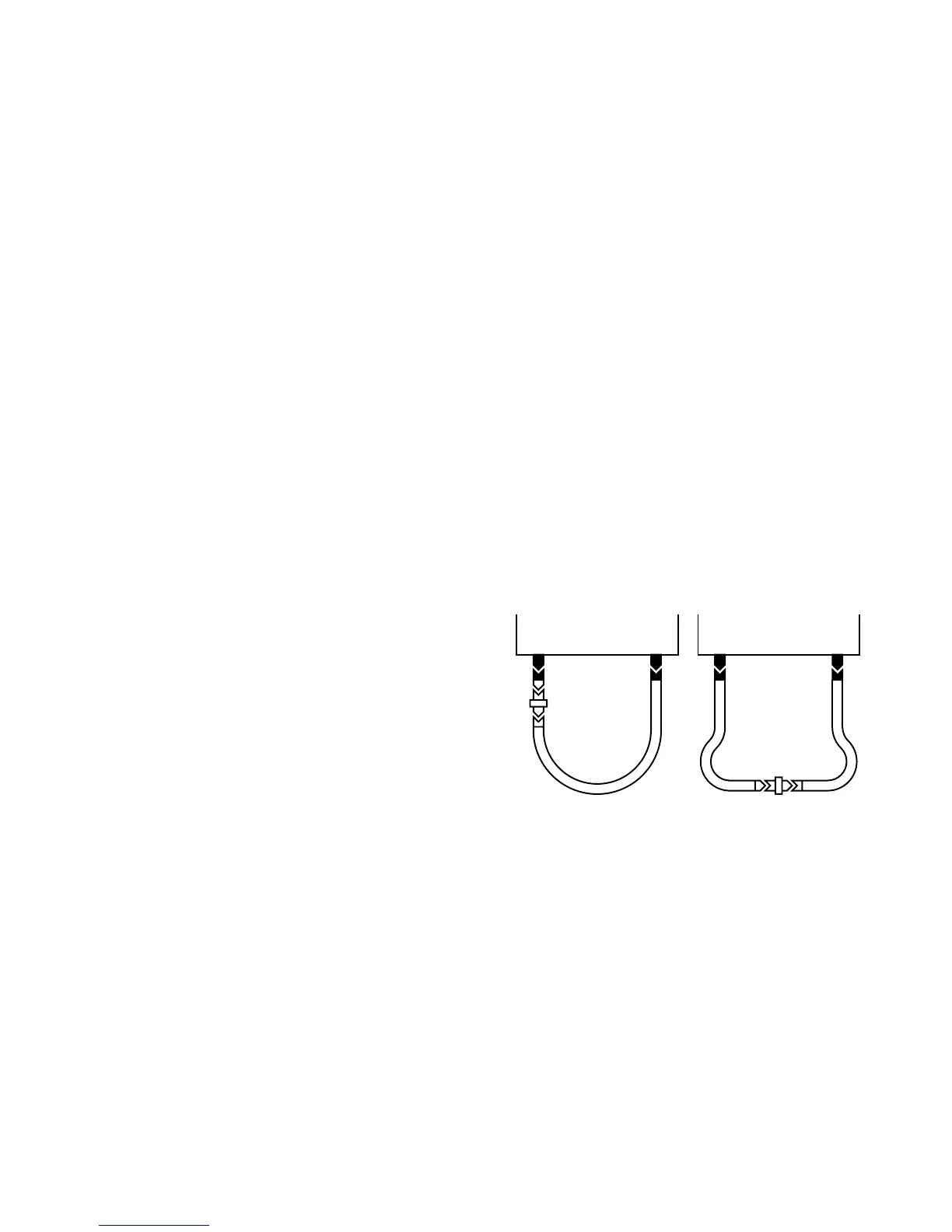

Measurement Accessories
Network analyzer
test set
Network analyzer
test set
Test port
adapter
Device
under
test
Single cable
Device
under
test
Cable set
